Low Temperature Socket Weld Forged Steel Flange 600LB A350 LF2 ASME B16.5
Low Temperature Forged steel flange 600LB Material A350 LF2 Socket-Weld Pipe Flange ASME B16.5

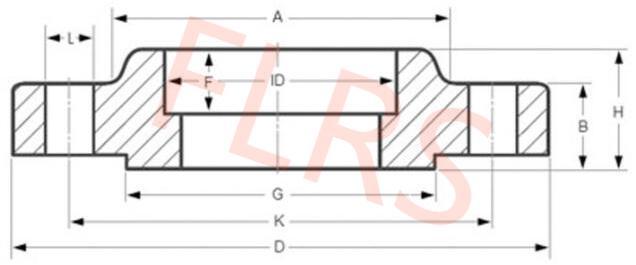

Socket welding flanges are typically used on smaller sizes of high pressure pipes. The pipe is inserted into the socket end of the socketweld flange and fillet weld is applied around the hub of the flange. The bore of the pipe and flange are both same therefore giving smooth flow characteristics. Socket Weld Flanges (SW Flanges) are similar to slip-on flanges in outline, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The Socket Welding Flange is attached to the pipe by a fillet weld around the hub of the flange.
The flange face is the surface area that hosts the gasket. The 6 available types of flange face are flat (FF), raised (RF), ring joint (RTJ), lap joint, male and female (M&F), tongue and groove (T&G). Flanges with different faces require different gaskets and shall never be mated to prevent leakage of the joint. RF and FF flanges may have different types of “finish” (i.e. roughness on top the surface): smooth, stock and serrated.
Flange Applications:
Water works, shipbuilding industry, petrol chemical & gas industry, power industry, valve industry,and general pipes connecting projects etc.
Flange technical parameters:
| Type | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-2500# |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABS1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410,1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
