Light Country Custom Thermostat with Brass Screw, Waterproof treatment.

1. About us Light Country.

Light Country was founded in 1985 in Taiwan.

We dedicate on Thermostat and Rocker switch for more than 35 years.

These parts are widely used in household appliance, office equipment, industrial facilities, medical devices.

To provide fatest respond, we provide one stop service with integration of RD, production, sales and post-sales.

Our factory already got ISO9001, ISO14001 certificate.

Our product already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.

We promise reasonable price, stable quality, timely delivery and superior service.

2. Light Country Custom Thermostat Parameters and Specification.

3. Attentions about Custom Thermostat installation.

1) When select electric thermostat, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal conduction and other factors, need to consider the following factors.

a. Detection part of temperature control.

b. Thickness and material of heat transfer component.

c. The power of the heating element.

d. Amount of heated medium.

e. Ambient temperature and air pressure.

2) During electric thermostat using process, need to avoid moisture and pollution, otherwise it will affect the electrical performance of the product. Recommended working environment is that relative humidity ≤90%, no contact with corrosive and flammable things.

3) During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermal switch polluted by the conductive medium.

4. FAQ about our Custom Thermostat.

Q1: How can we get a quote?
A: Please offer detail specification, such as operating temperature, case/bracket style, application, quantity etc.

Pictures are welcome for our reference.

Q2: How can we get a drawing?

A: After confirm the detail specification, we will provide the drawing for further check and approval.

Q3: What is the MOQ?
A: Normally the MOQ is 2,000 pcs.

Larger quantity could win better price.

We will support small quantity for test purpose.

Q4: What about the lead time?
A: samples would usually be done within 1 week.

For orders with long term forecast, lead time would be around 15~20 days.

Orders without forecast will take around 20~30days.

We will try best to shorten the lead time for urgent order.

Q5: Guarantee?
A: We offer 1 year guarantee.

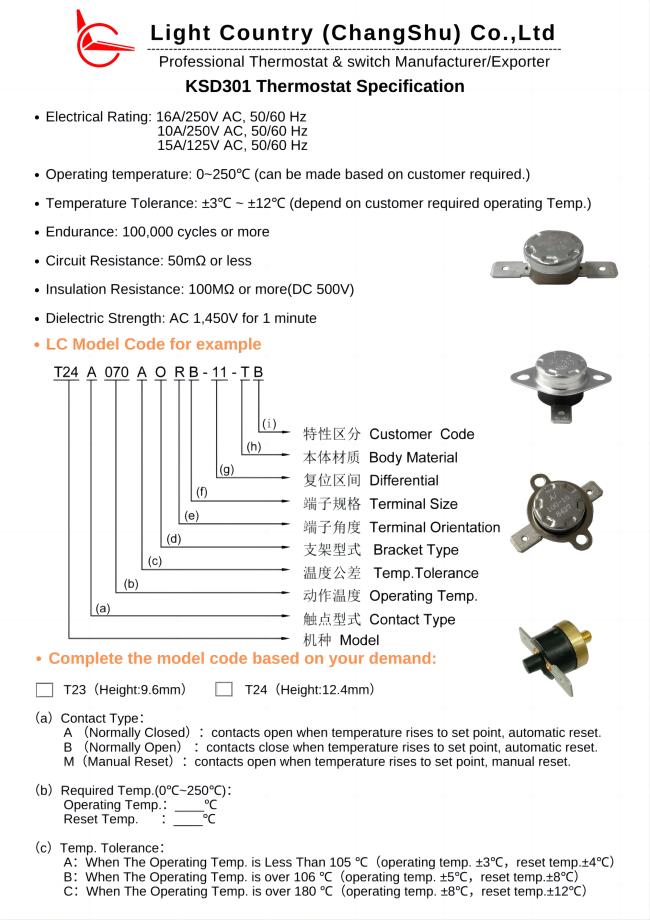

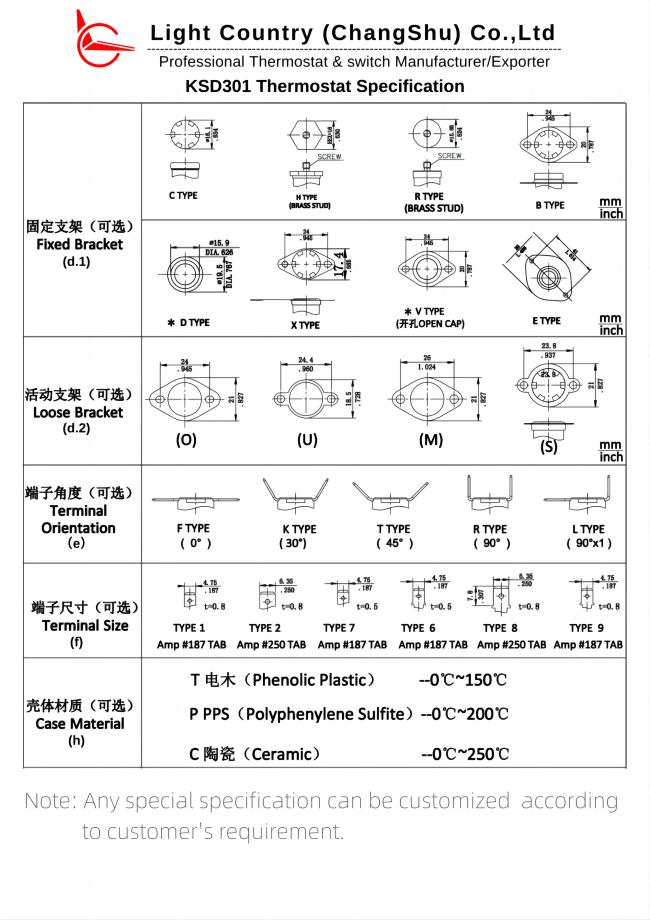

If this picture shows custom thermostat could not meet your demand, please refer to below KSD301 Thermostat Specification for more options, or share your detail requirements, we will support customized design and production.
