PA66/PC Housing Waterproof Power Switch, LC83 Series, Mechanical 30000 Cycles.
LC83 Series Waterproof Power Switch Endurance 30000 Cycles.
1. LC83 Waterproof Power Switch Series Specification.
* Safely approval: UL, CUL, VDE, ENEC
* Electrical rating: 10A/16A 125V, 10A/16A 250V AC,
* Mechanical life endurance: 30,000 cycles
* Electrical life endurance: 10,000 cycles
* Contract resistance: <20mΩ
* Insulation resistance: ＞1000MΩ
* Ambient temperature: T85/T105
* Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.
* Material of housing: PA66/PC
* Material of contacts: Silver alloy
* Material of terminal: Copper silver plated
* Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.
2. LC83 Waterproof Power Switch Panel Cut-out.
| Panel cut-out | ||
| Z | Y | X |
| 0.7~1.25[.028~.049] | 13.1~13.2[.515~.520] | 19.1~19.2[.752~.756] |
| 1.25~2.0[.049~.079] | 13.1~13.2[.515~.520] | 19.3~19.4[.760~.764] |
| 2.0~3.0[.079~.118] | 13.1~13.2[.515~.520] | 19.5~19.6[.768~.772] |

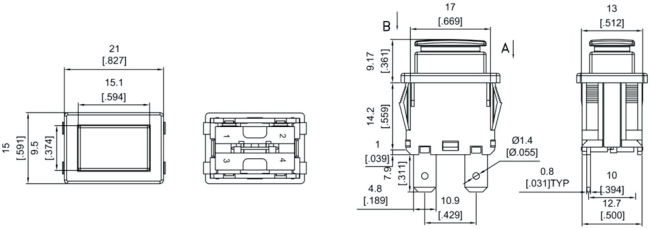

3. LC83 Waterproof Power Switch Dimension.
4. About us.
Light Country was founded in 1985 in Taiwan, we dedicate on Power Switch and KSD301 thermostat.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
