Factory Reliable RB DPDT Rocker Switch, 21*15mm, ON-OFF-ON, Black/Red, 6A 250V
Factory Reliable RB DPDT Rocker Switch, 21*15mm, ON-OFF-ON, Black/Red, 6A 250V
1. Light Country company introduction.
Light Country was founded in 1985 in Taiwan, two branch factories located in Dongguan and Changshu, China.
We have been focusing on rocker switch and thermostat.
They are broadly applied on household appliance, electrical parts, petroleum machinery, etc.
To provide best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factories already got ISO9001, ISO14001, IATF16949 certificates.
Our Switches already got UL/CUL, VDE, TUV, SEMKO, NEMKO and CQC certificates, comply with ROHS/REACH regulations.
We always put customer's satisfaction in the first place, and deserve the trust.
2. RB Rocker Switch Technical Data.
| Manufacturer | Light Country(Changshu)Co.,Ltd |
| Electrical rating | 6A 250V AC, 10A 125V AC |
| Product Size | 21*15mm |
| Installation Hole Size | 19*13mm |
| Mechanical life endurance | 30,000 cycles |
| Electrical life endurance | 10,000 cycles |
| Housing Color | Black(More color options are available.) |
| Housing Material | PA66 |
| Rocker(button) Color | Black(More color options are available.) |
| Rocker(button) Material | PA66/PC |
| Contacts | Silver alloy |
| Terminal material | Brass with silver plated |
| Dielectric Strength | >1500V/minute |
| Contact resistance | <20mΩ(initial) |
| Insulation resistance | ＞1000MΩ(500V DC between open contacts) |
| Ambient temperature | －10℃~ +85℃ |
| Atmospheric humidity | Max.85% |
| Actuating force | 6~8N |
| Flammability | UL 94V-2 |
| Solder ability of terminal | Max 350℃ 3s(no pressure can be placed on terminals when soldering by hand.) |
3. More RB Rocker Switch Function Options.
|
Item No |
Poles& Throws |
Rocker position | ||
| Left | Center | Right | ||
| RB3 | DPDT | ON | OFF | ON |
| RB6 | DPDT | (ON) | OFF | (ON) |
| RB8 | DPDT | (ON) | OFF | ON |
4. RB Rocker Switch Panel Cut-out and Dimension.

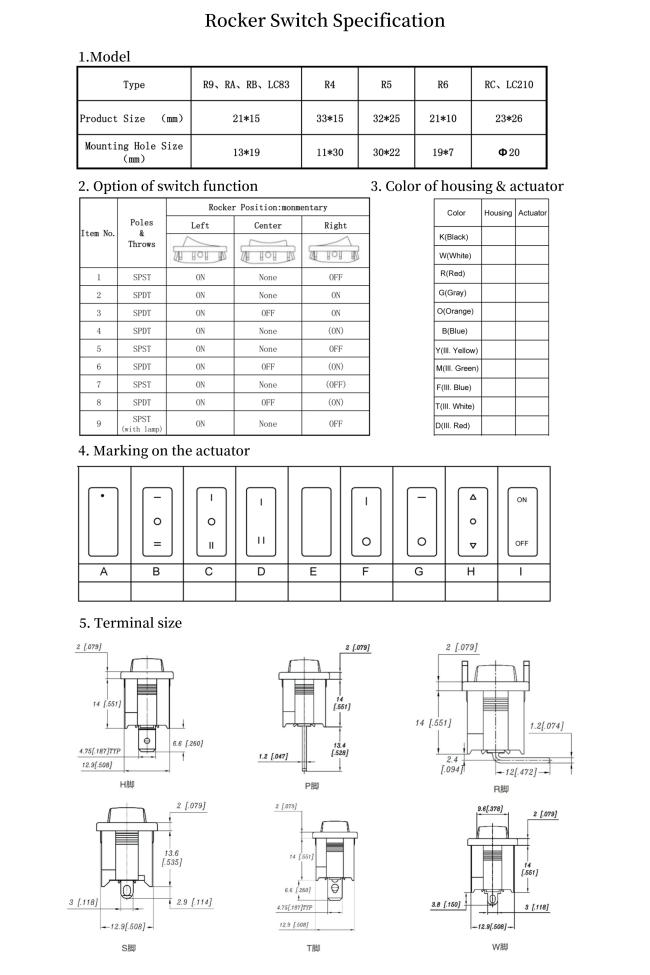

5. More Rocker Switch models are here as below specification summary, kindly check if anyone could meet your demand, and contact with us direclty, we will provide drawing and samples for further verification.
Thanks for your time, welcome contacting us via below ways,
Sales: Thomas Lee/Julie Liu
Tel: +86 138 6234 1050/+86 180 2126 2273
Mail: lixin@liangqundianzi.cn or ksd301@aliyun.com.cn
WhatsApp: +86 158 5080 2713
