Factory R3-2 ON-OFF Rocker Switch, 24*21mm, Black Housing, Red/Black Button, 20A 250V
1. Factory Introduction.
Light Country was founded in 1985, headquater located in Taiwan.
We have been dedicating on switch, our main products are thermostat, rocker switch, push button switch, water-proof switch, photoelectric switch, slide switch and rolling-ball vibration switch. These parts are widely used in household appliance, electrical products, office equipment, industrial facilities, medical devices and so on. They could be customized designed based on end-customer's demand.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well. We've got ISO9001, ISO14001, CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificate, comply with ROHS/REACH regulations.
We promise reasonable price, stable quality, timely delivery and superior service.
2. R3 ON-OFF Rocker Switch Specification.
| Factory | Light Country(Changshu)Co.,Ltd |
| Electrical rating | 20A 250V AC/125V AC, 16A 250V AC/125V AC |
| Product Size | 24*21mm |
| Installation Hole Size | 21.8*18.6mm |
| Mechanical life endurance | >30,000 cycles |
| Electrical life endurance | >10,000 cycles |
| Housing Color | Black(More options available, please contact us.) |
| Housing Material | PA66 |
| Rocker Color | Black/Red(More options available, please contact us.) |
| Rocker Material | PA66/PC |
| Contacts | Silver alloy |
| Terminals | Brass with silver plated |
| Contact resistance | <20mΩ |
| Insulation resistance | ＞1000MΩ(500DC between open contacts) |
| Ambient temperature | T105/55 |
| Ambient humidity | Max.85% |
| Actuating force | 3~8N(depend on different switch functions) |
| Flammability | UL 94V-2, UL 94V-0, glow-wire, needle flame test |
| Solder ability of terminal | Max 350℃, 3S (no pressure can be placed on terminals when soldering by hand.) |
3. R3 Rocker Switch Function Options.
| Item | Function |
| 1 | ON-OFF |
| 2 | ON-ON |
| 3 | ON-OFF-ON |
| 4 | ON-(ON) |
| 5 | OFF-(ON) |
| 6 | (ON)-OFF-(ON) |
| 7 | ON-(OFF) |
| 8 | ON-OFF-(ON) |
| 9 | ON-OFF(With Lamp) |

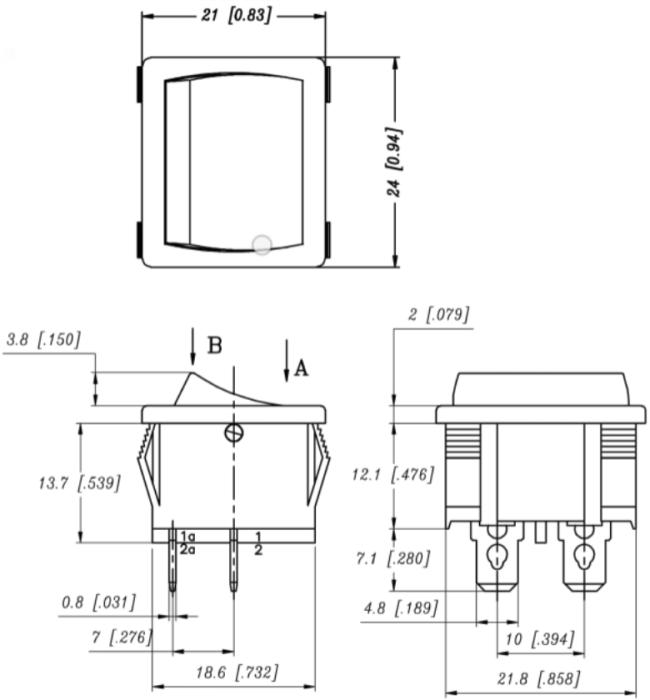

4. R3 Rocker Switch Dimension.

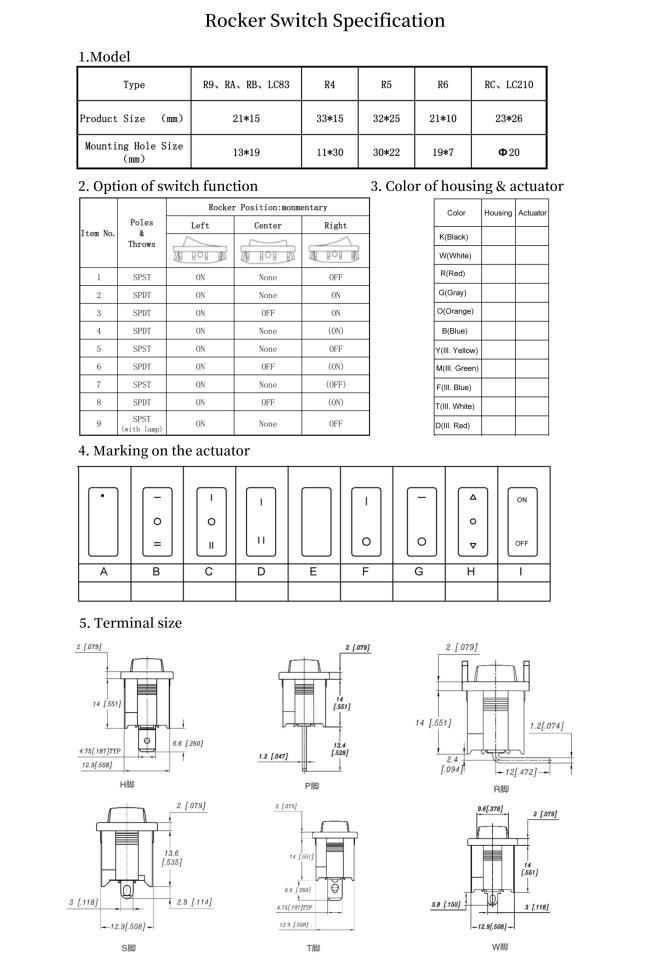

5. If the picture R3 Rocker Switches could not meet your demand, please turn to below "Rocker Switch specification" for more models.
