Good Quality Taiwan Brand R5 Rocker Switch, 32*25mm, ON-OFF, Red Lamp, 16A 250V
1. About us Light Country.
Light Country was founded in 1985 in Taiwan, Dongguan branch built in 1997, Changshu site in 2004.
We have been dedicating on rocker switch and thermal switches since the very start.
The switches are widely used in household appliance, auto industry, electrical facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
2. R5 illuminated rocker switch specification.
| Manufacturer | Light Country(Changshu) Co.,LTD |
| Model | R5 Rocker Switch |
| Electrical rating | 16A/20A/25A 250V AC, 20A 125V AC |
| Panel cut-out | 32*25mm |
| Mounting hole Size | 30*22mm |
| Mechanical life endurance | 30,000 cycles |
| Electrical life endurance | 10,000 cycles |
| Safely approval | UL, CUL, VDE, ENEC, CQC |
| Housing/Actuator color | Black |
| Lamp color | Red |
| Lamp voltage | 3V, 4V, 6V, 12V, 24V, 36V, 48V, 72V, 125V, 250V are available. |
| Housing Material | PA66/PC |
| Contacts Material | Silver alloy |
| Terminal Material | Brass with silver plated |
| Contract resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| Ambient temperature | T85/T105 |
| Fire rating | UL 94V-2. UL 94V-0. |
| Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when soldering by hand. |
3. How to order R5 Rocker Switch?
Rocker switch is a highly customized product, different customer might have different demand on switch function, mechanical appearance, installation method, Lamp color, lamp voltage and so on. Please refer to the normal choices as below, and share with us your demand. We always open mind to support customer for new design.
1) R5 illuminated rocker switch function option.
|
Item No. |
Poles/ Throws |
Rocker position | ||
| Left | Center | Right | ||
| R59 | DPST(with lamp) | ON | None | OFF |
2) R5 illuminated rocker switch dimension.

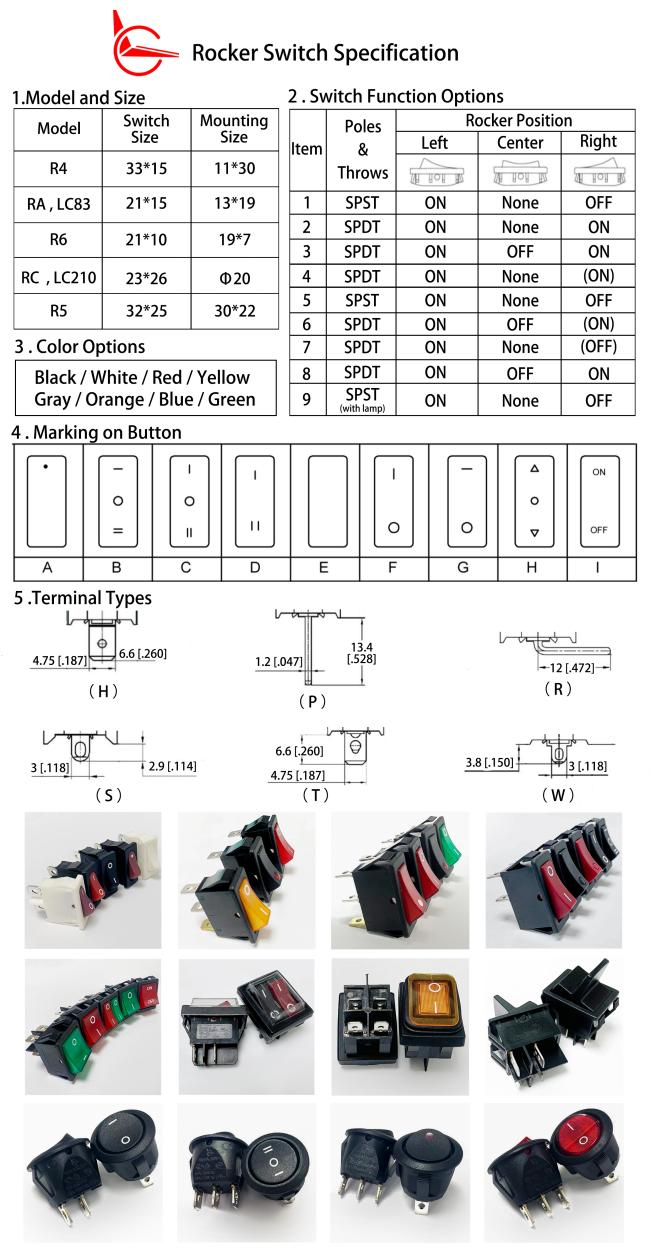

3) If above R5 rocker switch could not meet your demand, please refer to below simple specification, to find all our rocker switch common types, and check if anyone could fulfill your demand, we will appreciate if you can share the specification or product pictures if you need new design support from us.
Thanks for your time, please feel free to contact us via below ways,
Sales: Thomas Lee/Julie Liu
Tel: +86 138 6234 1050/+86 180 2126 2273
Mail: lixin@liangqundianzi.cn or julie.liu@liangqundianzi.cn
WhatsApp: +86 158 5080 2713
