Taiwan Light Country On Off illuminated Rocker Switch 10000 Cycles 16A 250V UL VDE

1. About us.

Light Country was founded in 1985 in Taiwan.

We dedicate on rocker switch and thermostat.

These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

Our factory already got ISO9001, ISO14001, IATF16949 certificates.

Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.

We promise high quality products, timely delivery, attentive service, effective improvements.

2. RA Series Specification.

 - Panel Size: 21*15mm

 - Mounting Hole size: 13*19mm

 - Safely approval: UL, CUL, VDE, ENEN, CQC, KC

 - Switch Electrical rating: 6A/10A 250V AC, 10A/15A 125V AC

 - Lamp Voltage: 12V, 24V, 240V...

 - Mechanical life endurance: 30,000 cycles

 - Electrical life endurance: 10,000 cycles

 - Contract resistance: <20mΩ

 - Insulation resistance: ＞1000MΩ

 - Ambient temperature: T85/T105

 - Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.

 - Material of housing: PA66

 - Material of contacts: Silver alloy

 - Material of terminal: Copper silver plated

 - Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.

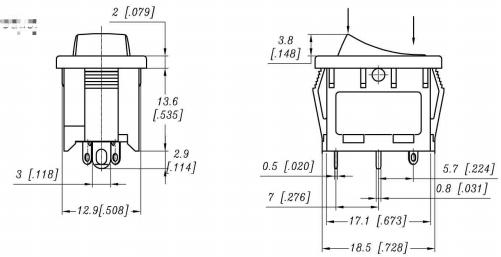

3. Dimension.

4. More Switch function options.

5. Circuits for switch with LED.

6. More Terminal types for reference.
