Lamp Rocker Switch, RC, Round, Blue LED, ON-OFF printed, 3 terminals, 15A 125V.
Lamp Rocker Switch, RC, Round, Blue LED, ON-OFF printed, 3 terminals, 15A 125V.
1. Factory Light Country Introduction.
Light Country was founded in 1985 in Taiwan, two factory sites located in Changshu and Shanghai, China.
We dedicate on snap action thermostat and rocker switch.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
2. Lamp Round Rocker Switch Specification.
| Rocker Switch Brand | Light Country |
| Electrical rating | 6A/10A 250V AC, 10A/15A 125V AC |
| Product Size | Φ 23mm |
| Installation Hole Size | Φ 20mm |
| General Tolerance | >10±0.4, <10±0.25(mm) |
| Mechanical life | >30,000 cycles |
| Electrical life | >10,000 cycles |
| Housing Color | Black(More are available, please contact us.) |
| Housing Material | PA66 |
| Button Color | Blue(More are available, please contact us.) |
| Button Material | PA66/PC |
| Contact Material | Silver alloy |
| Terminal material | Brass or Copper(Silver plated) |
| Dielectric Strength | >1500V 1 minute |
| Contact resistance | <20mΩ(initial) |
| Insulation resistance | ＞1000MΩ(500V DC between open contacts) |
| Temperature rise at the terminal | Max.30℃ |
| Solder ability of terminal | Max 350℃ 3s(no pressure can be placed on terminals when soldering by hand.) |
| Applicability for appliance of class | Class Ⅱ |
| Proof tracking resistance index(PTI) | 175 |
| Degree of pollution | Normal |
Any Cd, Pb, Hg etc and it's compounds is not include in this product.
3. RC Lamp Rocker Switch function.
|
Item No |
Poles& Throws |
Rocker position | ||
| Left | Center | Right | ||
| RC9 | SPST with lamp | ON | None | OFF |

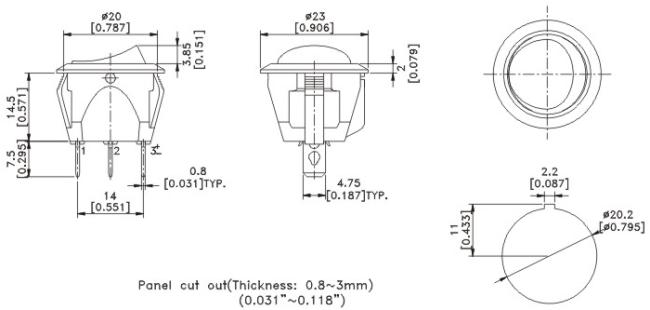

4. RC Lamp Rocker Switch Dimension.
5. Circuits of RC Lamp Round Rocker Switch.

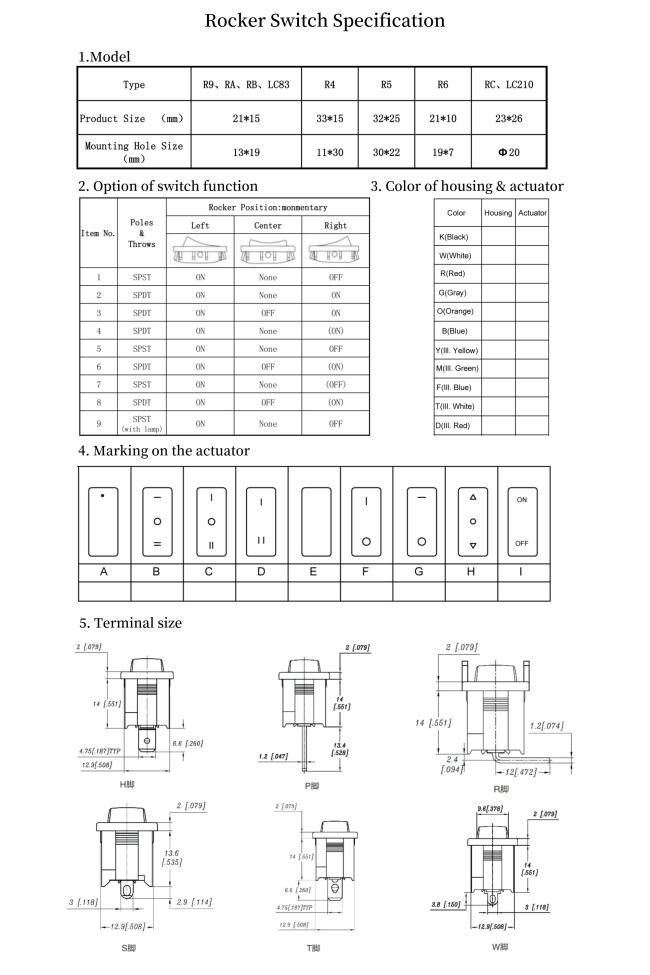

6. More Switch options as below, please check which model type could meet your demand, or share us your product pictures, specification, so that we can find the right one quickly.
