Factory Light Country RAWP-2 Black Water-proof ON-OFF Rocker Switch

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 35 days

Brand: LC

Product Description

1. About us.

Light Country was founded in 1985 in Taiwan.

We dedicate on rocker switch and thermostat.

These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.

To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.

Our factory already got ISO9001, ISO14001, IATF16949 certificates.

Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.

We promise high quality products, timely delivery, attentive service, effective improvements.

2. Water-Proof Rocker Switch Specification.

Safely approval	UL, CUL, VDE, ENEN
Electrical rating	6A/10A 250V AC, 10A/15A 125V AC
Mechanical life endurance	30,000 cycles
Electrical life endurance	10,000 cycles
Housing and Actuator color	Black. White, Red, Gray, Yellow are also available.
Contract resistance	<20mΩ
Insulation resistance	＞1000MΩ
Ambient temperature	T85/T105
Storage temperature	-10℃~85℃
Fire rating	UL 94V-2. UL 94V-0. Glow-wire, needle flame test.
Material of housing	PA66
Material of Rocker	PA66
Material of contacts	Silver alloy
Material of terminal	Copper silver plated
Solder ability of terminal	Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.
Actuating force	5~8N(depend on different switch functions)

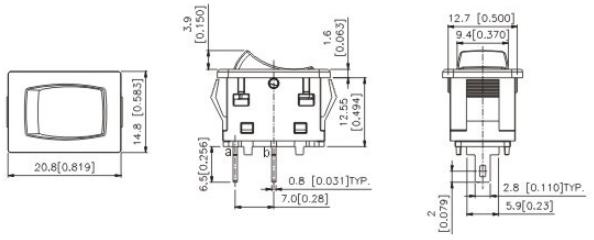

3. Dimension

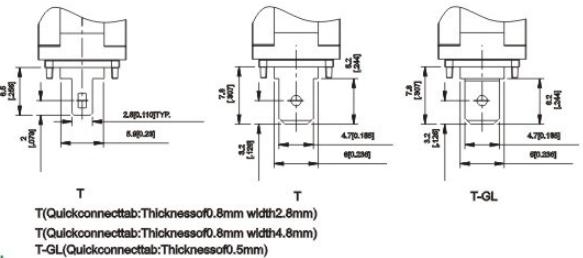

4. Switch function option.
