Light Country T24 KSD301 Bimetal Snap Disc Thermostat Round or Hexagonal Screw Copper head Automatic Reset PPS case

KSD301 Thermostat is a small bimetal snap action thermal protector with shell. Action principle is that the component bimetal disc jump at the change of temperature, the contact point can be closed or opened rapidly to connect or disconnect the circuit.

1. Parameters:

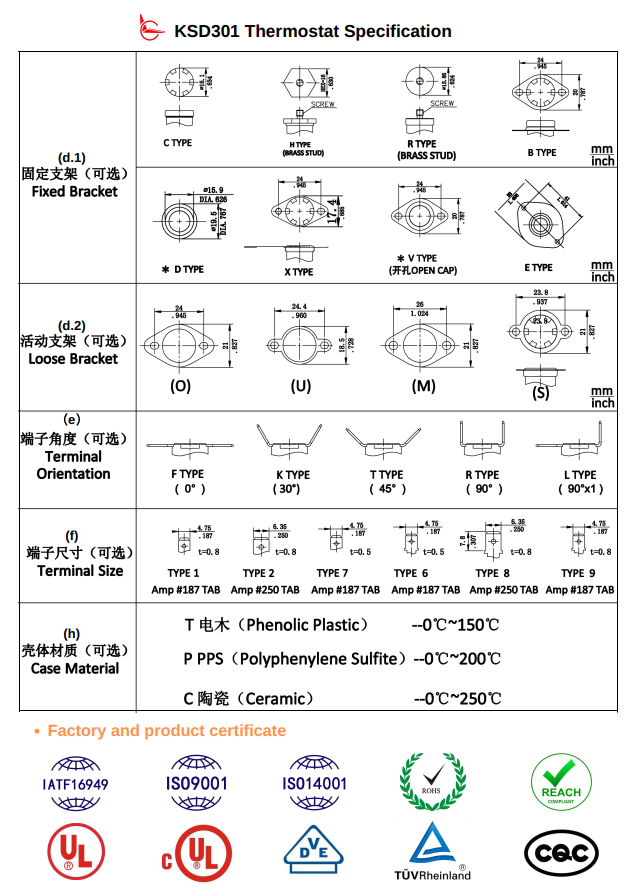

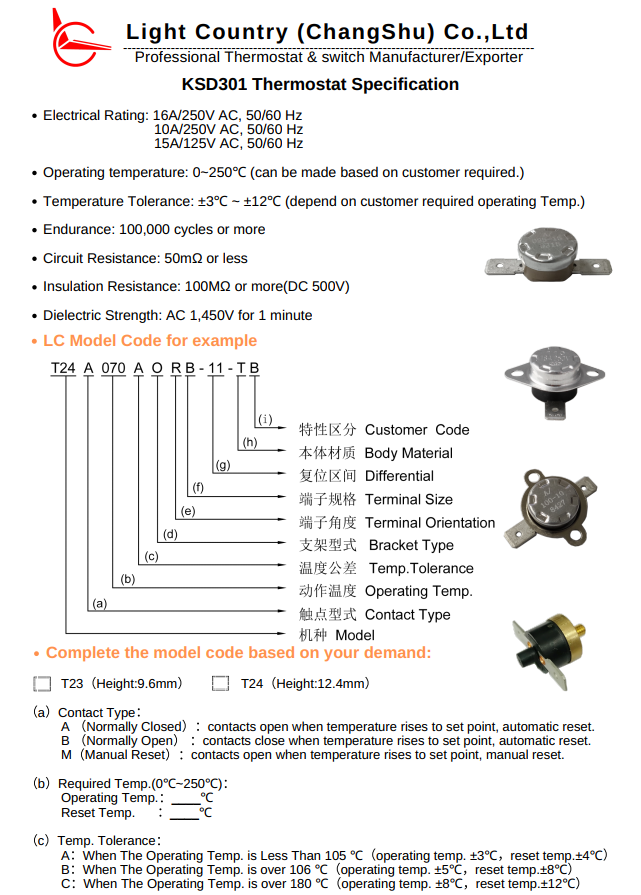

Kindly find if anyone in pictures could meet you demand. If not, please refer to below simple KSD301 Thermostat Specification, find the style you want, or kindly provide the detail requirements, we will do customized production for you.

2. Attentions about KSD301 Bimetal Snap Disc Thermostat installation:

 1). When select thermostat, need to confirm the accurate temperature. To avoid temperature changes caused by thermal inertia, thermal        conduction and other factors, need to consider the following factors.

    a. Detection part of temperature control.

    b. Thickness and material of heat transfer component.

    c. The power of the heating element.

    d. Amount of heated medium.

    e. Ambient temperature and air pressure.

 2). During using process, need high attention to avoid cracks caused by the large force on the case inside, and liquid penetrates into the thermostat. Keep the case clean to prevent the insulation performance from decreasing or even short circuit breakdown after the thermostat polluted by the conductive medium.

 3). Thermostat shall be installed with cap connected with the grounding metal parts or the power grounding wire of the equipment to reduce the electromagnetic radiation and interference signals of the complete machine.

3. FAQ.

 Q1: How can we get a quote?
  A: Please offer the specification of the product, such as operating temperature, case/bracket style, application, quantity etc. Picture or drawing  are welcome for our reference.

 Q2: How can we get a drawing.

  A: After confirm the detail specification, we will provide the drawing via E-mail, WhatsApp, Wechat and other ways.
 Q3: What is the MOQ?
  A: Normally our MOQ is 1000 pcs. Larger quantity could win lower price.
Q4: What about the lead time?
  A: For KSD301 Thermostat sample making, it usually takes around 7~10 days. As for purchase order production, lead time would be around 35 days. We will try best to support to shorten the lead time if any urgent order.
Q5: Guarantee?
  A: We offer 1 year guarantee.

Q6: Package carton dimension.

  A: For 1000pcs, use 38*29*25mm carton.

  For 2000pcs, use carton with 56*38*25mm, or 41*30*21mm.
