Single Drum Hydraulic Industrial Electric Winch Multipurpose For Lifting Equipment
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 days after receiving deposit
Brand:
SILENCE
Product Description
Single drum 1 ton/2 tons/3 tons hydraulic winch for tractors/anchor/excavator/shrimp boat/fishing net
Product description:
Silence brand 1 ton(2200 lbs) ~50 tons(110000 lbs) hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.
Our whiches can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.
Technical parameters
| Model | Torque(N×M) | Reduction ratio | Wire rope winding layer | Output revolution(r/min) | Minimum wire rope diameter(mm) | Brake opening pressure(Mpa) | Total weight(kg) |
| 1T-3T | 1912 | 6 | 4 | 44.5 | 11 | 0.8-1.5 | 40-45 |
| 5T | 2266 | 5 | 4 | 66 | 11 | 0.8-1.5 | 70 |
| 6T | 2421 | 7 | 4 | 49 | 11 | 0.8-1.5 | 90 |
| 8T | 3200 | 22.5 | 4 | 53 | 11 | 0.8-1.5 | 125 |
| 10T | 3560 | 25 | 4 | 47 | 11 | 0.8-1.5 | 125 |
| 12T | 5318 | 30 | 4 | 63 | 11 | 0.8-1.5 | 125 |
| 16T-25T | 9000-12000 | 36-42 | 4 | 60 | 11 | 1.5-2 | 135-180 |

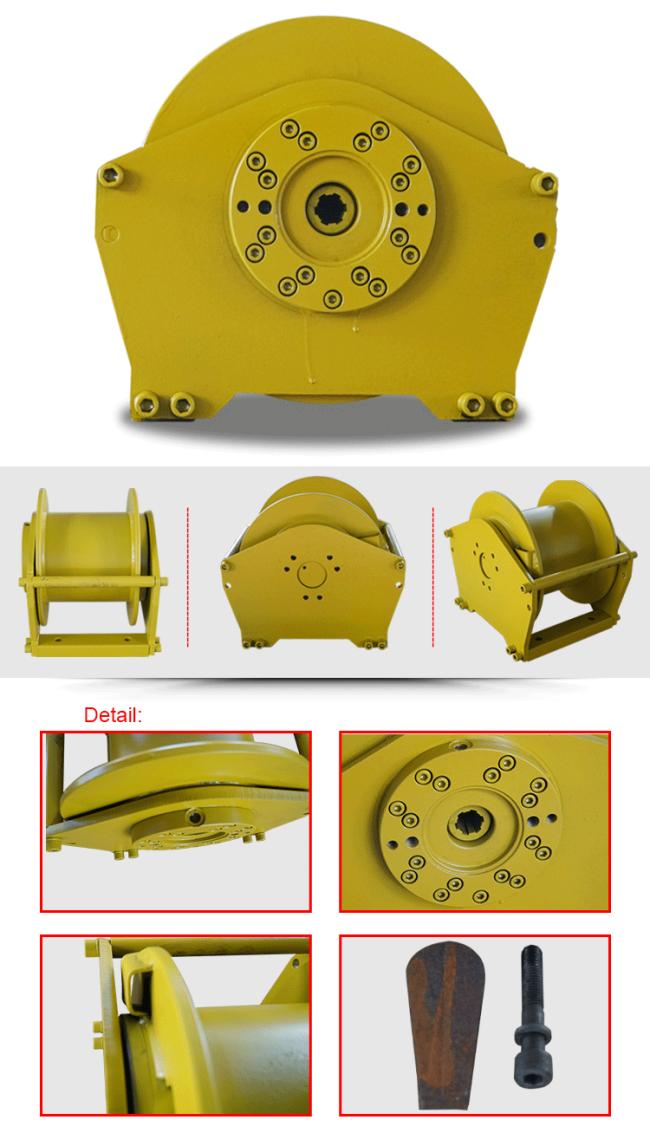

Product display
