Steel Lifting Forged Hook 2 Ton G80 Chain Pulley Hoist
2 Ton Manual Chain Lever Pulley Hoist Lift Engine Block Build Construction Hoist
Product details
1.Forged Hook
Forged top and bottom hook with the high strength.
Bigger hook opening and fit for more requirements. All hooks are made of high quality alloy steel and forged.
2.Thick Cover
Thick cover with convex rib process, protect the inside parts effectively.
High quality alloy, steel lifting chain, with the accurate transmission and high strength. Brake in double pawl, increase the safety factor in 2 times.
3.G80 Chain and Hook
≤3T Chain Block products are with single chain, it increases the lifting efficiency in 25 times.
The special design in body make the hand pulling force lighter 1/3.
The lifting chain is made of high quality alloy steel, and the broken is in 4 times.
4.Nylon Hand Wheel
The compact design protect the products from the pollution.
Double pawl braking system, with reinforcing rib handle and the thicken steel plate.
5.Rubber Handle Cover With Screw Fixed
Super small size, light weight and easy to take , material in low alloy steel plate, safe and durable.
6.Chain Guide And Manual Direction Handle
Low alloy steel construction.
With compact design, the special short handle design, made of high quality, anti-rust alloy steel. 360 degree rotating hooks with the safety tongue.
Features:
1. Hanging transposition and load hooks made of anti-aging, high- strength alloy, when the case of overload occurs in the case of the first
deformed without sudden breakage.
2. Hook with a solid safety lock, free rotation 360
3. In line with the design of the body of the handle to make the gourd easy to operate.
4. Closed design can protect the internal components from pollution.
5. Automatic double-pawl braking system.
6. The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.
Use of environmental conditions:
Operating temperature range: -40°C to + 60°C
Use of the environment: please use below 100%RH, can't be used in water
Use of materials: no use of anti-spark material or asbestos and other special materials.
Don't overload use.
Product Parameter
| Model | HSH-0.25A | HSH-0.5A | HSH-0.75A | HSH-1.5A | HSH-3A | HSH-6A | HSH-9A | |
| Capacity load (t) | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift (m) | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load (t) | 0.375 | 0.75 | 1.125 | 2.25 | 3.75 | 7.5 | 11.25 | |
| Effort to rated capacity (N) | 160 | 240 | 280 | 310 | 320 | 340 | 360 | |
| NO. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Diameter of load chain (mm) | 4 | 5 | 6 | 8 | 10 | 10 | 10 | |
| Dimensions (mm) | a | 95 | 108 | 155 | 180 | 215 | 215 | 215 |
| c | 90 | 105 | 135 | 155 | 200 | 200 | 330 | |
| Net weight (KG) | 3.6 | 6 | 6.5 | 11 | 20 | 33 | 43 | |
| Extra weight per meter of extra lift (kg) | 0.3 | 0.5 | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |

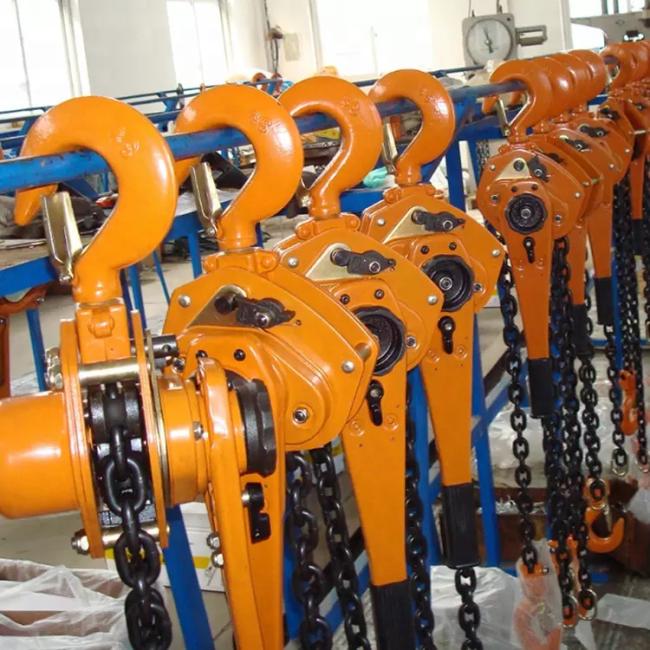

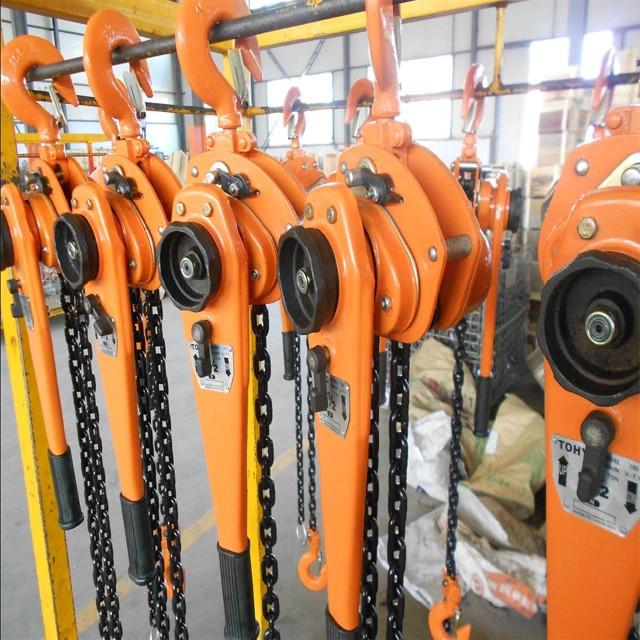

Workshop scene
Shipping and packaging
