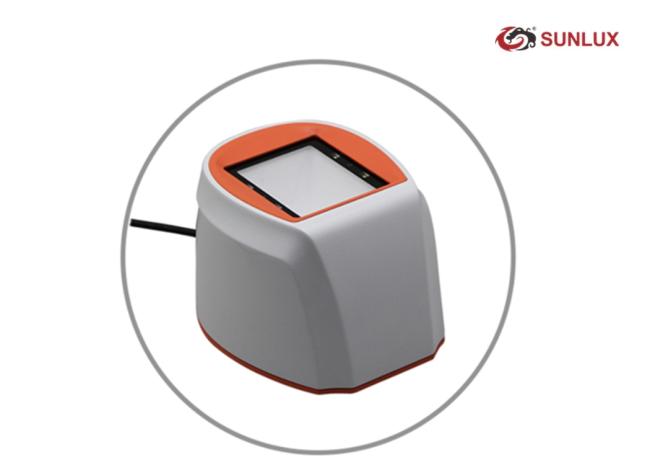

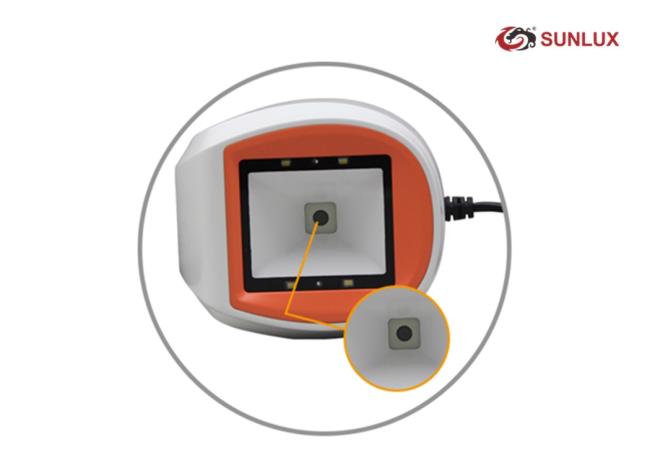

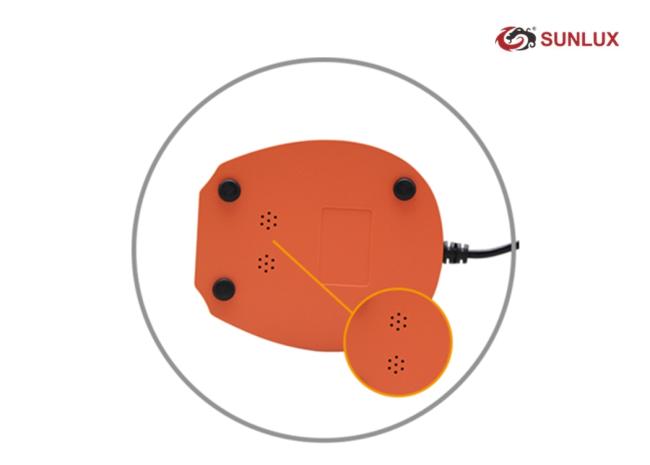

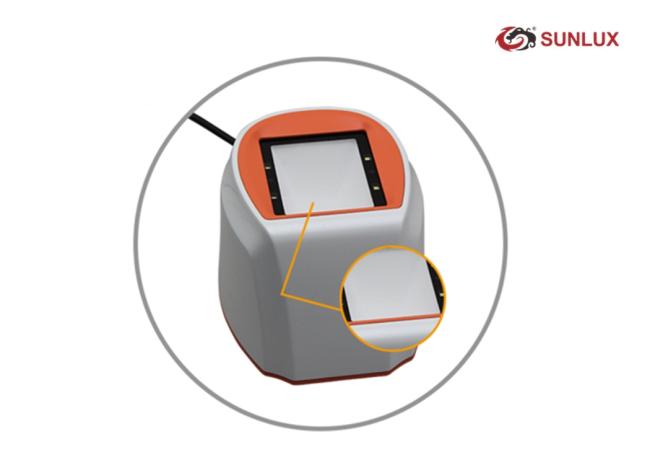

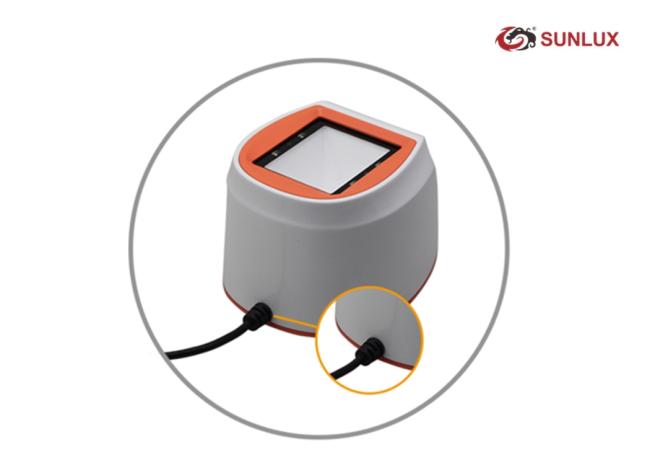

Desktop Type Tax Barcode Scanner CMOS Image Sensor For Alipay Wechatpay
1. With auto sensing in Alipay,Wechat pay.
2. Delivers effortless and accurate reading of barcodes.
3. Capable of reading 1D&2D barcodes printed on paper.
4. Capable of reading 1D&2D barcodes off mobile phones.
5. Applications at Mobile Payment,POS system.
| Model Number | XL-2300 |
| Image Sensor | CMOS |
| Image Size | 640x480 |
| Light Source | White light,LED |
| Minimum Resolution | ≥4mil Precision |
| Scanning Angle |
Roll:360°, Skew: ±40°, Pitch: ±300° Viewing angle:Horziontal:70°,Vertical:50° |
| Scan Mode | Sense |
| Interface | RS232,USB |
| Size | L × W × H:115mm ×98mm × 79mm |
| Weight | 185g |
| Indicator | Voice: adjust tovolume and tone |
| Voltage | 5 VDC±5% |
| Current(Working) | 108mA (typical value),114mA (Maximum value) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5%-95%(RH) |
| Light Levels | 0-100,000Lux |
| Drop Test | 2m |
| Decoding Capability | 1D:EAN-13,EAN-8,UPC-A,UPC-E,ISSN, ISBN, Codabar, Code 128(FNC1/FNC2/ FNC3),Code 93, ITF-6, ITF-14,Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14),Code 39(Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey , etc. 2D:PDF417, Data Matrix, QR Code, Chinese sensible code,etc |
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
