Industrial Electrical High Voltage Disconnect Switch / Outdoor Disconnect Switch

Price Negotiable

Price: Negotiation

MOQ: 1 Piece/Pieces

Delivery Time: Negotiable

Brand: XK

Product Description

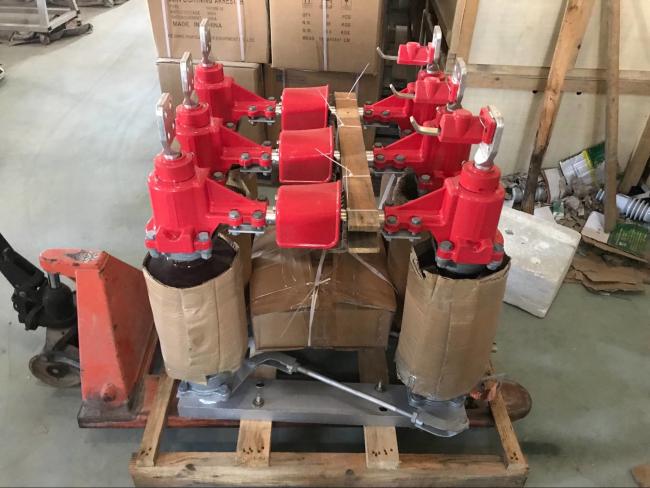

XK Hot sale 40.5KV outdoor H.V. disconnecting switch GW4 isolator switch

Hot sale 40.5KV outlinedoor H.V. disconnecting switch

Product Description

Disconnectors can be classified into various types based upon their constructional features and mounting arrangement. The major types of disconnectors are:

Centre-break disconnectors
Double-break disconnectors
Pantograph disconnectors
Horizontal break knee disconnectors
These are selected based upon the sub-station layout, clearances available and space constrains.

Item			Unit	Data
Rated voltage			KV	40.5/72.5/126
Rated lnsulating level	1min power fequncy voltage withstand	To earth	KV	95/140/230
		Fracture	KV	115/160/245
	lmpulse voltage withstand	To earth	KV	185/325/550
		Fracture	KV	215/375/630
Rated frequency			HZ	50
Rated current			A	630/1250/1600/2000
Rated short time current withstand			KA	20/31.5/40/40
Rated peak current withstand			KA	50/80/100/100
Rated short circuit cont.current:Mian/earth blade			S	4/2

Rated teminal mechanical load		Vertical	N	750/1000
		Horizontal	N	500/750
		Vertical Force	N	750/1000
Creepage distance			MM	1013/1256,1813/2248,3150/3906
Mechanical life			Times	2000
Manual operating mechanism	Model			CS17,CS17G
	Voltage of control circuit		V	AC220 DC110 DC220
Electic operating mechanism	Voltage of motor		V	AC380 DC220 DC220
	Voltage of control circuit		V	AC220 DC110 DC220
