Corrugated 3-5 Ply Cardboard Box Shredder Cutting Machine Cut Carton Into Mesh
Price:
negotiated
MOQ:
1 set
Delivery Time:
40 days after deposit
Brand:
SOOME
Product Description

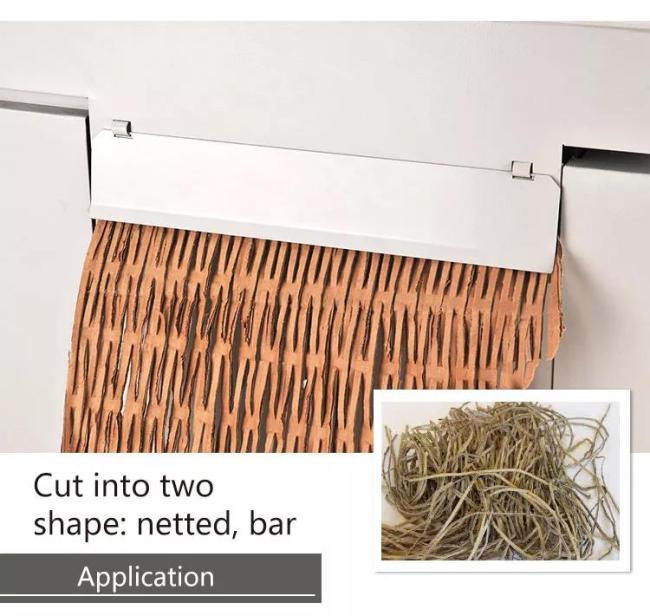

YD-425-PQJ Corrugated Cardboard Box Cutting Machine Cut The Carton Into Mesh
Description:

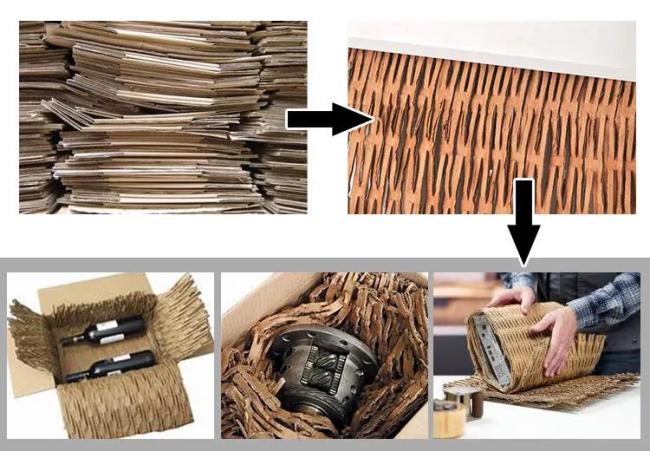

YARDO Cardboard box shredder is a new developed environmental product. It produces packing filler
materials by using old cardboard boxes, save money on packing material and help the environment by
recycling.
2. Technical index:
|
Item No
|
YD-PQJ325
|
YD-PQJ425
|
YD-PQJ320
|
|
Feed Width
|
325mm
|
425mm
|
320mm
|
|
Cutter Feed Height
|
14mm
|
20mm
|
12mm
|
|
Packing Mat Grid
|
5*60mm or 5mm Strip cut
|
5*100mm or 5mm Strip cut
|
5*60mm or 5mm Strip cut
|
|
Packing Mat Grid
|
3-5 ply Box or 30-40 paper A4/70g
|
5-7 ply Box or 40-70 paper A4/70g
|
3-5 ply Box
|
|
Cutting Speed
|
8 m/min
|
12 m/min
|
5 m/min
|
|
Noise Level (db)
|
60
|
60
|
60
|
|
Power Supply
|
220V /50Hz
|
380V/50Hz
|
220V
|
|
Motor Power
|
1.8KW
|
2.8KW
|
600W
|
|
Net Weight
|
88Kg
|
164Kg
|
45KG
|
|
Dimension
|
W500*D355*H800mm
|
W700*D680*H970mm
|
W465*D328*H265
|
Principle of the machine structure:
The machine is driven by a motor through a chain belt and gear drive, which
drives the knife shaft to interact to complete the cutting task. Therefore when
operating
must be operated in accordance with the operating rules and regulations. In order
to avoid accidents.
Operating instructions for the machine:
Switch on the main switch and turn the main switch in a clockwise direction. The
machine will then
The machine will start to run, at which point the material can be fed into the
paper inlet at the required size. (in a well-ventilated working environment)
