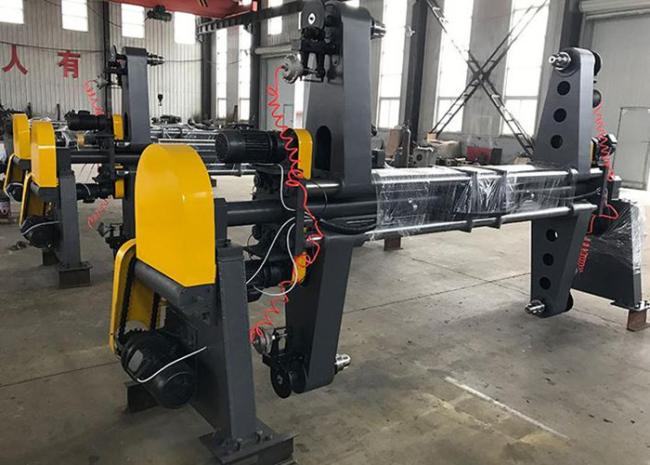

1600mm Electric Shaftless Mill Roll Stand For Corrugated Paperboard Production Line

Summarize

Electric mill roll stand is Symmetrical structure, can carry two craft paper at one time, which can work without brake.Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure.

General Features

QUALITY: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .

Structural Feature

1. Maximum Paper Roll Diameter: 1600mm
2. Maximum Support Weight: 2000kg
3. The sturcture is double rotary shaft with four arms; Support two paper mill rolls on both arms at the same time.
4. Round-plate type manual brake, the web tension is adjusted any time.
5. Arm clamp and rotary structure set fixed torque clutch, operate safety.
