2 Layers Corrugated Cardboard Production Line Single Facer Speed 100 M/Min

Summarize

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

Shaftless Mill Roll Stand

1. Backstands action mode:mechanical electric operation

2. The range of paper jams:maximum:1800mm minimum:600mm

3. The diameter of paper jams:maximum:φ1400mm minimum:φ400mm

4. Unilateral maximum load:maximum2000Kg

5. Powered motor parameters:

    Paper jams motor 550W*4 sets 380V 50HZ short(S2)working standard

    Lift motor 1.5Kw 380V 50HZ short(S2)working standard

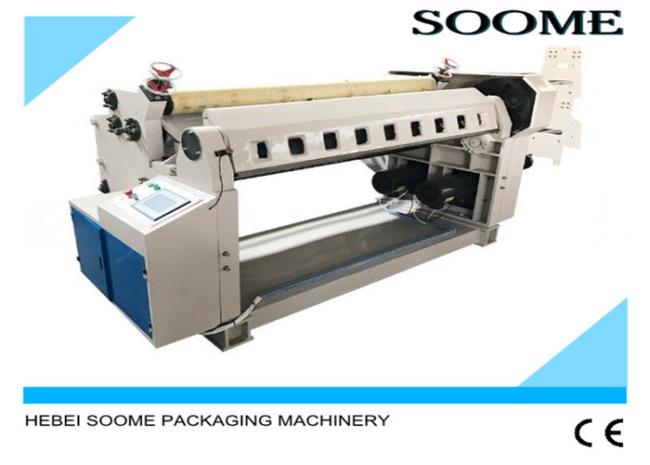

Single Facer

1. Effective width:1800mm

2. Operation direction:left or right(determined in accordance with customer plant)

3. Design speed:100m/min working speed:80m/min

4. Temperature range:200—260℃

5. Corrugated flute:(UV type or UVV type)

6. Diameter of corrugated roller: φ280mm

7. Diameter of pressure roller:φ284mm

8. Diameter of glue roller: φ216mm

9. Diameter of preheat roller: φ320mm

10. Main drive motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard.

11. Suction motor:7.5Kw;rated voltage:380V 50Hz;Continuous (S1) working standard.

Sheet Cutting

1. It can save 200 sets of orders, replace the cutting specifications quickly and accurately, non-stop for a single, and can achieve computer networking, easy production management.

2. Knife shaft drive gear with eccentric shaft installation, to achieve no backlash drive, high transmission accuracy.

3. Cross-cutting knife with inserts steel blade. Fixed blade blade flat structure, more stable, more suitable for cutting high weight and high toughness of cardboard, the shear force is small, long blade life.

4. Pull paper roller outsourcing non-slip material, more wear-resistant, accurate size.

5. Post base and wall panels with high-grade gray cast iron, high strength, strong anti-vibration.

6. Servo controller control motor drive, 5.7 inch color touch screen display, the project at a glance.

7. Cutting length: 300mm-9000mm, cutting accuracy: ± 1.5mm (steady speed).
