2200mm 7.5kw Kraft Carton Paper Roll Hydralic Mill Roll Stand Machine

1. Summarize

The symmetric structure of hydralic mill roll stand machine can be installed at the same time two bundles of paper tube, can be used as a non-stop machine for paper work.
Hydralic mill roll stand machine, the use of hydralic original clamping, loosening, moving, centering, left and right translation and other actions;

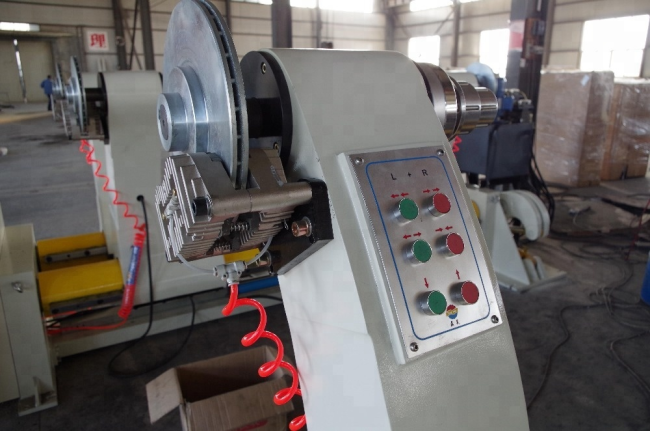

The butterfly disc system for hydralic mill roll stand machine is used for brake adjustment.
With double level automatic expansion type paper clip, clip head is three inches in the hydralic mill roll stand machine.

2. Features and Characteristics

1) Maximum Paper Roll Diameter: φ1500mm
2) Effective Width: 900mm-2200mm

3) Maximum Support Weight: 3t

4) Main Axis: φ242mm

5) The Structure is Double Rotary Shafts with Four Arms

6) Support Two Paper Mill Rolls on both Arms at the Same Time

7) Hydraulic Control for Paper Mill Roller Up-down, Clamp-open and Centering

8) Web Tension Controlled by Pneumatic Brake or Manual Brake

9) Tapered Center, Stretch Center and Springiness Chucks are Optional

3. Technical Parameters
