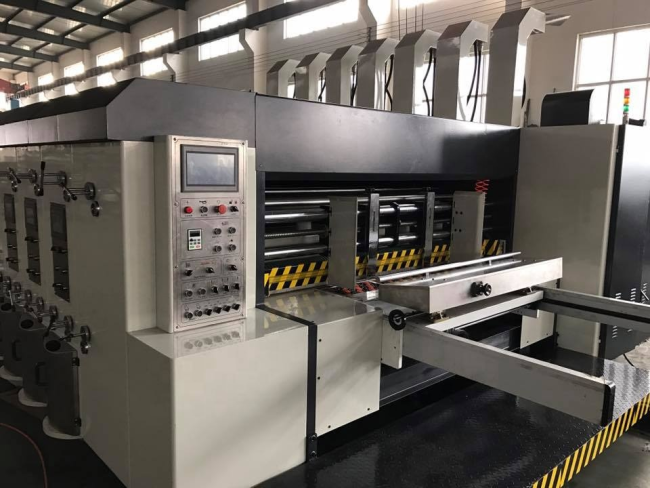

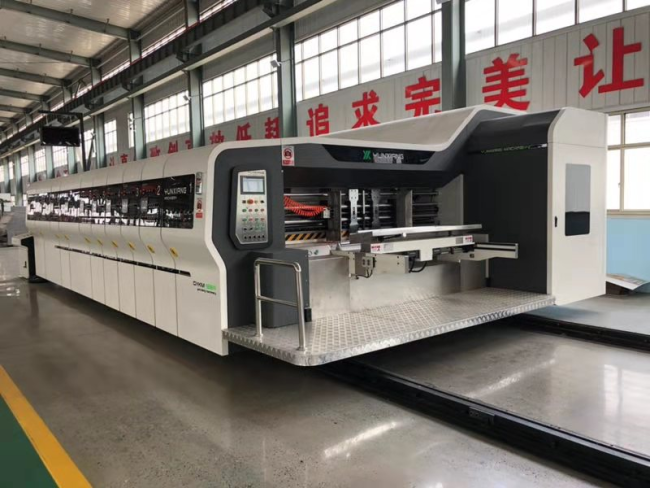

Pizza Die Cutting Slotting Gluing Cardboard Flexo Corrugated Box Printing Machine
What function of Automatic corrugated box uv flexo printer slotter die cutter machine?
1. Vacuum sucking.
2. Electrical adjustment of grooving phass with data displayed.
3. 360 degree adjustment of grooving phases with data displayed.
4. Intergrated adjustment of carbon box grooving clearance and pressing trace clearance.
5.The mid blade is move able, which makes processing of over-sized boxes easy.
6.The axis handles possessionas as a result of grinding chromate treatment.
7.Central filling of lubricant on 45# forged gears makes low noise and stable running.
8.Non-bond joining ensures long-term accurately.
9.The option of using hole-punching and hand-hole making is provided.
10.Top-quality paper separating and grooving blades are used.
11.Lighting system makes operation at night comfortable.
12.Schneider electric appliances and imported bearings are used.
13.PLC control with Human-machine-interface.
Technological Parameter:
| Max speed | 250 |
| Max stack height(mm) | 350 |
| Min stack height(mm) | 80 |
| Push out quantity (max) | 30 |
| Push out quantity (max) | 10 |
| Max sheet size(mm) | 1200x2400 |
| Max sheet size (mm) | 350x750 |
| available sheet | A,B,C,E,A+B,B+C,B+E |
Main model and specification:
| Machine speed | 130piece/min |
| Max sheet size | 1200x 2400mm |
| Min sheet size | 750x 320mm |
| Available sheet |
3and 5ply cardboard thickness less than 9mm |
Feeding-unit:
1. Lead edge feeding type.
2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.
3. Front baffle can be electrically adjusted with scale on it, easily understood.
4. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.
5. Clutch of the machine is controlled electrically. With alarm.
6. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality
7. Skip feeding device with continuous feed or spacing feed options.
