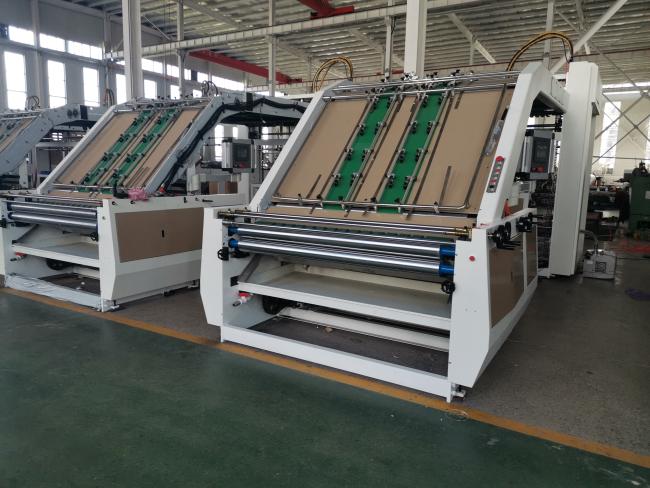

Touch Screen 5 Ply Flute Laminator Laminating Of Corrugated Cardboard
Laminating Of Cardboard And Corrugated Cardboard Flute Laminating Machine
Function and characteristic:
1. Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .
2. The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
3. Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
4. The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.

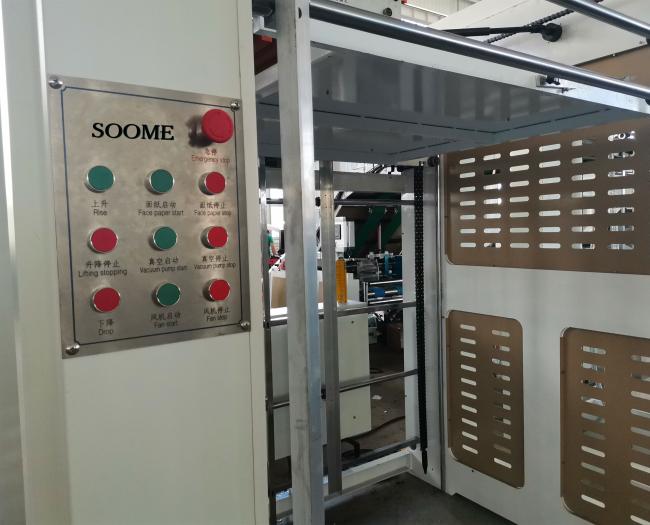

5. Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
6. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
Technical index:
| Model | HL-1300A-Ⅲ | HL-1450A-Ⅲ | HL-1550A-Ⅲ | HL-1650A-Ⅲ |
|
Max laminating size |
1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
|
Min laminating size |
400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min |
|
Bottom paper thickness |
A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness | |||
|
Surface paper gram weight |
150-600 g/m2 | |||
