Anodic Alumina Vacuum Generator MSV With Blow Flow Adjustment Function
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Negotiatable
Brand:
AMILA
Product Description
Multistage Vacuum Generators Vacuum Ejectors MSV With Back Blow Function
1.Introduction and application
- Equipped with level 3 vacuum tubes, XI vacuum tube provides high vacuum degree.
- Suitable for adsorption and self-adhesive products.
2.Design
- Main material is anodic alumina.
- The sealing element is made of NBR rubber.
- With back blow function.
- With back blow flow adjustment function.
3.Technology Data
| Type | Maximum vacuum | Maximum suction force | Air consumption | Operating pressure | weight | Operating temperature |
| [%] | [l/min] | [l/min] | [bar] | [g] | [℃] | |
| MSV10 | 88 | 86 | 36 | 5 | 350 | -10…80 |
| MSV25 | 91 | 168 | 120 | 5 | 490 | -10…80 |

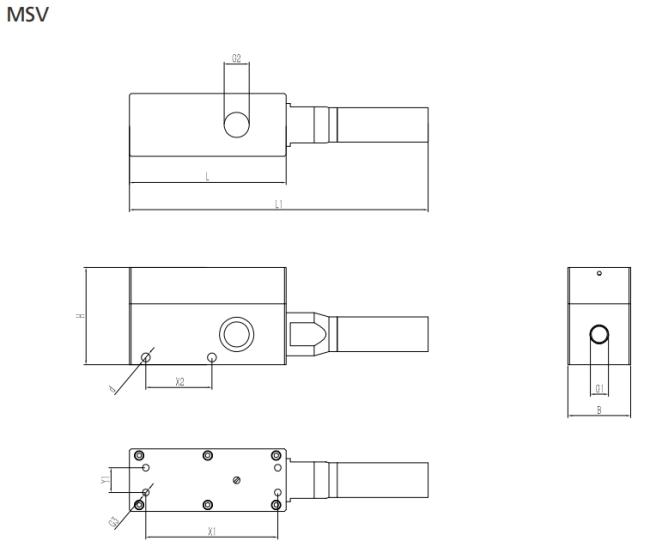

4.Design Date
| type | size(mm) | ||||||||||
| B | D | G1 | G2 | G3 | H | L | L1 | X1 | X2 | Y1 | |
| MSV10 | 30 | 5.5 | G1/8-F | G1/4-F | M4-F | 44 | 72 | 129 | 57 | 28 | 10 |
| MSV25 | 38 | 5.5 | G1/4-F | G3/8-F | M5-F | 59 | 95 | 181 | 80 | 40 | 15 |
