Stainless Steel And Brass Vacuum Cup Fittings For Handling Sensitive Workpieces MTA
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Cup Fittings Spring Buffer Strut MTA Stainless Steel With Brass
1. Introduction and application:
- Spring plunger with two damping springs for handling of workpieces with differing heights, such as curved metal sheets,etc.
- Handle pressure sensitive workpieces (such as glass) to ensure flexible contact
2. Structure
- Spring plunger consisting of a high strength rod made of galvanized steel, guide sleeve (3) and upper (2) and lower (5) damping springs;
- The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
- Thread for suction cup is always a external thread (6);
- Two lock nuts for attachment (4).
3.Technology Data:
| Type | Spring load rate | Spring pretension | Spring force | Vertical load | Horizontal load | Weight | Operating temperature |
| 【N/mm】 | 【N】 | 【N】 | 【N】 | 【N】 | 【g】 | 【℃】 | |
| MTA G1/4-AG-25-M20 | 0.711 | 8.95 | 17.8 | 2400 | 800 | 185 | 0...80 |
| MTA G1/4-AG-50-M20 | 0.262 | 14.1 | 20.6 | 2400 | 490 | 210 | 0...80 |
| MTA G1/2-AG-25-M30 | 3.828 | 25.65 | 73.5 | 4900 | 1870 | 493 | 0...80 |
| MTA G1/2-AG-50-M30 | 1.81 | 3.95 | 49.2 | 4900 | 1200 | 539 | 0...80 |
| MTA G1/2-AG-90-M30 | 1.072 | 24.38 | 75.3 | 4900 | 730 | 645 | 0...80 |

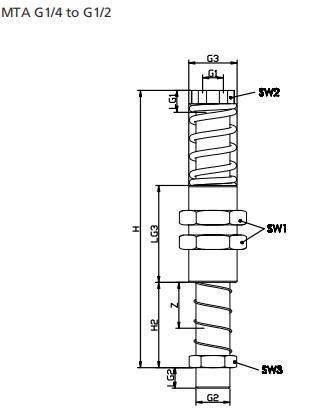

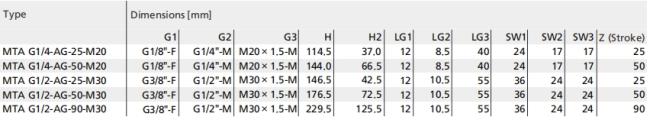

4.Design Data
