Universal Adjustable Holder MTR-UNI Anodized Aluminum Material Quick Installation
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Cup Fittings Universal Adjustable Holders MTR-UNI Aluminum Material
1. Introduction and application
- Universal holders allow quick installation of vacuum components onto the load beam with a variety of connectors
- Adjustable height and inclination for flexible adaptation to workpieces.

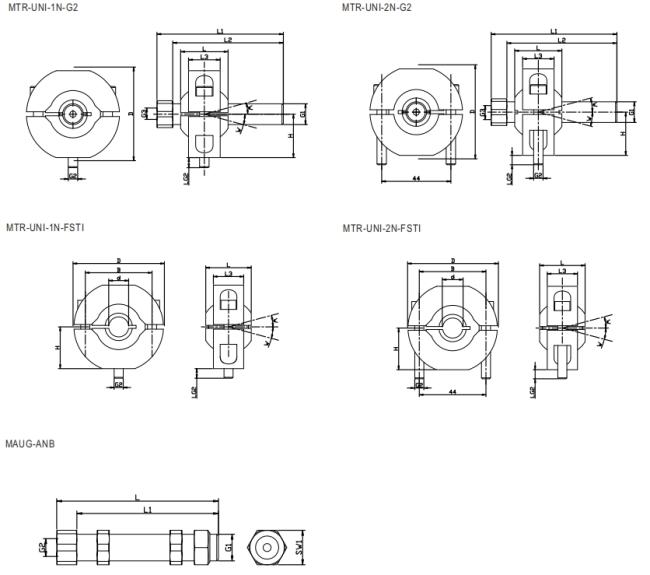

2.Structure
- Holder made of high strength anodized aluminum, consisting of holder tube (2), ball clamp (3) and various adapters for mounting of square and round tubes;
- Threaded tube (5) has a G1/4“ thread at the bottom for a suction cup and a G1/4“ thread at the top (1) for connection of a vacuum line or an inline ejector;
- Pipe line or installation of linear vacuum generator;
- Including securing screws (4);

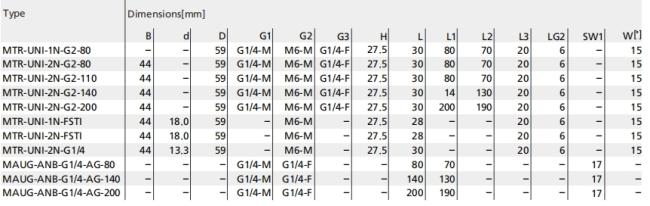

3.Design Data:
***Note:1N( One Slider) 2N(Two Slider) G2(Connection thread)
