High Efficiency Rubber Vacuum Gripper For Rough Application Conditions ATC B20
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Foam Vacuum Gripper Large Area Built-in Rubber Suction Cups ATC B20
1. Technical Data:
| Type | Number of suction holes | Air consumption | Maximum suction capacity | Maximum vacuum | Suction force | Weight |
| 【I/min】 | 【I/min】 | 【%】 | 【N】 | 【kg】 | ||
| ATC-SVK 258 5R36 B20 | 34 | 180 | 1050 | 60 | 113 | 3 |
| ATC-SVK 278 5R36 B20 | 35 | 180 | 1050 | 60 | 116 | 3.3 |
| ATC-SVK 294 5R36 B20 | 39 | 180 | 1050 | 60 | 130 | 3.6 |
| ATC-SVK 420 5R36 B20 | 55 | 180 | 1050 | 60 | 180 | 4.5 |
| ATC-SVK 508 5R36 B20 | 69 | 270 | 1190 | 60 | 230 | 4.9 |
| ATC-SVK 618 5R36 B20 | 84 | 270 | 1350 | 60 | 270 | 5.4 |
| ATC-SVK 816 5R36 B20 | 110 | 360 | 1600 | 60 | 360 | 8 |
| ATC-SVK 978 5R36 B20 | 130 | 450 | 2700 | 60 | 430 | 9.1 |
| ATC-SVK 1212 5R36 B20 | 165 | 540 | 2940 | 60 | 540 | 10.6 |
| ATC-SVK 1410 5R36 B20 | 194 | 630 | 3180 | 60 | 630 | 12 |
| ATC-SW 258 5R36 B20 | 34 | 180 | 820 | 60 | 87 | 2.9 |
| ATC-SW 278 5R36 B20 | 35 | 180 | 860 | 60 | 89 | 3.2 |
| ATC-SW 294 5R36 B20 | 39 | 180 | 900 | 60 | 100 | 3.5 |
| ATC-SW 420 5R36 B20 | 55 | 180 | 1050 | 60 | 140 | 4.4 |
| ATC-SW 508 5R36 B20 | 69 | 270 | 1190 | 60 | 175 | 4.8 |
| ATC-SW 618 5R36 B20 | 84 | 270 | 1350 | 60 | 210 | 5.3 |
| ATC-SW 816 5R36 B20 | 110 | 360 | 1600 | 60 | 280 | 7.9 |
| ATC-SW 978 5R36 B20 | 130 | 450 | 2700 | 60 | 330 | 9 |
| ATC-SW 1212 5R36 B20 | 165 | 540 | 2940 | 60 | 420 | 10.5 |
| ATC-SW 1410 5R36 B20 | 193 | 630 | 3180 | 60 | 490 | 11.9 |

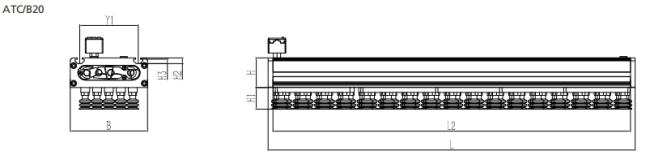

2. Deaign data:
| Type | Dimensions(mm) | |||||||
| B | H | H1 | H2 | H3 | L | L2 | Y1 | |
| ATC-SVK 258 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 258 | 242 | 98 |
| ATC-SVK 278 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 278 | 262 | 98 |
| ATC-SVK 294 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 294 | 278 | 98 |
| ATC-SVK 420 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 420 | 404 | 98 |
| ATC-SVK 508 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 508 | 492 | 98 |
| ATC-SVK 618 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 618 | 602 | 98 |
| ATC-SVK 816 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 816 | 800 | 98 |
| ATC-SVK 978 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 978 | 962 | 98 |
| ATC-SVK 1212 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 1212 | 1196 | 98 |
| ATC-SVK 1410 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 1410 | 1394 | 98 |
| ATC-SW 258 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 258 | 242 | 98 |
| ATC-SW 278 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 278 | 262 | 98 |
| ATC-SW 294 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 294 | 278 | 98 |
| ATC-SW 420 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 420 | 404 | 98 |
| ATC-SW 508 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 508 | 492 | 98 |
| ATC-SW 618 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 618 | 602 | 98 |
| ATC-SW 816 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 816 | 800 | 98 |
| ATC-SW 978 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 978 | 962 | 98 |
| ATC-SW 1212 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 1212 | 1196 | 98 |
| ATC-SW 1410 5R36 B20 | 130 | 50 | 38 | 9.7 | 7.7 | 1410 | 1394 | 98 |
