NBR Bellows Vacuum Cups Special For Metal Plate , Oval Suction Cups MAOB
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vaccum Suction Cups Special For Metal Plate Oval Bellows Suction Cup MAOB
1. Introduction and applicaton
- Rapid handling of long,narrow metal parts, such as metal sheets and reinforcing ribs for interior decoration, etc.
- Handling of thin sheet metal without deformation or deep drawing.
- For use in automated handling system for stamping lines in the automotive industry.
- The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during the handling process, ensuring accurate positioning of the workpiece in the press.
2. Structure
- Robust,wear-resistant oval bellows suction cup MAOB made of NBR with single sealing lip,special slot and inner support design;
- Vulcanizing fixed the suction cup and the joint (high strength);
- Suction cup available with various connection types;
3. Technology data
| Type | Suction Force | Pull-off force | Lateral force | Lateral force oily surface | Volume | Workpiece radius min |
| [N] | [N] | [N] | [N] | [cm3] | [mm] (Convex) | |
| MAOB 60x30 NBR-60 | 38 | 55 | 57 | 52 | 9.6 | 30 |
| MAOB 80x40 NBR-60 | 65 | 100 | 100 | 95 | 20.6 | 40 |
| MAOB 110x55 NBR-60 | 110 | 185 | 180 | 161 | 50.8 | 50 |

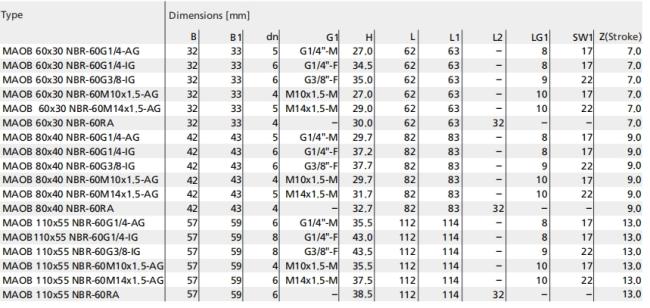

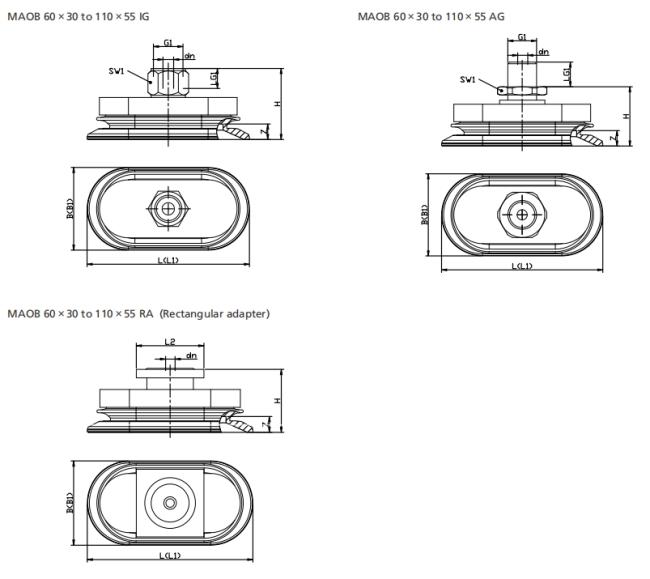

4.Design data
