Vacuum Flat Suction Cup , TPE 70 Material Air Suction Cup For Packaging
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Suction Cups Special For Packaging Flat Gripper MF With TPE 70 Material
1. Introduction and applicaton
- Round flat suction cup suitable for carton handling and packaging machinery;
- Handling of cardboard and rigid packaging in top or side;
- Suitable for palletizing and demolition;
- Strong and wear-resistant suction cup, excellent sealing performance, suitable for high load applications;
2. Structure
- Round flat suction cup MF (1) with soft, flexible sealing lip and reinforced structure on the cup surface;
- Made of wear-proof material TPE-70；
- The joint of suction cup with a diameter of 30mm is Plug-in threaded joint;
- The 40mm diameter suction cup connector consists of two parts:machine-side component (2) and suction-side component (3);
- Clip-in filter screen (4) as pre-filter (filter pore size 250 µm);
- All externally threaded joints are equipped with O-rings;
3.Technology Data
| Type | Suction Force | Pull-off force | Lateral force | Volume | Workpiece radius min |
| [N] | [N] | [N] | [cm3] | [mm](Convex) | |
| MF-20 TPE-70 SC040 | 16 | 19.2 | 10.5 | 1 | 25 |
| MF-30 TPE-70 SC040 | 29.5 | 35.3 | 22.5 | 2.3 | 45 |
| MF-40 TPE-70 SC050 | 49.5 | 62.5 | 25 | 5.1 | 75 |
| MF-50 TPE-70 SC050 | 74.2 | 87.4 | 44 | 7.9 | 100 |

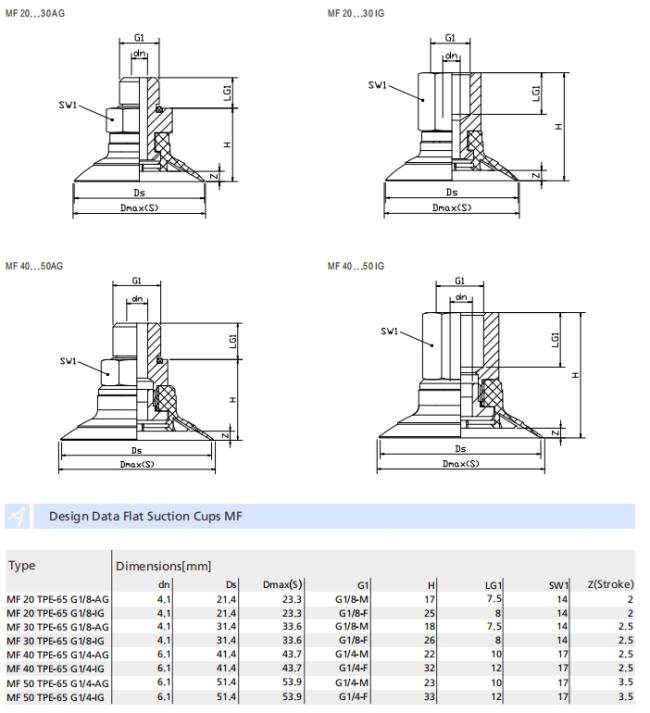

4.Design data of flat Suction Cup MF

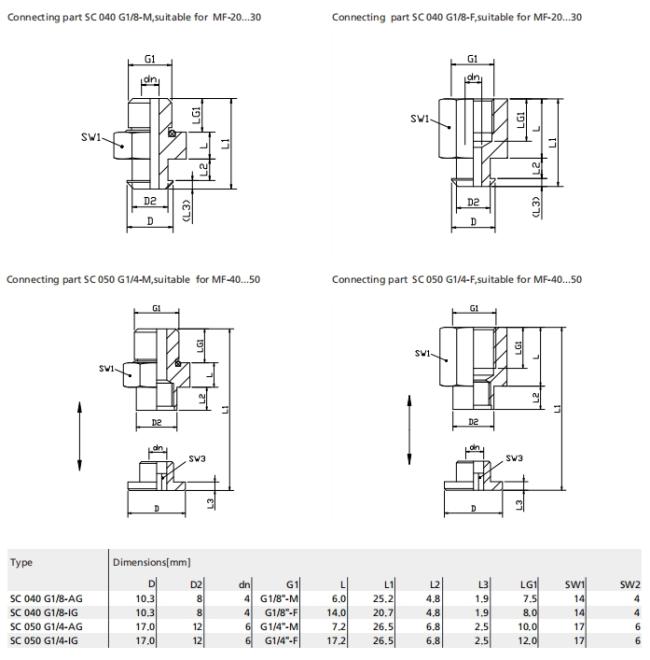

5.Design data of Connecting parts
