Antistatic Vacuum Suction Cups PFG With Plug In Threaded Connection Nipple
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Suction Cups Circular Antistatic And Wear-Resistant Flat Grippers PFG
1.Introduction and applicaton
- Round flat suction cups for handling of flat workpieces with smooth or rough surfaces;
- Handling high temperature workpieces(HT1,SI);
- There is almost no trace and antistatic when handling pressure sensitive workpieces(HT1 and AS versions);
2.Structure
- Strong and wear resistant flat suction cups PFG with single sealing lip consisting of suction pad PFG and connection nipple;
- Diameter 50 MM and below: in-line connector;
- Diameter 60 MM and above: the mounting plate and the suction cup pad are vulcanized together, and the nipple is screwed directly through threads;
3.Technology Data
| Type | Suction Force | Internal volume | Min. curve radius |
| [N] | [cm3] | ||
| PFG 2 | 0.12 | 0.001 | 2 |
| PFG 3.5 | 0.42 | 0.002 | 8 |
| PFG 5 | 0.75 | 0.005 | 8 |
| PFG 6 | 1.2 | 0.008 | 8 |
| PFG 8 | 2.3 | 0.03 | 10 |
| PFG 10 | 4 | 0.07 | 13 |
| PFG 15 | 9 | 0.4 | 13 |
| PFG 20 | 15.5 | 0.8 | 20 |
| PFG 25 | 26.5 | 1.3 | 25 |
| PFG 30 | 34 | 1.3 | 40 |
| PFG 35 | 44 | 2.7 | 50 |
| PFG 40 | 57.7 | 3.8 | 50 |
| PFG 50 | 91 | 7 | 75 |
| PFG 60 | 125 | 10 | 100 |
| PFG 80 | 260 | 25 | 150 |
| PFG 95 | 350 | 35 | 200 |
| PFG 120 | 540 | 77.8 | 300 |

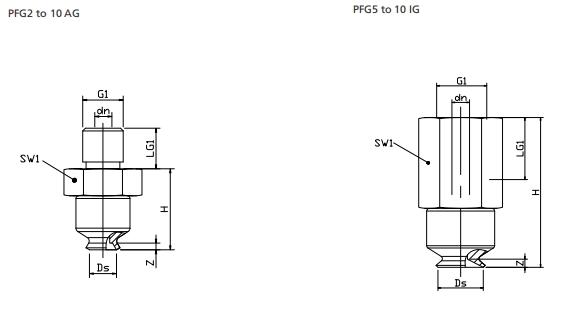

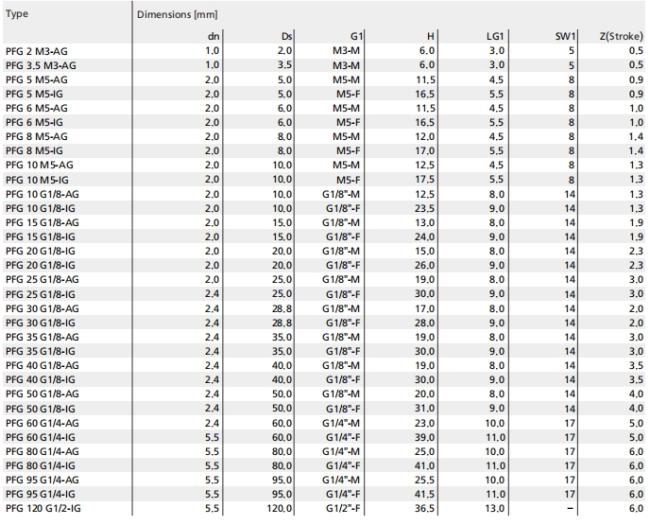

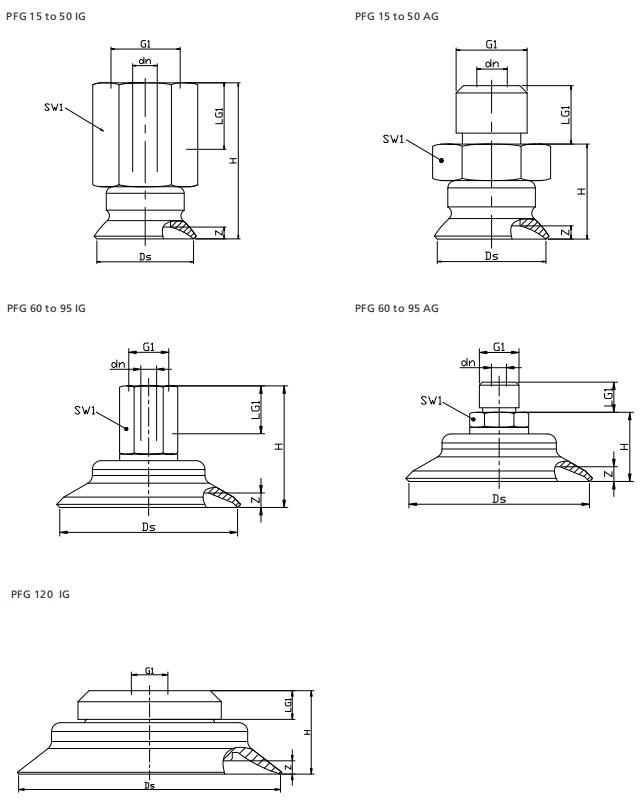

4.Design data:
