High Strength Round Suction Cups , FGA Bellows Vacuum Cups 11 To 78mm Diameter
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Suction Cups Round Bellows Grippers FGA With Wear-resistance Connectors
1. Introduction and applicaton:
- Handling fragile and vulnerable parts such as electronic components, injection molded parts, etc.
- Handling workpieces with flat or uneven surfaces, such as cartons, tubes, etc.
2. Structure
- Robust, wear-resistant suction cup FGA with single sealing lip, consisting of with 1.5 folds suction pad FGA and support plate.
- Connectors of all suction cups are in-line connectors.
- Suction cups with a diameter of 25 mm or above, with supports on the bottom.
3.Technology data:
| Type | Suction Force | Pull-off force | Volume | Workpiece radius min. |
| [N] | [N] | [cm3] | [mm](Conve) | |
| FGA 11 | 0.95 | 3.8 | 0.225 | 10 |
| FGA 14 | 1.2 | 5 | 0.42 | 13 |
| FGA 16 | 2.3 | 6.7 | 0.75 | 20 |
| FGA 20 | 4.7 | 10.7 | 1.15 | 30 |
| FGA 22 | 5.7 | 15.2 | 1.4 | 25 |
| FGA 25 | 5.3 | 17.3 | 3.15 | 20 |
| FGA 33 | 13.6 | 39.6 | 4.75 | 40 |
| FGA 43 | 22.8 | 64.5 | 9.25 | 60 |
| FGA 53 | 51.3 | 95 | 26.25 | 75 |
| FGA 63 | 85 | 135 | 39 | 75 |
| FGA 78 | 137.4 | 218 | 76 | 70 |

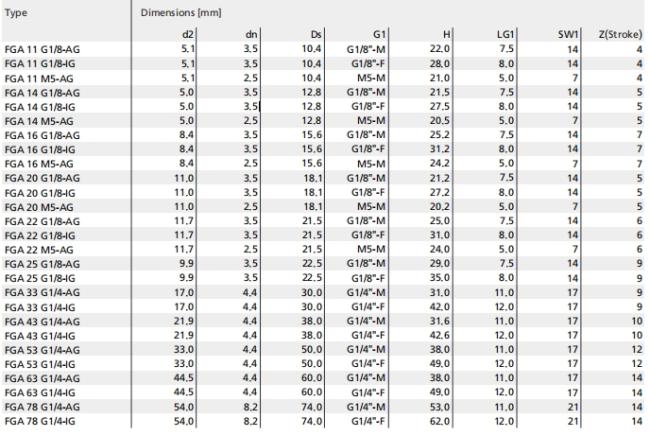

4.Design data:
