1. Product Description

    Contactless Suction Cup is a lifting technique of many possibilities. You can, for example, handle board materials or concrete slabs, open bags, pick electronic components, label and hold objects. But different applications need different requirements. You are welcome to tell us about your needs. We are your partner whatever your needs might be.

2. Usage

• For handling and separation of extremely thin workpieces without permanent deformation (e.g. film, paper, wood veneer)
• Handling vulnerable workpieces (e.g. silicon wafers and battery wafers)

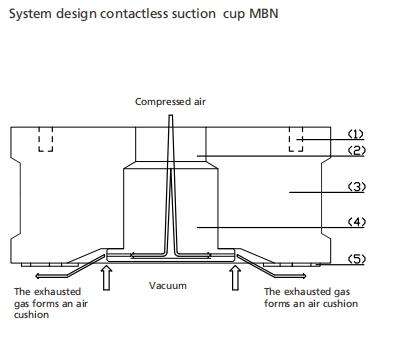

3. Structure

• Connection directly via four mounting threads (1) on the top side;
• Vertical (2) and horizontal compressed air connections;
• Horizontal-direction compressed air connection hole (closed with plug);
• The main material is anodized aluminumy with integrated bernoulli nozzle (3);
• Streaming element (4) in two versions: standard flow SF for airtight workpieces and high flow HF for higher leakage compensation on porous workpieces;
• Mark-free rubber buffer of special material HT1 on the bottom side of the suction cup (5);
• Optional available with central suppor;

4. Technology Data:

5. Design data
