Vacuum Cup Fittings Spring Buffer Strut MTE-STARR Double Spring Type

1. Description

    Spring plunger with high quality sliding bearings and specially machined plunger rod. Spring plunger with two damping springs, optionally available with anti-rotation guard. Spring Buffer Strut has wide range of different connection threads and stroke lengths.

2. Application

• Handling very sensitive components without additional control requirements (e.g. glass sheets), it ensures that workpieces are set down gently;
• Handling very warped and naturally grown materials (e.g. dried wood) without additional technical control requirements;
• Use under harsh conditions;
• Highly dynamic handling tasks with short cycle times；

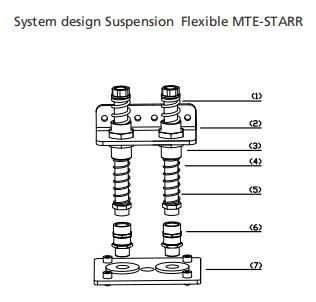

3. Structure

• Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve both lower (5) and upper (1) damping spring;
• High quality stainless steel mounting plate (2) for fixing brassguide sleeve (4) and integrated sliding sleeve the guide sleeve is attached by two lock nuts (3);
• Optional flexible joint (6) connection (high quality steel and vulcanized adhesive rubber) for maximum angular compensation;
• The powder coating mounting plate (7) is suitable for large-area clamp systems;

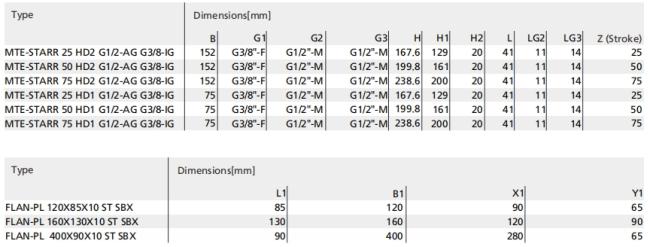

4. Technology Data:

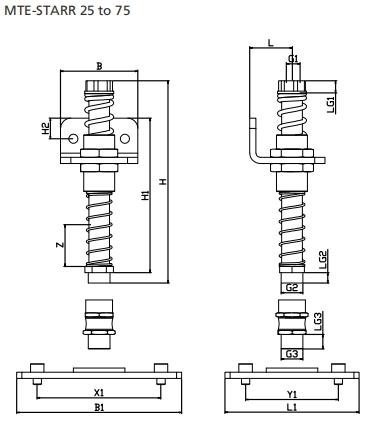

5. Design Data
