Product Description
Multistage Vacuum Generator Integrated Vacuum Ejectors MCP Alumina Material
1. Introduction
Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers). Pneumatic vacuum generators implement short cycle times and can be integrated directly into the system due to their compact and light weight design. Ejectors offer intelligent functions for energy and process control. Electrical vacuum generators are used in applications when compressed air is not available or if very high suction capacities are required.
2. Application
For handling airtight or micro-breathable workpieces in electronics, electrical engineering, packaging technology,robotics and the automotive industry.

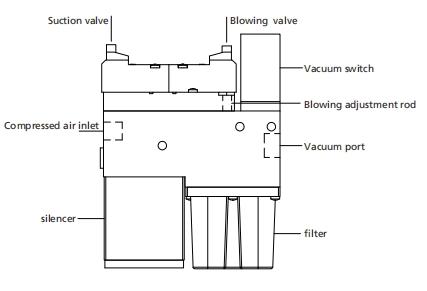

3. Design
- Main material is alumina.
- Optional suction valve normally open (NO) or normally closed (NC) form.
- Built-in normally closed (NC) blow valve, silencer and one-way check valve.
- Optional components:digital vacuum switch.
4. Technology Data
| Type | Noise level suction | Noise level free | operating pressure | Weight | Operating temperature |
| 【dB】 | 【dB】 | 【bar】 | 【g】 | 【℃】 | |
| MCP 10... | 66 | 68 | 5 | 275 | 0...45 |
| MCP 15... | 68 | 68 | 5 | 275 | 0...45 |
| MCP 20... | 76 | 78 | 5..6 | 465 | 0...45 |
| MCP 25... | 72 | 82 | 5...6 | 485 | 0...45 |
| MCP 30... | 82 | 82 | 5...6 | 485 | 0...45 |
| Type | Nozzle size | Vacuum | Maximum suction capacity | Suction capacity | Air consumption suction | Air consumption suction | Maximum air consumption suction |
| 【mm】 | 【%】 | [l/min] | [m³/h] | [l/min] | [m³/h] | [l/min] | |
| MCP 10... | 1.0 | 85 | 37 | 2.2 | 53 | 3.2 | 200 |
| MCP 15... | 1.5 | 85 | 65 | 3.9 | 117 | 7.0 | 200 |
| MCP 20... | 2.0 | 85 | 116 | 7.0 | 190 | 11.4 | 200 |
| MCP 25... | 2.5 | 85 | 161 | 9.7 | 310 | 18.6 | 200 |
| MCP 30... | 3.0 | 85 | 200 | 12.0 | 420 | 25.2 | 200 |

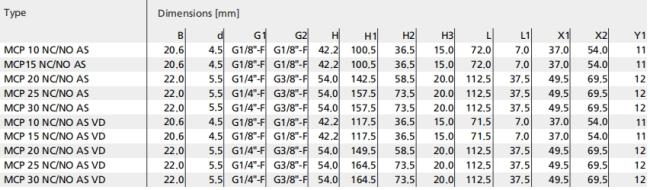

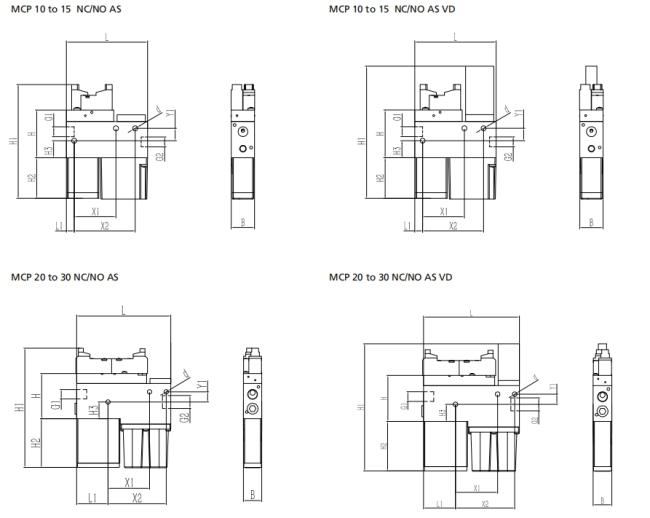

- . Design Date
