Multistage Vacuum Generator Customizable Integrated Vacuum Ejectors M-ECO

1. Introduction and application

• Vacuum interface thread is G1/8'' or G3/8.
• Available in a variety of configurations to customize to your specific requirements. The Si vacuum tube provides high vacuum flow and the Xi vacuum tube provides high vacuum degree.

2. Features

• Basic ejector with alumina housing, integrated valve technology and system monitoring for use in very high dynamic feeder systems;
• Handling of all kinds of airtight components;
• For use in separating systems where space is restricted;
• Construction of ejector blocks for centralized or decentralized individual control of suction cups;

3. Design

• Main material is alumina.
• Optional suction valve normally open (NO) or normally closed (NC) form.
• Built-in normally closed (NC) blow valve, silencer and one-way check valve.
• Optional components:digital vacuum switch.

4. Technology Data

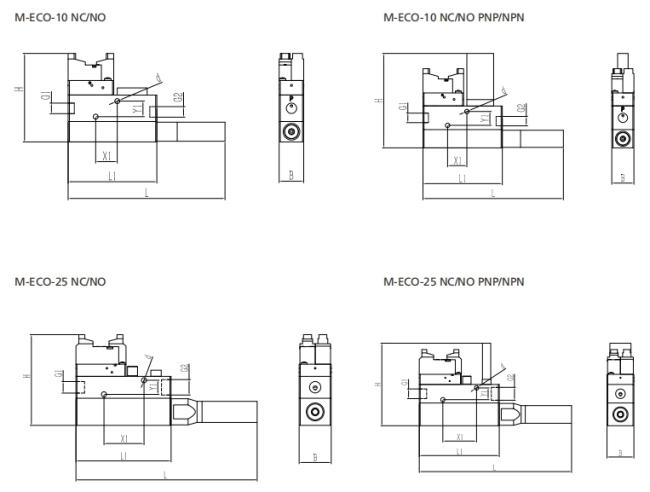

5. Design Date
