Foam Vacuum Gripper Large Area Vacuum Gripping System ATS With Alumina Materials
1. Introduction
- Built-in vacuum generator, alumina body, foam wear；
- Small size, easy installation and good adsorption stability；
- Width: 80mm；
2. Technical Parameter:
| Type | Number of suction holes | Air consumption | Maximum suction capacity | Maximum vacuum | Suction force | Weight |
| 【I/min】 | 【I/min】 | 【%】 | 【N】 | 【kg】 | ||
| ATS-SVK 276 | 27 | 180 | 1050 | 60 | 140 | 1.6 |
| ATS-SVK 303 | 30 | 180 | 1050 | 60 | 156 | 1.7 |
| ATS-SVK 410 | 42 | 180 | 1050 | 60 | 218 | 2 |
| ATS-SVK 520 | 54 | 180 | 1050 | 60 | 280 | 2.4 |
| ATS-SVK 600 | 63 | 180 | 1050 | 60 | 327 | 2.7 |
| ATS-SVK 816 | 87 | 270 | 1350 | 60 | 452 | 3.3 |
| ATS-SVK 978 | 105 | 270 | 1350 | 60 | 546 | 4 |
| ATS-SVK 1221 | 132 | 360 | 1600 | 60 | 686 | 5.1 |
| ATS-SW 1410 | 153 | 360 | 1600 | 60 | 795 | 5.8 |
| ATS-SW 276 | 27 | 180 | 1050 | 60 | 140 | 1.6 |
| ATS-SW 303 | 30 | 180 | 1050 | 60 | 156 | 1.7 |
| ATS-SW 410 | 42 | 180 | 1050 | 60 | 218 | 2 |
| ATS-SW 520 | 54 | 180 | 1050 | 60 | 280 | 2.4 |
| ATS-SW 600 | 63 | 180 | 1050 | 60 | 327 | 2.7 |
| ATS-SW 816 | 87 | 270 | 1350 | 60 | 452 | 3.3 |
| ATS-SW 978 | 105 | 270 | 1350 | 60 | 546 | 4 |
| ATS-SW 1221 | 132 | 360 | 1600 | 60 | 686 | 5.1 |
| ATS-SW 1410 | 153 | 360 | 1600 | 60 | 795 | 5.8 |

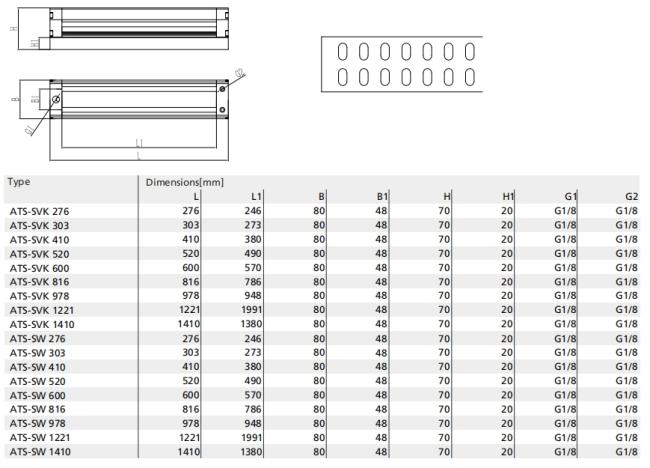

3.Design Data:
