Aluminium Vacuum Lifting Air Cylinder 60Kpa For Gripping System
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Lifting Air Cylinder MVB For Gripping System With Aluminium Material
1. Introduction and application:
- When vacuum is introduced, the suction cup installed on the lifting cylinder will quickly extend out with the cylinder piston, and automatically lift and keep the adsorption state after contacting the sucked object.
- Short cycle, controlled by a single vacuum throttle valve, automatically compensates the height of the sucked object, the piston does not rotate, and the operation is simple.
- It can be used to adsorb objects machined, molded or thermoformed. It can also be used to separate paper, plastic, steel plate, etc.
2.Technical parameters and order codes:
| Type | -80KPa | -80KP | Minimum cycle time | Minimum vacuum degree | Minimum flow during operation | Working temperature | Ordering Data |
| thrust [N] | Lifting force [N] | [s] | [-Kpa] | [Nl/s] | [℃] | ||
| MVB 5 | 20 | 4.5 | 0.3 | 60 | 15 | 5…80 | 90.03.01.00105 |
| MVB 10 | 43 | 10 | 0.4 | 60 | 30 | 5…80 | 90.03.01.00106 |
| MVB 15 | 120 | 25 | 0.6 | 60 | 90 | 5…80 | 90.03.01.00107 |

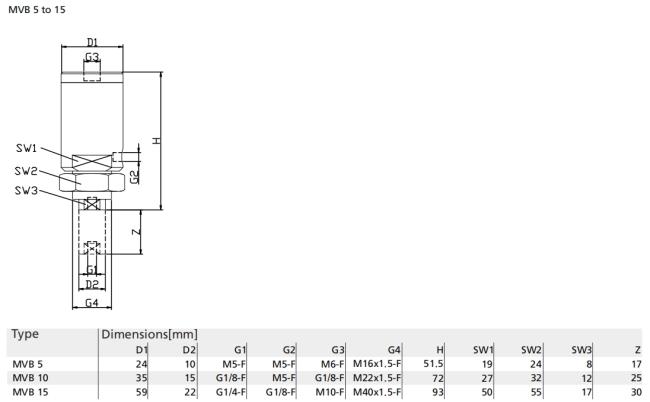

3.Design Data:
