GERANIUM EPDM Vacuum Suction Cups For Handling Grasping Paper
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Depending on the order quantity
Brand:
AMILA
Product Description
Vacuum Suction Cup MPES For Handling For Grasping Paper Or Plastic Bags
1. Introduction and applicaton
-
For grasping paper or plastic bags, packaging and flexible containers contain powder,granular products, loose or liquid products.
2.Technology data
| Type | Suction | weight | working temperature |
| Ds[N] | [kg] | [℃] | |
| MPES 120×60 G3/8 | 94 | 0.36 | -40…80 |
| MPES 160×90 G1/2 | 179 | 0.63 | -40…80 |
| MPES 210×95 G1/2 | 274 | 0.8 | -40…80 |
| MPES 200×150 G1 | 438 | 1.1 | -40…80 |
| MPES 300×200 G1 | 825 | 2.24 | -40…80 |
| MPES 400×300 G2 | 1744 | 3.85 | -40…80 |

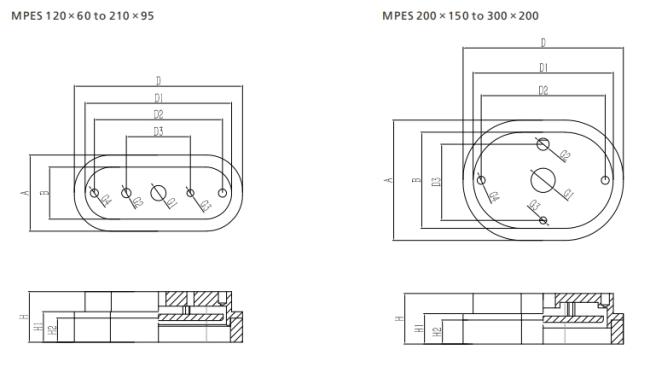

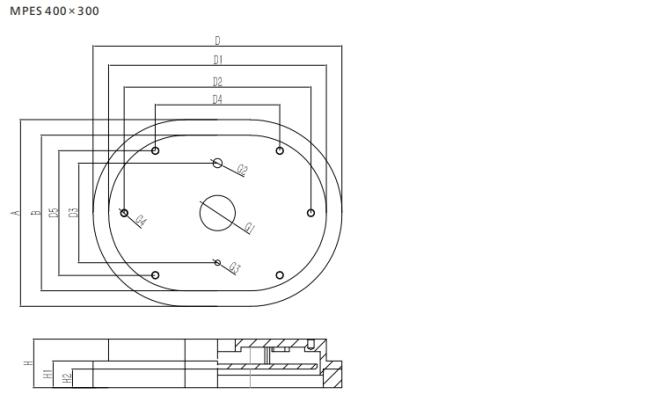

3.Design data
| Type | Size [mm] | ||||||||||||||
| D | D1 | D2 | D3 | D4 | D5 | A | B | H | H1 | H2 | G1 | G2 | G3 | G4 | |
| MPES 120×60 G3/8 | 120 | 111 | 100 | - | - | - | 60 | 40 | 49 | 20 | 15 | G3/8 | - | - | M8 |
| MPES 160×90 G1/2 | 160 | 145 | 130 | 80 | - | - | 90 | 60 | 63 | 38 | 30 | G1/2 | G1/4 | G1/8 | M12 |
| MPES 210×95 G1/2 | 210 | 185 | 160 | 80 | - | - | 95 | 60 | 63 | 38 | 30 | G1/2 | G1/4 | G1/8 | M12 |
| MPES 200×150 G1 | 200 | 175 | 160 | 95 | - | - | 150 | 120 | 63 | 38 | 30 | G1 | G3/8 | G1/8 | M12 |
| MPES 300×200 G1 | 300 | 250 | 200 | 115 | - | - | 200 | 150 | 78 | 38 | 30 | G1 | G3/8 | G1/8 | M12 |
| MPES 400×300 G2 | 400 | 350 | 300 | 160 | 200 | 200 | 300 | 250 | 78 | 38 | 30 | G2 | G3/8 | G1/8 | M12 |
