Aluminum Alloy Shell Adjustable Diameter 0.7mm Needle Gripper
Price:
Negotiatable
MOQ:
Negotiatable
Delivery Time:
Negotiatable
Brand:
AMILA
Product Description
Needle Gripper MNG-W Aluminum Alloy Shell And Needle Diameter 0.7MM
1. Introduction and application
- The insertion depth of the small needle is shallow, and the release function of fast air blowing is realized.
- Handling thin ventilated workpieces.
- The stroke of the needle can be adjusted.
- Handle materials that are difficult to be adsorbed by vacuum,such as composite textiles, wool, filters, woven glass fibers or carbon fibers, woven aramid, foam materials, etc.
- The suction coverage area is increased, handle products adsorption more stable.

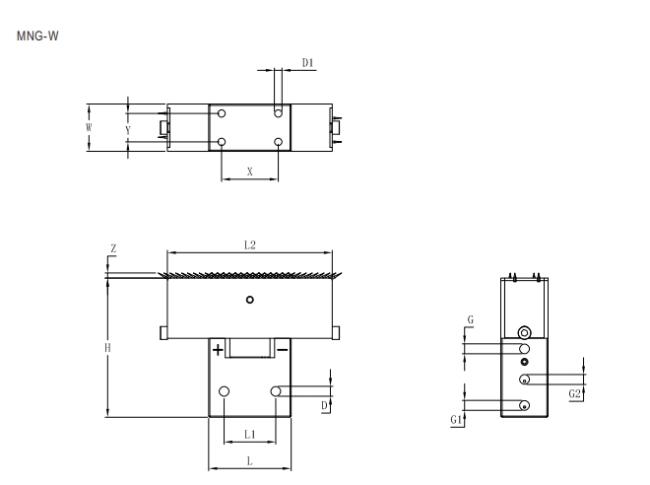

2. Design
| Type | Size [mm] | ||||||||||||
| L | H | W | L1 | X | Y | L2 | D | D1 | G1 | G2 | G3 | Z | |
| MNG-W | 35 | 59 | 20 | 22 | 24 | 12 | 70 | φ4.2 | M4 | M5 | M5 | M5 | 2 |
3. Technical Data
| Type | NO. of needles | Needle diameter | operating pressure | Operating temperature | Weight | stroke |
| [mm] | [bar] | [℃] | [g] | [mm] | ||
| MNG-W | 92 | 0.7 | 3.0...6.0 | 5...60 | 140 | 2 |
