Fast Vacuum Generator MEAC With Blowing Function,Small Size And Light Weight
1. Introduction and application
- The main material of the vacuum generator is made of alumina,with strong power; small size, and light weight. It is blown by suitable for a distributed vacuum supply system under high speed dynamic compressed air and is working conditions.
- Quick suction-blowing, suitable for HTS series bracket, optional vacuum switch.

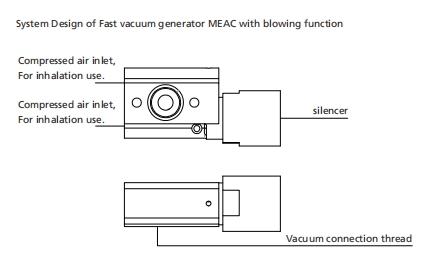

2. Design
- The main material is made of alumina. Contains nozzles,filters, and silencers;
- Small size and light weight, especially suitable for high-speed motion conditions;
- It can be directly installed on the vacuum suction cup and connector;
3. Technical Data
| Model | Nozzle diameter | Maximum vacuum | Maximum suction force | air consumption | Operating | Recommended inner diameter of vacuum tube |
Operating
temperature
|
||
| Inhale | Blow | pressure | Compressed air pipe | vacuum tube | |||||
| [mm] | [%] | [l/min](1) | [l/min](1) | [l/min](1) | [bar] | [mm](2) | [mm](2) | [ °C] | |
| MEAC-10 | 1 | 85 | 35 | 47 | 60 | 4…6 | 4 | 4 | 0…50 |
- Note: All flow parameters refer to the parameters under the conditions of external pressure (ANR) of 101.3 kPa, temperature and humidity of 20 °C and 65% respectively.
- Note: Compressed air quality: reach ISO 8573-1, 7-4-4 level filter (40µm) with or without oil.
(1) The working pressure is 4.5 bar.
(2) Hose length: up to 2 m.
4.The suction rate under different vacuum pressure [l/min]
| Model | vacuum degree[mbar] | |||||||||
| 0 | -50 | -100 | -200 | -300 | -400 | -500 | -600 | -700 | -800 | |
| MEAC-10 | 35 | 32 | 30 | 27 | 23.5 | 18 | 12 | 8 | 4.5 | 2 |
5.The suction time to reach a specific vacuum pressure in a volume of 1L
| Model | vacuum degree[mbar] | ||||||||
| -50 | -100 | -200 | -300 | -400 | -500 | -600 | -700 | -800 | |
| MEAC-10 | 0.09 | 0.16 | 0.34 | 0.59 | 0.96 | 1.42 | 2.03 | 3.3 | 7.36 |

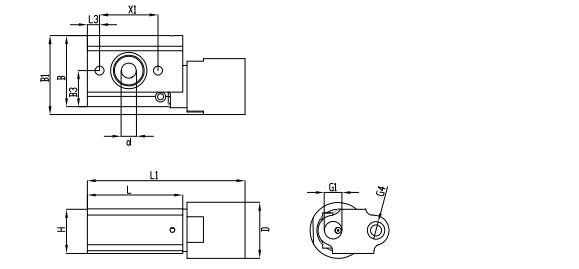

6.Design Data
| Model | Size[mm] | ||||||||||||
| B | B1 | B3 | d | D | G1(4) | G4(5) | H | L | L1 | L3 | X1 | Weight[g] | |
| MEAC-10 | 31 | 34.6 | 15.5 | 7.5 | 27 | G1/8-F | G1/8-F | 21.5 | 46 | 77 | 6 | 28 | 62 |
-
Note: (4) G1: The compressed air inlet is for suction. Use hose connectors with straight male threads instead of tapered threads.(5) G4: The compressed air inlet is for blowing. Use hose connectors with straight male threads instead of tapered threads.

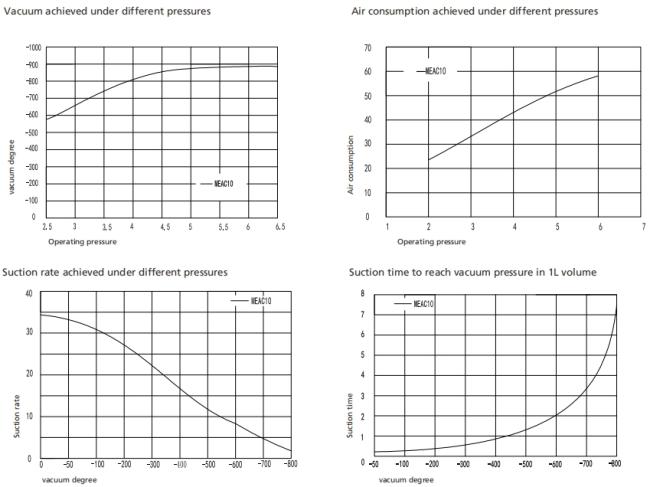

7.Performance curve of Quick exhaust type vacuum generator MEAC
