High-Flow Vacuum Pneumatic Switching Valve MPV-D Made Of Alumina Material
1. Introduction and application
- F4 with two-position three-way vacuum switching valve;
- F5, F6 with vacuum source pressure relief and vacuum working port pressure relief switching valve;
- F7 with vacuum source pressure relief and vacuum working port pressure relief combined switching valve;
- F8 with high-flow switching valve to destroy the vacuum working port.

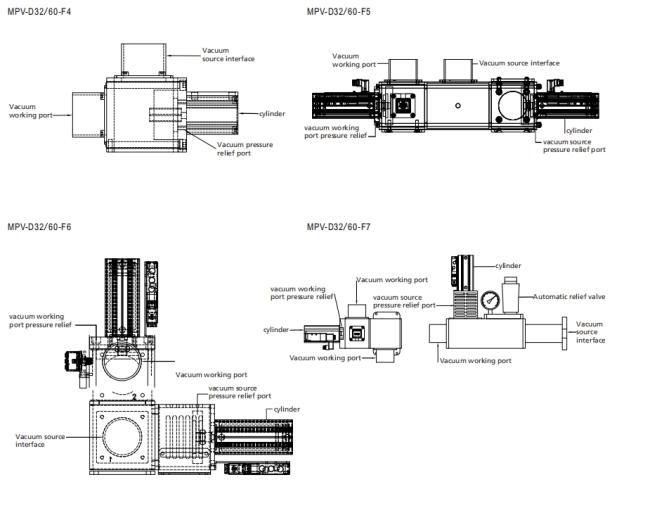

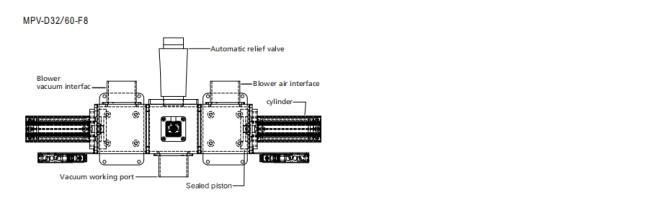

2. Structure

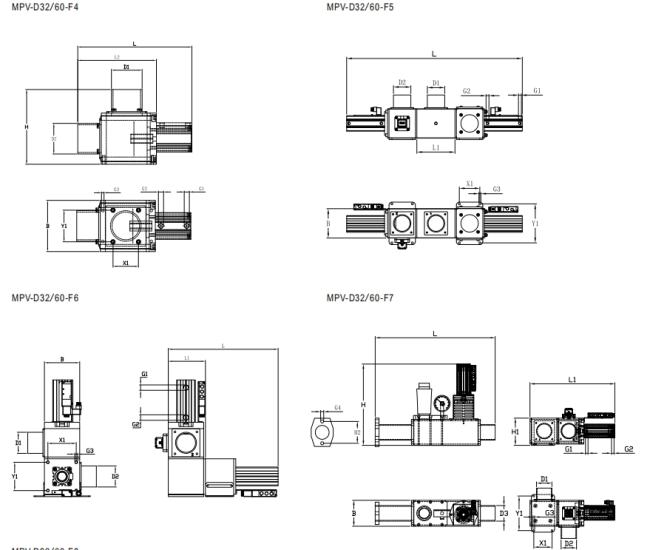

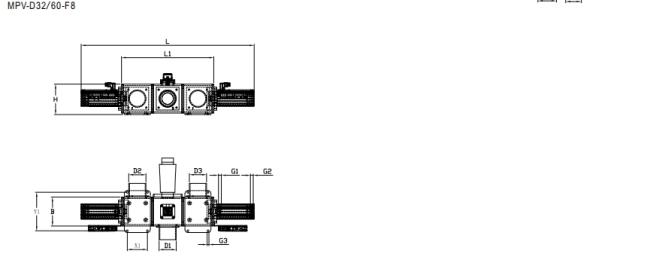

3.Design Data
| Model | Size [mm] | ||||||||||||
| B | D1 | D2 | D3 | H | G1 | G2 | G3 | L | L1 | X1 | Y1 | H1 | |
| MPV-D32-F4 | 100 | 32 | 32 | - | 146 | G1/8-F | G1/8-F | M6-F | 223.5 | 154 | 95 | 60 | - |
| MPV-D60-F4 | 100 | 60 | 60 | - | 146 | G1/8-F | G1/8-F | M6-F | 223.5 | 154 | 95 | 60 | - |
| MPV-D32-F5 | 100 | 32 | 32 | - | 152 | G1/8 | G1/8 | 6. 5 | 599 | 130 | 70 | 133 | - |
| MPV-D60-F5 | 100 | 60 | 60 | - | 152 | G1/8 | G1/8 | 6. 5 | 599 | 130 | 70 | 133 | - |
| MPV-D32-F6 | 100 | 32 | 32 | - | 329.5 | G1/8 | G1/8 | 8. 5 | 310.5 | 105 | 80 | 80 | - |
| MPV-D60-F6 | 100 | 60 | 60 | - | 329.5 | G1/8 | G1/8 | 8. 5 | 310.5 | 105 | 80 | 80 | - |
| MPV-D32-F7 | 100 | 32 | 32 | - | 313 | G1/8 | G1/8 | 6. 5 | 463 | 327.5 | 70 | 133 | 105 |
| MPV-D60-F7 | 100 | 60 | 60 | - | 313 | G1/8 | G1/8 | 6. 5 | 463 | 327.5 | 70 | 133 | 105 |
| MPV-D32-F8 | 100 | 32 | 32 | 32 | 105 | G1/8 | G1/8 | 6. 5 | 599 | 320 | 70 | 133 | - |
| MPV-D60-F8 | 100 | 60 | 60 | 60 | 105 | G1/8 | G1/8 | 6. 5 | 599 | 320 | 70 | 133 | - |
- Note: The dimensions of F7 vacuum source connection ports G4 and H2 can be customized according to the size of the vacuum source.
