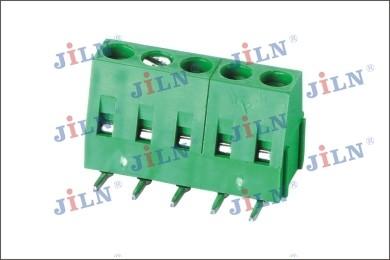

PA66 0.4Nm JL128R PCB Terminal Connector 5.00 5.08mm Pitch H13.9
JL128R PCB Terminal Connector 5.00 5.08mm Pitch H13.9 Green PA66 0.4Nm
Specifications:
| Rated Currency: | 300V,10A |
| Dieletric Strength: | AC2000V/1 Minute |
| Insularion Resistance: | 500mΩ Min |
| Contact Resistance: | 20mΩ Max |
| Screw Torque: | 0.4Nm(3.5Lb.in) |
| Wire Range: | 26-14AWG 2.5M㎡ |
| Strip Length: | 6-7mm |
| Term. Range: | -40℃~+105℃ |
| Max Solering | +250℃.5S |
| Housing Material: | PA66(UL94 V-O) |
| Contact: | Steel, Tin Plating |
| Clamp: | Brass/Steel, NI Plating |
| Wire Protector: | Brass,Ni Plating |
| Screw: | - |
