Network Traffic Analysis Tools with Ports Healthy Detection and Historical Traffic Trend Review
Packet Analysis Network TAP with Ports Healthy Detection and Historical Traffic Trend Review
1.Overviews
- The basic analysis module of traffic visualization detection function can make a summary statistical presentation of the captured target traffic data's message count, unicast/multicast/broadcast message distribution, session connection number, message protocol distribution, captured traffic size and other basic information.
2.Intelligent Traffic Processing Abilities
Packet Analysis
Supported the captured datagram analysis, including abnormal datagram analysis, stream recombination, transmission path analysis, and abnormal stream analysis.
Ports Healthy Detection
Supported real-time detection of the service process health of the back-end monitoring and analysis equipment connected to different output ports. When the service process fails, the faulty device is automatically removed. After the faulty device is recovered, the system automatically returns to the load balancing group to ensure the reliability of multi-port load balancing.
Historical Traffic Trend Review
Supported port-level, policy-level nearly 2 months of historical traffic statistics query. According to the days, hours, minutes and other granularity on the TX/RX rate, TX/RX bytes, TX/RX messages, TX/RX error number or other information to query select.
NetTAP® Visibility Platform
Supported NetTAP® Matrix-SDN Visual Control Platform Access
1+1 Redundant Power System(RPS)
Supported 1+1 Dual Redundant Power System
NT-VPP-4860G Network TAP NPB.pdf

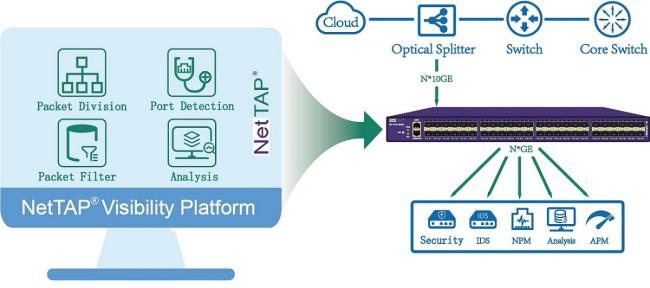

3.Typical Application Structures
- Data Acquisition/Detection Application and Visual Control Platform Tools(as following)
4.Specifications
| Packet Analysis Network TAP with Ports Healthy Detection and Historical Traffic Trend Review | |||
| Network Interface | 10GE |
48*SFP+ slots, support 10GE/GE； Support Single/Multiple mode fiber |
|
|
Out-of-Band MGT Interface |
1*10/100/1000M electrical port； | ||
| Deployment Mode | Optical | support | |
| Mirror Span | support | ||
| Management | CONSOLE MGT | support | |
| IP/WEB MGT | support | ||
| SNMP MGT | support | ||
| TELNET/SSH MGT | support | ||
| SYSLOG protocol | support | ||
| User authentication | Based on user’s password authentication | ||
| Electric(1+1 Redundant Power System-RPS) | Rate power supply voltage | AC110~240V/DC-48V(optional) | |
| Rate power supply frequency | AC-50HZ | ||
| Rate input current | AC-3A / DC-10A | ||
| Rate power | Max 250W | ||
| Environment | Working temperature | 0－50℃ | |
| Storage temperature | -20-70℃ | ||
| Working humidity | 10%-95%,no condensation | ||
| User Configuration | Console configuration | RS232 interface, 115200,8,N,1 | |
| Password authentication | support | ||
| Height of Chassis | (U) | 1U 445mm*44mm*402mm | |
5.Order Information
NT-VPP-4860G-24H 24*10GE/GE SFP+ Ports , 240Gbps
NT-VPP-4860G-48H 48*10GE/GE SFP+ Ports , 480Gbps
