Full HD LCD Panel IR Touch Display for Advertising and Query 7ms Response Time

Price Negotiable
Price: Negotiable
MOQ: 1 units
Delivery Time: 1-10 days
Brand: HUSHIDA
Product Description





Full HD LCD Panel IR Touch Display for Advertising and Query 7ms Response Time




Description:

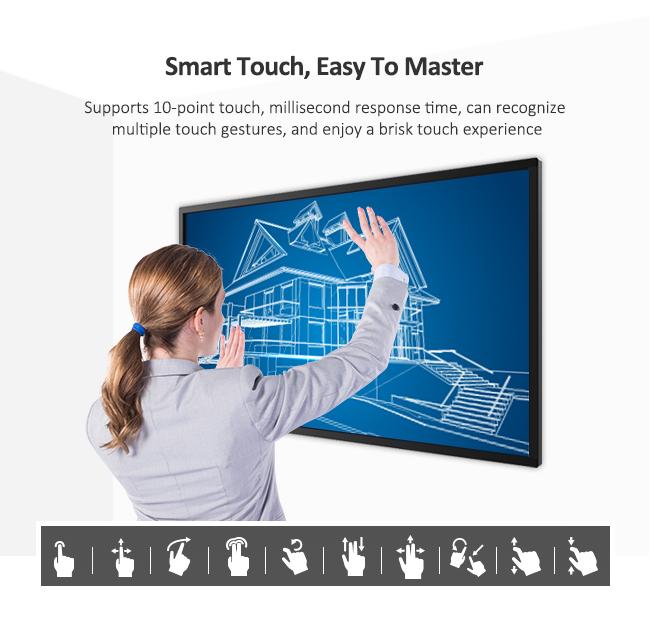

• Multi-point intelligent touch: Multi-point intelligent touch of the infrared touch all-in-one has the characteristics of fast response, anti-glare, driver-free, plug-and-play and excellent support for handwriting recognition input.

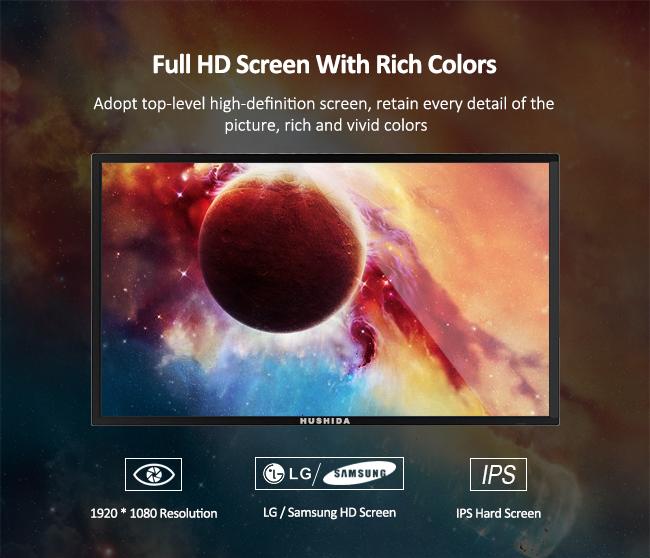

High-definition resolution and vivid tones: Full HD LCD panel with 178-degree viewing angle, high contrast and brightness, intelligently eliminates distortion such as afterimages and ghosting, making the display clearer, more stable, and more vivid colors.

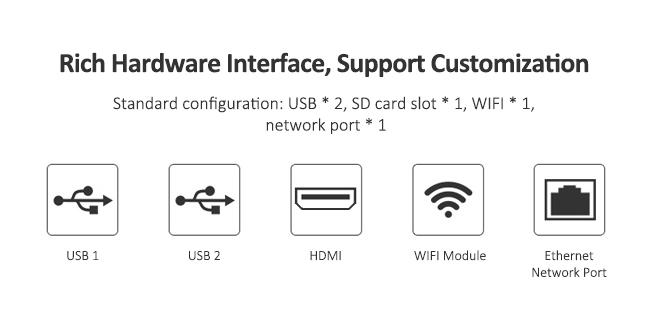

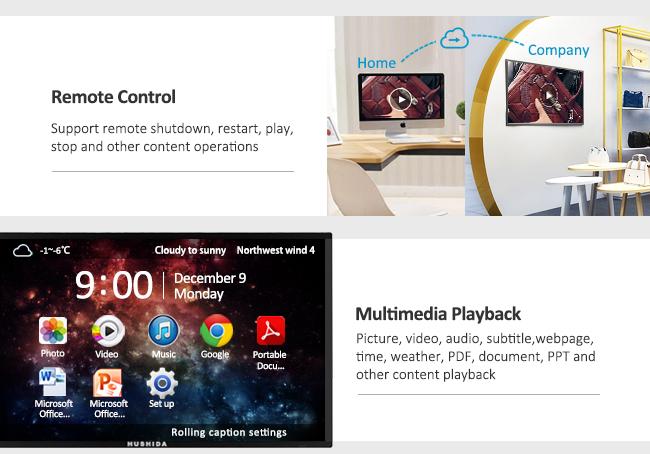

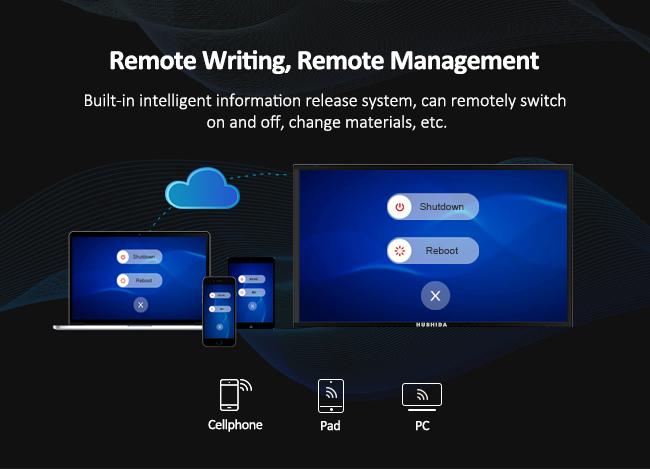

Multimedia information processing: compatible with a variety of image, animation, and audio formats. With an Ethernet network interface, the system can be distributed around the world to achieve super-computer information release through the wide area network (Internet) to achieve human-computer interaction.

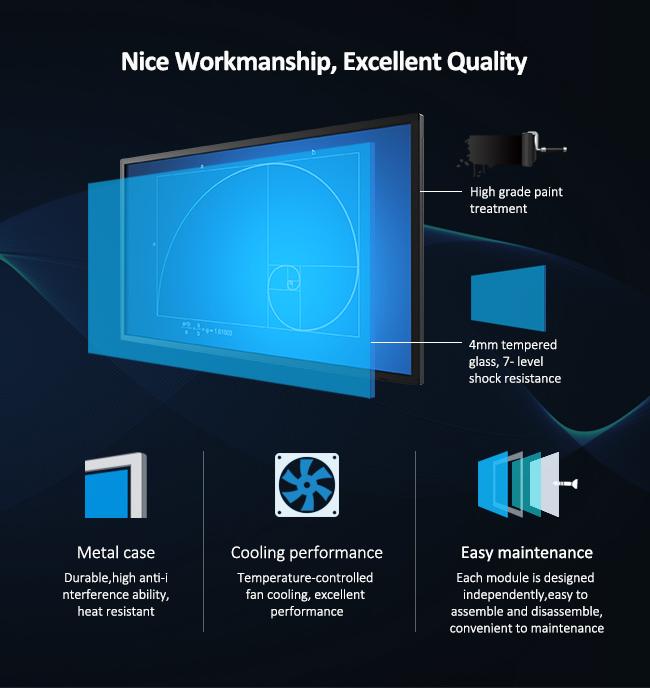

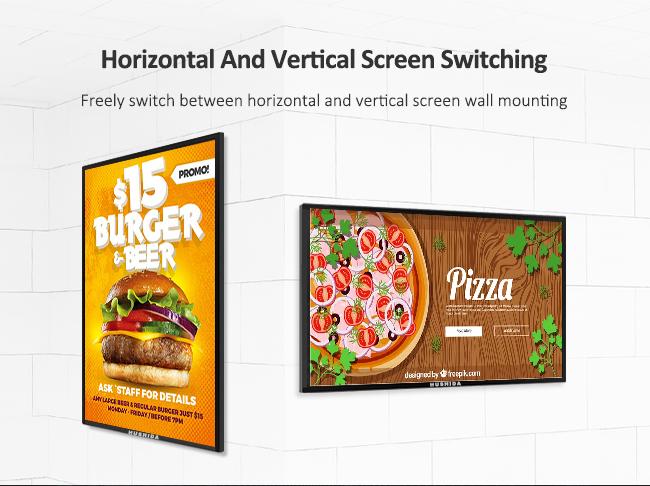

Integrated design: simple and elegant product design, more beautiful, cost-effective, support wall-mounted installation and floor-mounted installation, easy installation, rich maintenance doors, easy maintenance and convenient industrial-grade parts, fine workmanship, humanized detail design.




LCD panel
Diagonal size 65 inches
Panel brand SAMSUNG, LG, AU (A screen)
Types of TFT-LCD S-PVA
Resolution 1920 × 1080 (FHD) @60hz
Brightness (typical) 350cd/m2
Contrast (typical) 1200:1
Viewing angle (horizontal/vertical) 178°/178°
Response time (gray scale) 8ms
Visible area 1428.48(W)×803.52(H) mm
Pigment 16.7 million colors 24Bit
Color gamut (NTSC) 72%
Backlight WLED
Zoom 16:9
Response time <8ms
Life >60000H




Infrared touch characteristics
Touch specification Infrared touch frame
Glass 4mm tempered glass
Glass transmittance >88% (higher transmittance depends on the surface treatment Technology of the glass such as AR/AG)
Object induction number (IR) 10 touch
Infrared sensing line number (W× D) 32767 × 32767
Point accuracy More than 90% of the touch area is ±2mm
Interface definition USB 2.0 (Full speed)
Touch force Zero pressure touch
Light resistance Lightfast
Induction life 6 million times
Response time <8ms
Power supply Full duplex USB powered DC +5V up to 500mA
