High Speed Round Bottle Labeling Machine 30-100 Bottles/Min Speed
High Speed Round Bottle Labeling Machine 30-100 Bottles/Min Speed
Main Feature:

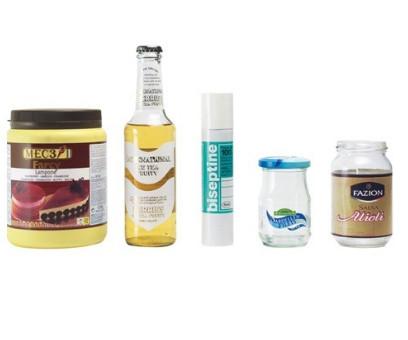

◆ Applicable to paste adhesive sticker on the upper-planes of the products which are from food, daily use chemical, medicine, stationery, and other industries;
◆ Wide application range that it could be used to paste adhesive sticker on the planes of objects with a width of 30mm ~ 200mm or label them, as well as those which have uneven surfaces with the label-pressing mechanism being changed;
◆ Strong and durable with the use of three-lever adjustment mechanism which makes full use of the stability of the triangle; Easy and timesaving to replace different objects;
◆ Special tilting feeding roller conveyor design , the paste item automatic positioning
◆ Automatic photoelectric detection, it has without label no stick and without label automatic correction or alarm automatic detection function, to prevent leakage and waste
◆ The machine structure is simple, compact, easy to operation and maintenance
◆ The machine adopts famous brand motor drive, the feeding label speed stability, reliability
| Model / technical parameters | XT-751 | |
| Labeling speed (pcs/min) |
60-200pcs/min (relate to material and label size) |
|
| Labeling accuracy(mm) |
±1.0mm (material and label sizes are not counted in) |
|
| Label size(mm) | (L)20-300mm (H)10-180mm | |
| Material size(mm) | φ16-φ24mm 高(H)40-120mm | |
| Roll inside(mm) | φ76mm | |
| Roll outerside diameter(mm) | (Max)Φ380mm | |
| Machine size (mm) | 1800X850X1600(mm) | |
| Power supply | AC220V 50Hz/60Hz 1500W |
