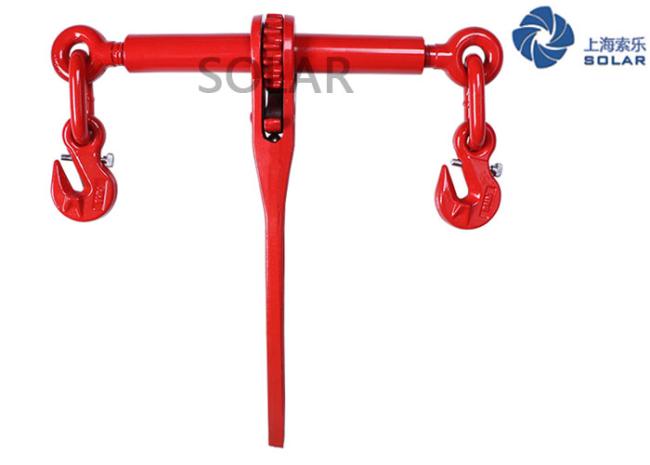

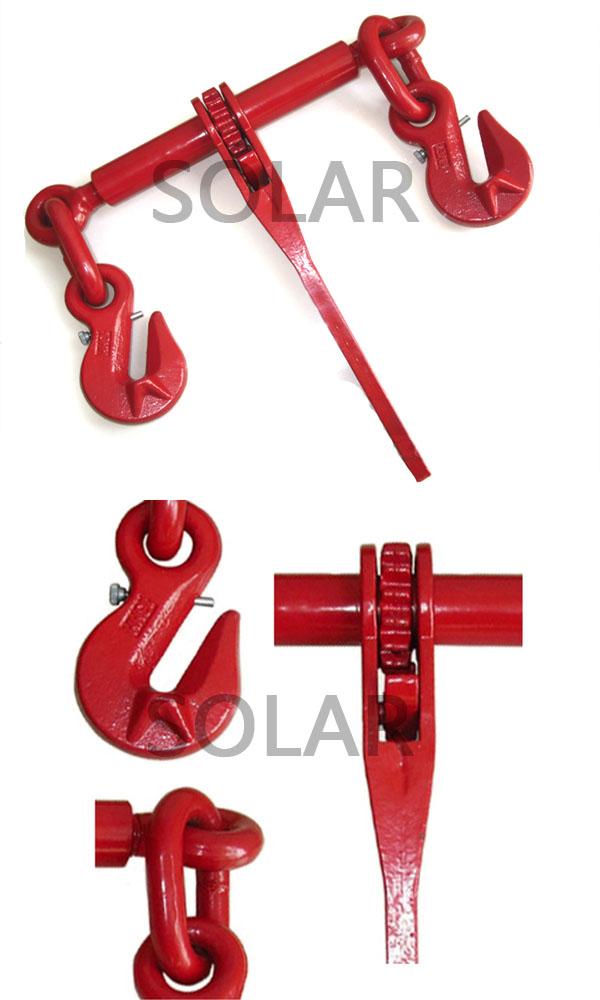

Truck Tight Ratchet Load Binders With Quenched And Tempered Heat Treatment
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
3 days
Brand:
SOLAR
Product Description
EN 12195-3 G80 Ratchet Load Binders with Hooks with Pin Tensioner Container Truck tight Ratchet Chain
Applications:
* Material: Alloy Steel
* Finish: Powder Coated
* Heat Treated: Quenched and Tempered
* Packing: Carton then Steel Pallet
* Safety Factor 4 times, Testing load 2.5 times of WLL
 |
EN 12195-3 G80 Ratchet Load Binders
| Chain Size |
Load Capacity | Breaking Load |
Weight Each | Handle Length | Barrel Length | Take Up |
Dimensions (mm.) |
||||||
| (mm.) | (kg.) | (kg.) | (kg.) | (mm.) | (mm.) | (mm.) | A | B | C | D | E | F | G |
| 6 | 2200 | 4520 | 1.6 | - - | - - | - - | - - | 45 | - - | - - | 510 | 430 | 8 |
| 8 | 4000 | 8040 | 4.5 | 182.0 | - - | - - | 355 | 53 | 16 | 252 | 742 | 573 | 11 |
| 10 | 6300 | 12600 | 5.4 | 355.6 | 254 | 203.2 | 355 | 53 | 16 | 252 | 789 | 620 | 13 |
| 13 | 10000 | 21200 | 7.7 | 355.6 | 254 | 203.2 | 355 | 59 | 16 | 252 | 866 | 703 | 17 |
| 16 | 16000 | 32000 | 10.2 | 355.6 | 254 | 203.2 | 355 | 66 | 16 | 252 | 892 | 733 | 20 |
