8x111SWSNS+IWR Line Contacted Glavanized Heavy Duty Lifting Steel Wire Rope

Point Line Contacted 8x111SWSNS+IWR Galvanized Steel Wire Rope​

Rope Type: 8x111SWSNS

Rope Construction: 8x111SWSNS+IWR

Application:

1. It is used in heavy rigging,heavy-duty hoisting machinery ,salvage,etc.

2. Steel wire ropes with diameters from 20mm to 200mm

3. 4:1/5:1/6:1 safety factors

EIPS = 1960Mpa (Extra Improved Plow Steel)
EEIPS= 2160Mpa
IPS=1870Mpa
PS=1770Mpa


FC = Fiber Core

IWRC = Independent Wire Rope Core


Environmental Considerations
IWRC must not be used at temperatures above 400°F.
FC must not be used at temperatures above 180°F.
Fiber core ropes should not be subjected to degreasing solvents

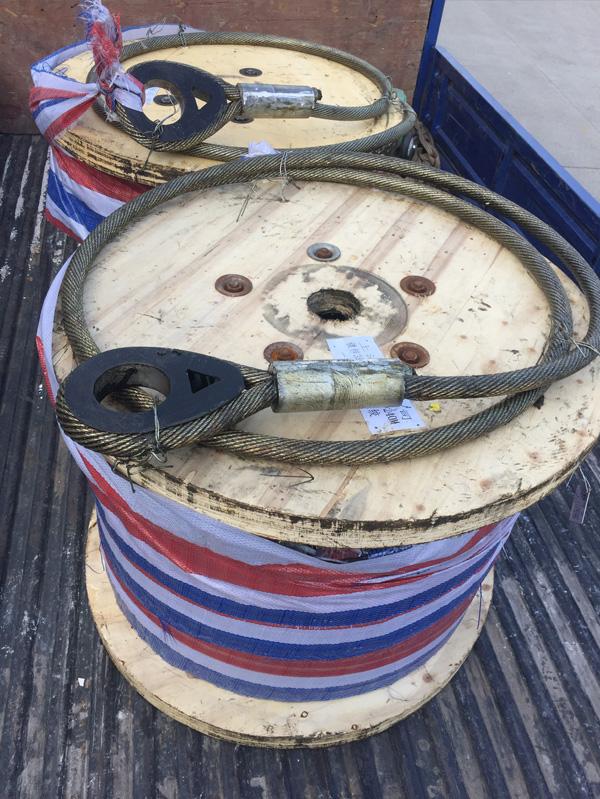

We can also provide Steel Wire Rope Slings
​HOW TO ORDER WIRE ROPE SLINGS

• Define rope diameter. 1-1/4" or 24mm in example
• Rope Structure. 6X37 IWRC EIPS construction for example.
• laid RHLL(Z) or LHLL(S) for cable laid rope.
• Sling Length (length could be 0.5~1000meter, feet and meter both OK)
• Terminations, end with soft eye or Hard eye (Thimble Eye)
