SINOLIFT NPT Serise Capacity Load 1000Kg Rough Terrain Pallet Truck
SINOLIFT NPT Serise Capacity Load 1000Kg Rough Terrain Pallet Truck
Quick Overview

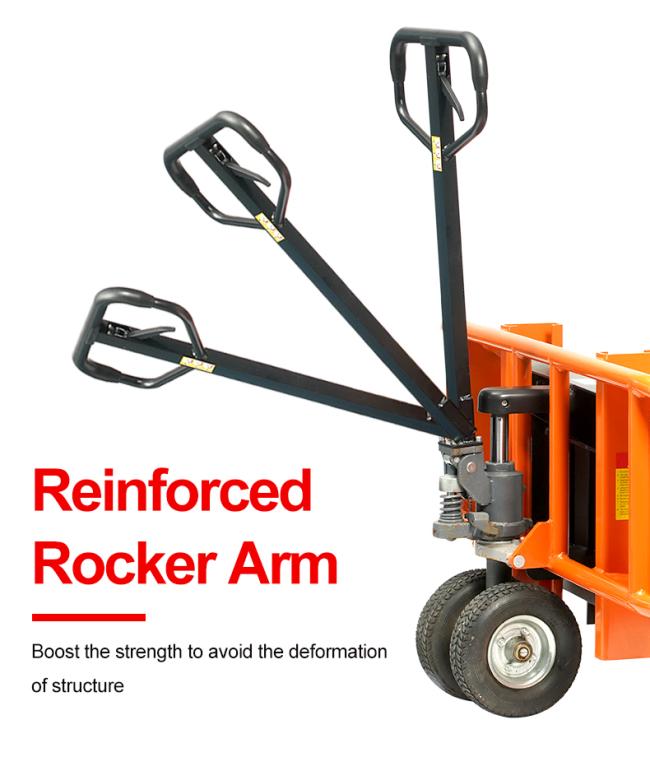

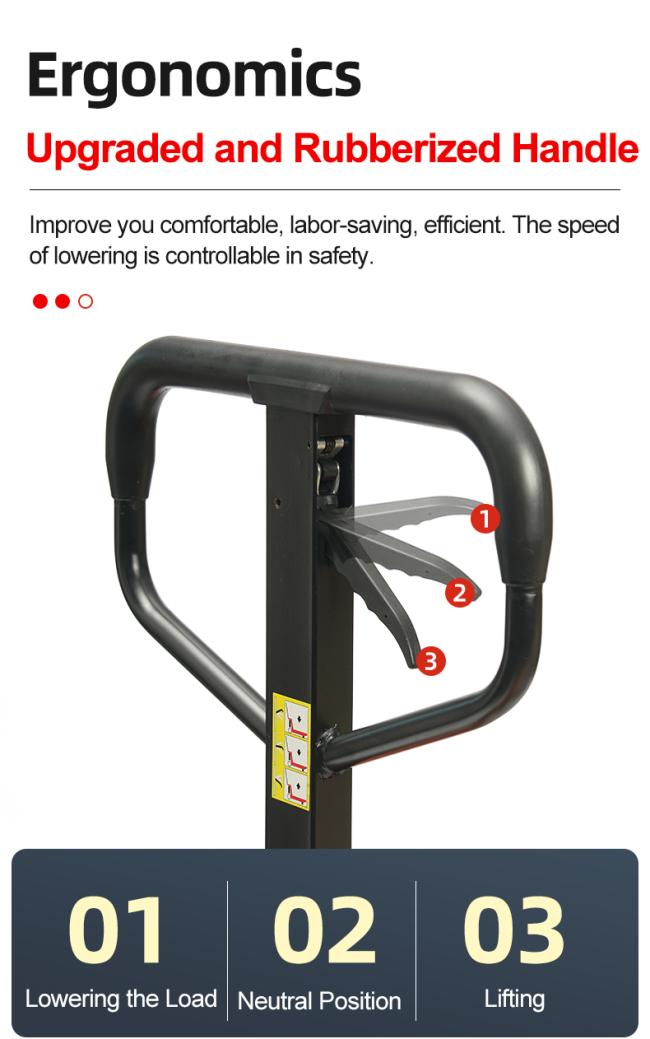

2,000 lb capacity All terrain pallet truck with adjustable 9 ½”-26” wide forks x 32” fork length. Features: adjustable forks, 3-postion handle, pneumatic wheels and 12” horizontal load center at 2,000 lbs.
Product Description
The ALL-T-2 manual push, manual lift pallet jack has a raised height of 9” and 3 1/8” lowered height. Specially designed for construction sites, gravel pits and nurseries. Features pneumatic tires with sealed bearings for outside durability and a 3-postion handle that controls up, down and neutral. Complete with an inside straddle of 50” and an outside straddle is 64”.
| Model | NPT10-2 | ||
| Capacity | Q | kg/lbs | 1000/2200 |
| Fork lowered height | h | mm/inch | 80/3" |
| Fork raised height | H | mm/inch | 180/7" |
| Fork length | LP | mm/inch | 810/32" |
| Overall fork spead width | F | mm/inch | 240-680/9.5"-26" |
| Size of individual fork | s*e | mm/inch | 100*50/4"x2" |
| Usable width between outriggers | D | mm/inch | 1210/48" |
| Wheelbase | L | mm/inch | 850/33.5" |
| The height to the bulk head | E | mm/inch | 525/20" |
| Overall length | A | mm/inch | 1245/49" |
| Overall width | B | mm/inch | 1625/64" |
| Overheight | C | mm/inch | 1280/51" |
| Load wheel | mm/inch | Ø432x130/Ø17"x5" | |
| Steer wheel | mm/inch | Ø267x87/Ø10.5"x3.4" | |
| Net Weight | kg/lbs | 145/320 |
