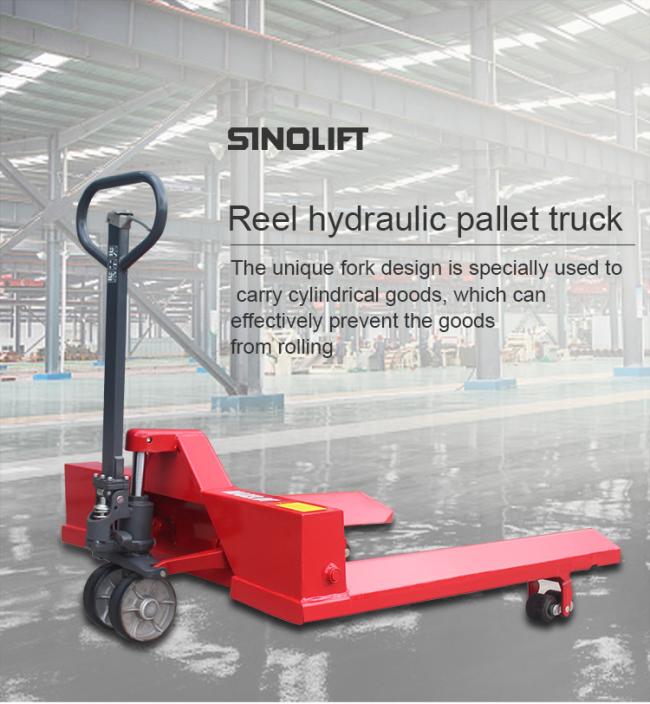

SINOLIFT NPR Serise Capacity Load 2000Kg Reel Hydraulic Pallet Truck
SINOLIFT NPR Serise Capacity Load 2000Kg Reel Hydraulic Pallet Truck

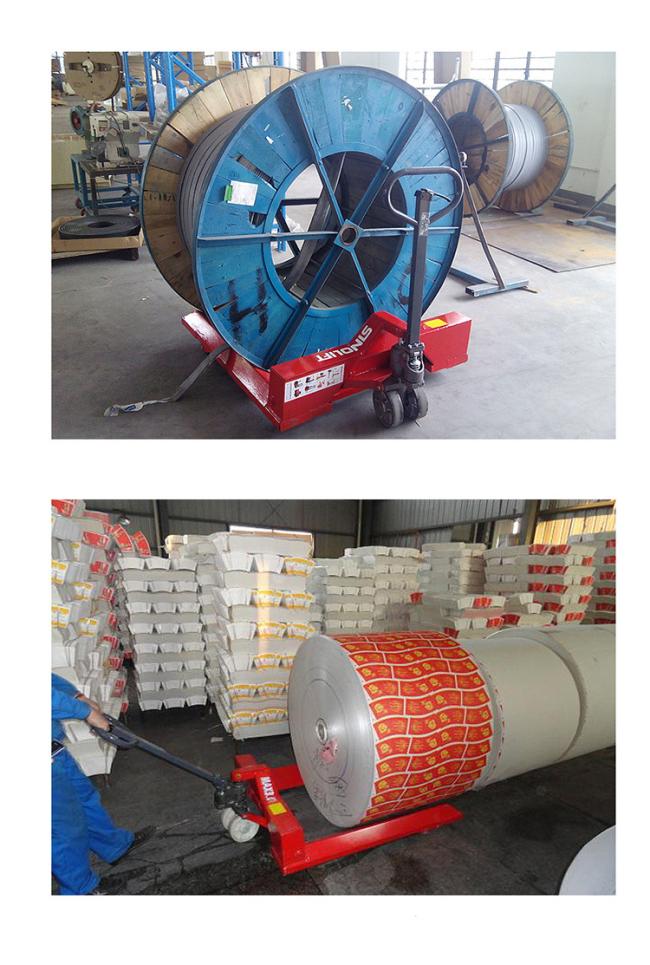

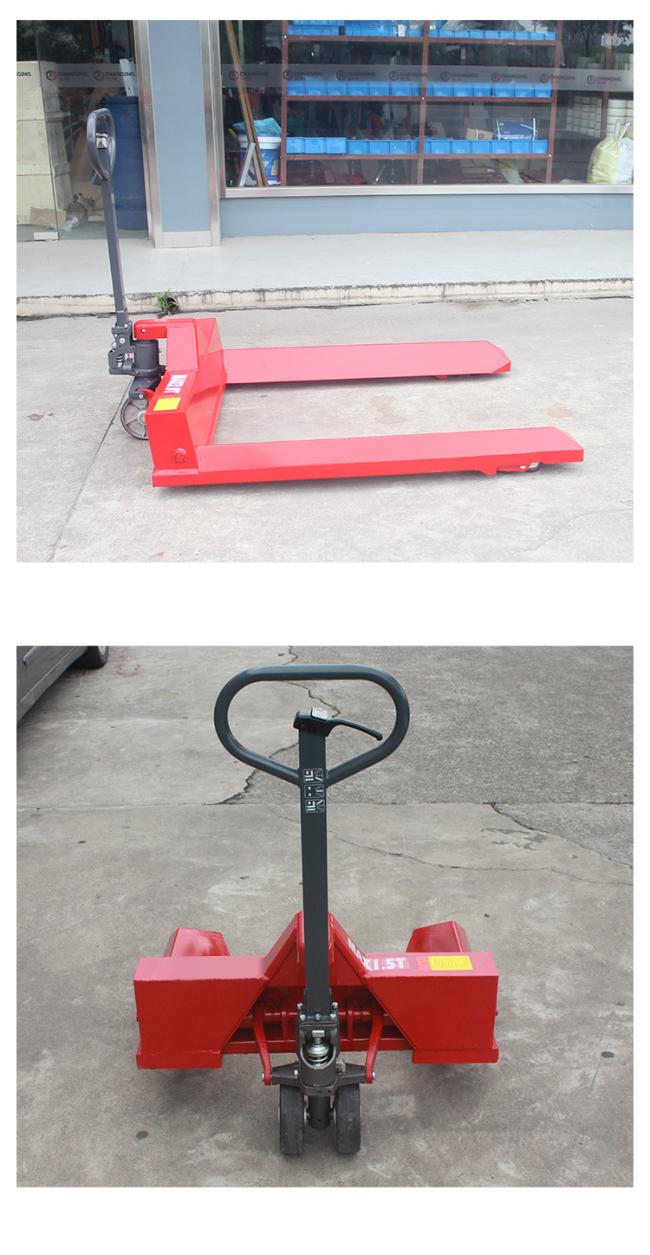

For handling cylindrical loads where the lifting operation is achieved without pallets cylindrical loads can be lifted directly from the floor, transported, and deposited in their un-palletized state. This Roll Pallet truck is mainly designed for carrying horizontal transport loads such as rolls, reels, cable drums etc.
|
Model |
|
NPR20S |
NPR20M |
NPR20L |
NPR20SL |
|
Capacity load |
kg |
2000 |
|||
|
Reel diameter: |
mm |
Ø400-600 |
Ø600-800 |
Ø800-1200 |
Ø1200-1600 |
|
With overall forks: |
mm |
760 |
850 |
1000 |
1150 |
|

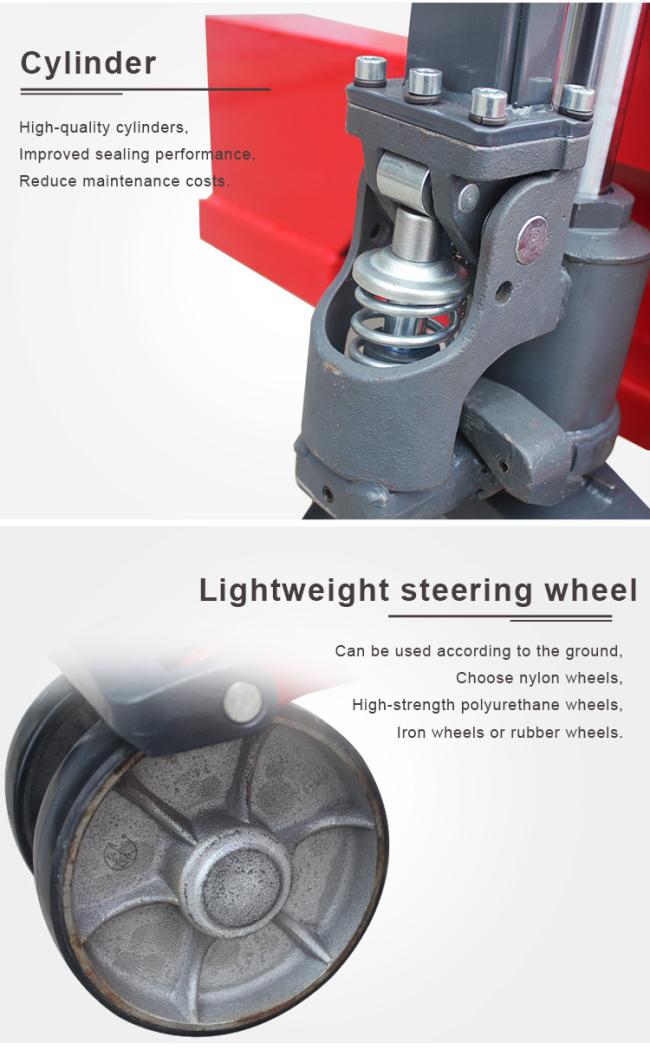

Steering rear wheel |
mm |
Φ200x50或Φ180x50 |
|||
|
Carrying the front wheel (single wheel) |
mm |
Φ78x100 |
|||
|
Carrying front wheels (dual wheels) |
mm |
Φ78x70 |
|||
|
Fork length: |
mm |
800/900/1000/1100/1150/1220--最大到1500 |
|||
|
Dead weight |
kg |
130 |
150 |
155 |
150 |
|
Various sizes and types of roll paper and yarn roll trucks can be designed according to customer requirements |
|||||
