SINOLIFT CBD20Li Full Electric Pallet Truck Capacity 2000kg
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 days
Brand:
Sinolift
Product Description
The CBD20Li is an electric pallet truck powered by a lithium ion battery, making it ideal for efficiently transporting goods over short distances. Unlike traditional manual pallet trucks, the CBD20Li utilizes electric power for both lifting and moving cargo. Its compact fork to face design allows it to easily navigate tight spaces, making it perfect for use in stores, commercial centers, and other confined environments. We support customization needs, if you have any customization needs please feel free to contact us
| Model | CBD20Li-712 | CBD20Li-511 | ||
| Type of Operation | Walkie | Walkie | ||
| Steering Mode | Mechanical | Mechanical | ||
| Load Capacity / Rated Load | Q | kg | 2000 | 2000 |
| Load Center Distance | C | mm | 600 | 2000 |
| Wheel Base | y | mm | 1318 | 1248 |
| Total Weight (Include Battery) | kg | 135 | 130 | |
| Overall Length | L1 | mm | 1686 | 1616 |
| Overall Width | W1 | mm | 685 | 550 |

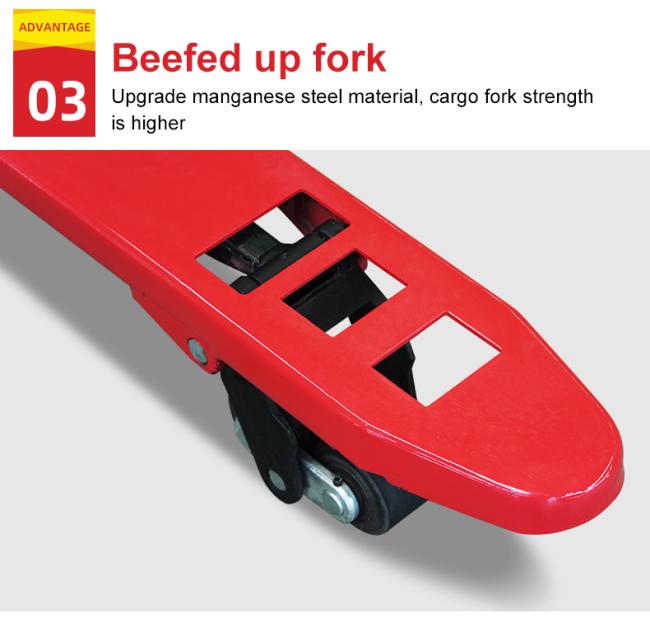

| Fork Dimension | I/e/s | mm | 1220 x150x45 | 1150x150x45 |
| Width of Fork | b2 | mm | 685 | 550 |
| Min. Fork Height | h3 | mm | 80 | 80 |
| Lift Height | h2 | mm | 195 | 195 |
| Ground Clearance at Center of Wheelbase | m1 | mm | 35 | 35 |
| Height of Operating Handlebar (Max.) | h14 | mm | 1245 | 1245 |
| Turning Radius | Wa | mm | 1575 | 1520 |
| Aisle Width for Lengthways (Pallet Size1000*1200) | Ast | mm | 2375 | 2312 |
| Aisle Width for Lengthways (Pallet Size 800*1200) | Ast | mm | 2205 | 2181 |
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | mm | p 78x70 | p 78x70 | |
| Tyre Size (Driving Wheel) | mm | p 160x50 | p 160x50 | |
| Wheels Quantity, Front/Rear(x=Driving Wheel) | 2/1x | 2/1x | ||
| Drive Damping Method | / | / | ||
| Traveling Speed (laden/unladen) | Km/h | 4.3/4.8 | 4.3/4.8 | |
| Lifting Speed (laden/unladen) | mm/s | 20/25 | 20/25 | |
| Lowering Speed (laden/unladen) | ?>1s | ?>1s | ||
| Max.Gradient Performance (laden/unladen) | % | 5/10 | 5/10 | |

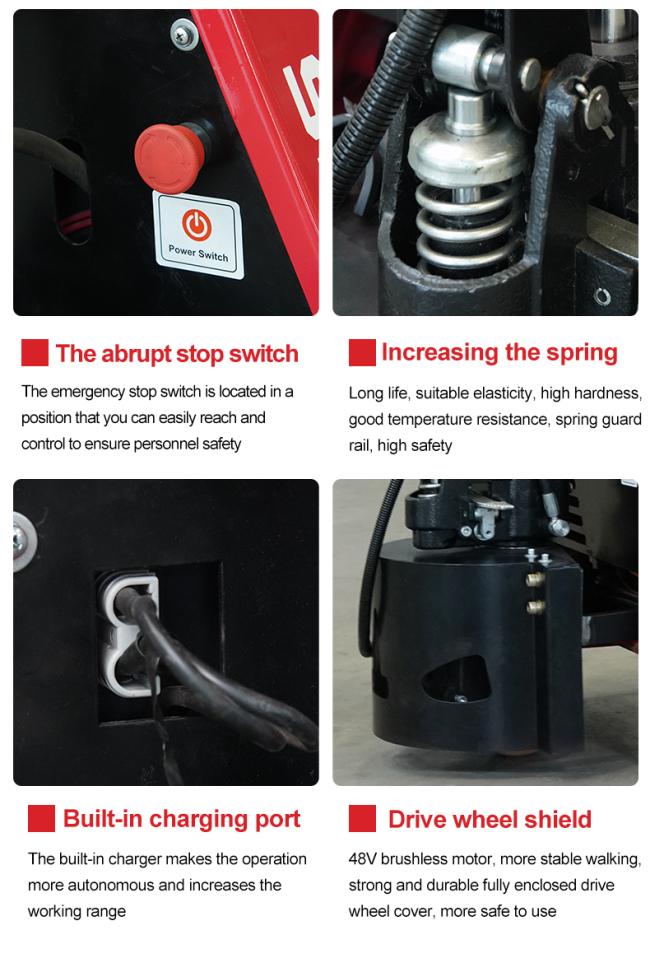

| Paking/Service Brake Type | Electromagnetic | Electromagnetic | ||
| Drive Motor (DC) | Kw | 0.8 | 0.8 | |
| Lifting Motor (DC) | Kw | 0.8 | 0.8 | |
| Battery Voltage/Capacity K5 | V/Ah | 48/16 | 48/16 | |
| Battery Weight | kg | 6.6 | 6.6 |
