Sinolift CDD12M CDD15M Walkie Electric Stacker
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 days
Brand:
SINOLIFT
Product Description

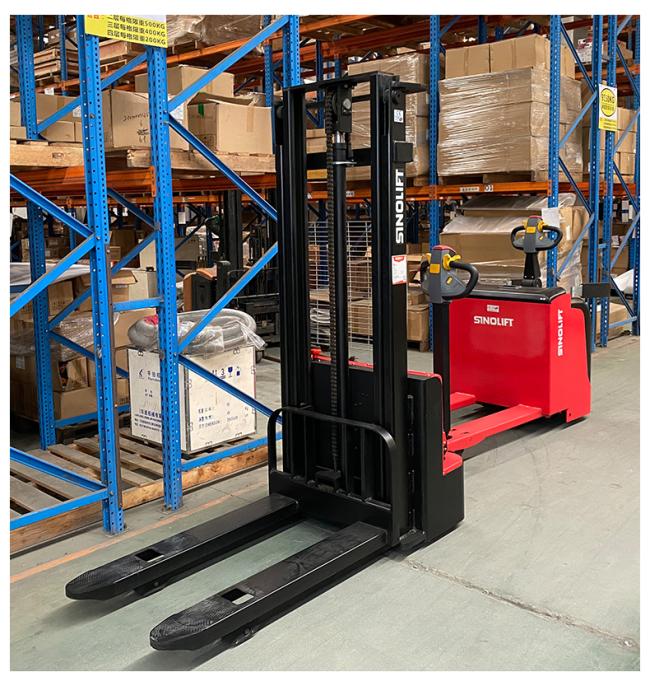

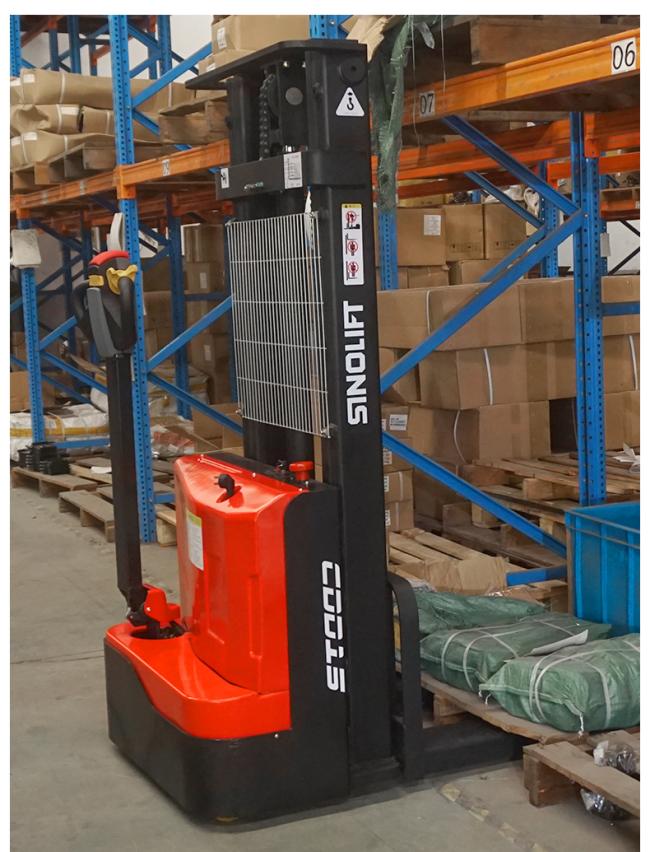

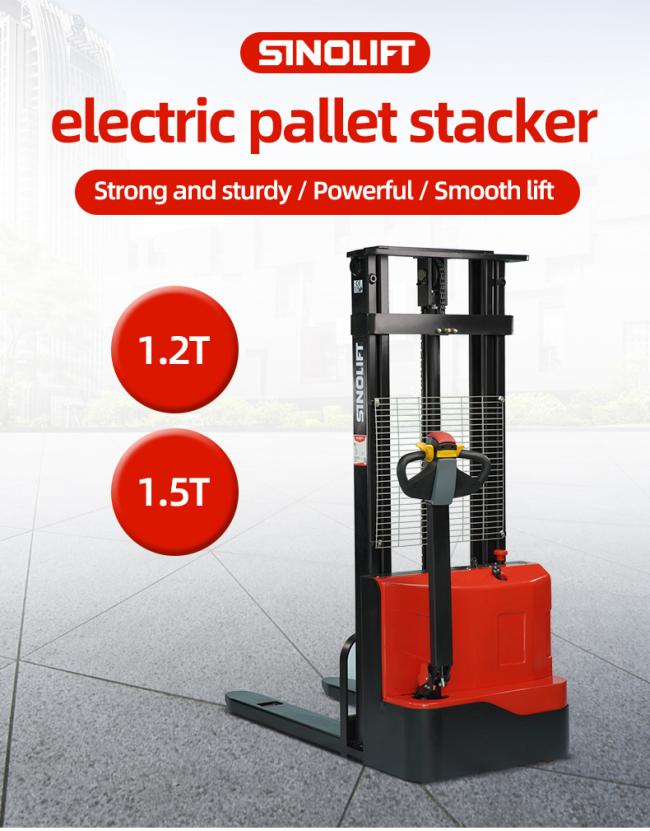

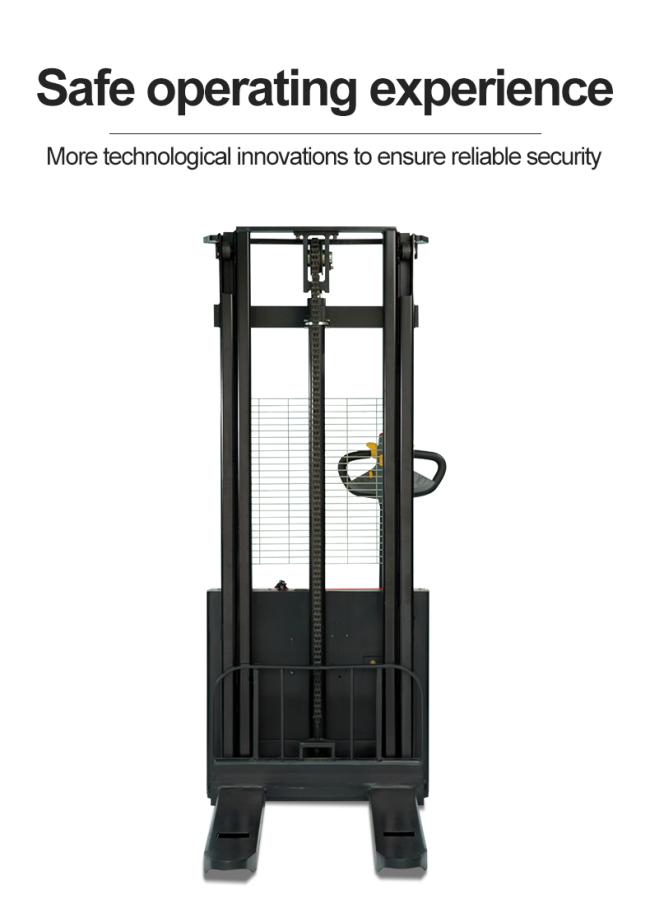

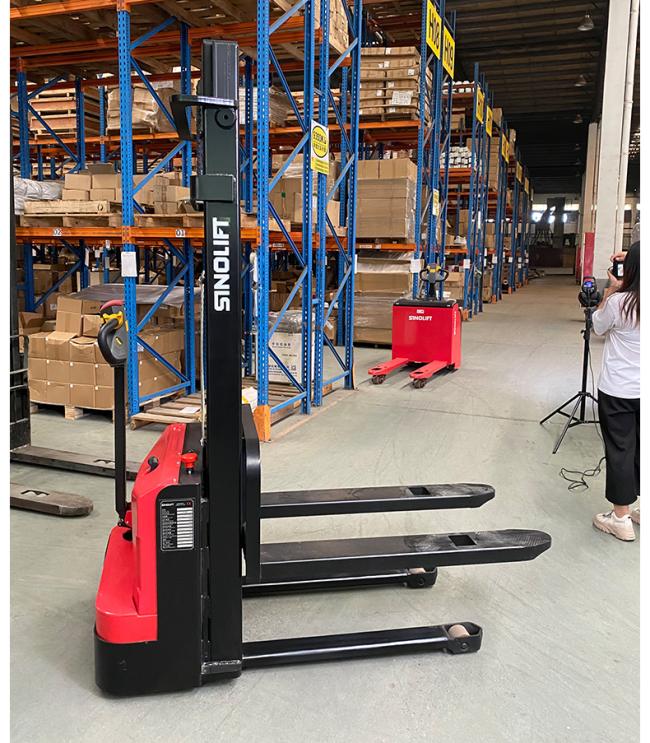

Sinolift CDD12M CDD15M Walkie Electric Stacker
The Sinolift walk-behind electric stacker is a versatile and efficient material handling solution, ideal for small to medium-sized warehouses, factories, and supermarkets. Perfect for low-level stacking, it combines ease of use, steering, and maintenance with a compact design for excellent visibility and maneuverability. With a lifting capacity of 1200 to 1500 kg and a maximum lift height of 143 inches, this durable and cost-effective stacker is suited for a wide range of indoor applications. Its reliable performance enhances productivity and profitability, making it a valuable addition to any operation
| Model | CDD12 | CDD15 | |||

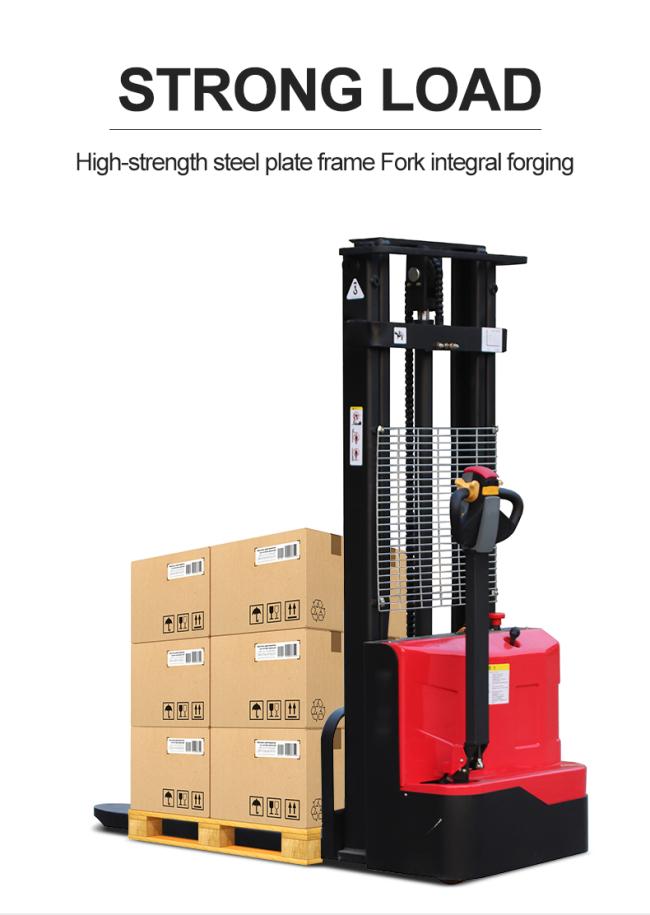

| Performance | Maximum load capacity | kg | 1200 | 1500 | |
| with load center at | Q | mm | 600 | 600 | |
| Weight (with battery) | kg | 620 | 620 | ||

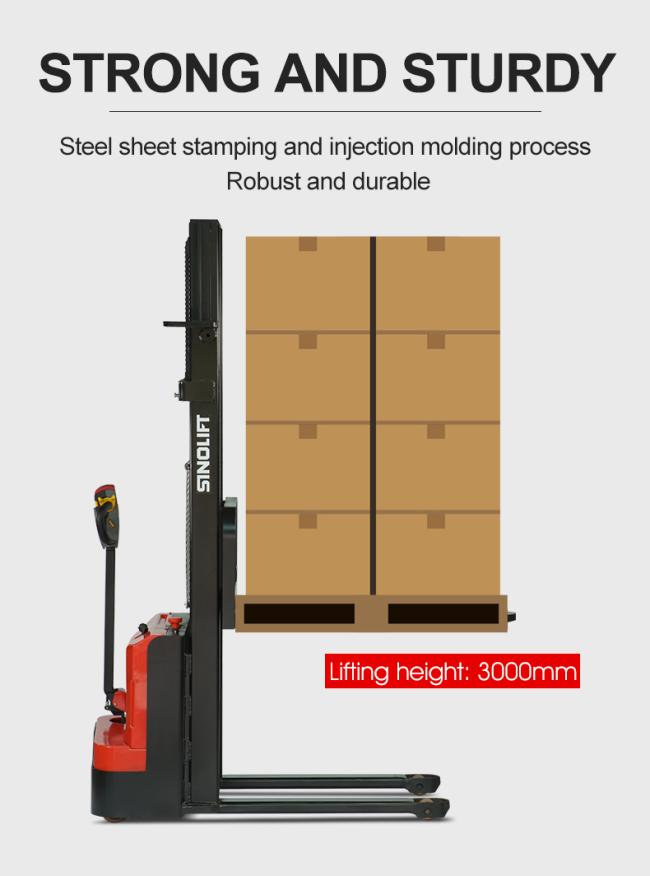

| Maximum lifting height | h1 | mm | 3000 | 3000 | |
| Travel speed (without load) | km/h | 3.3 | 3.3 | ||
| Travel speed (with load) | km/h | 3.2 | 3.2 | ||
| Lifting speed (without load) | mm/s | 135 | 135 | ||
| Lifting speed (with load) | mm/s | 100 | 100 | ||
| Lowered speed (without load) | mm/s | 150 | 150 | ||
| Lowered speed (with load) | mm/s | 155 | 155 | ||
| Ascend slope ability (without load ) | % | 5 | 5 | ||
| Ascend slope ability (with load ) | % | 3 | 3 | ||
| Overall length of frame | L | mm | 1740 | 1740 | |

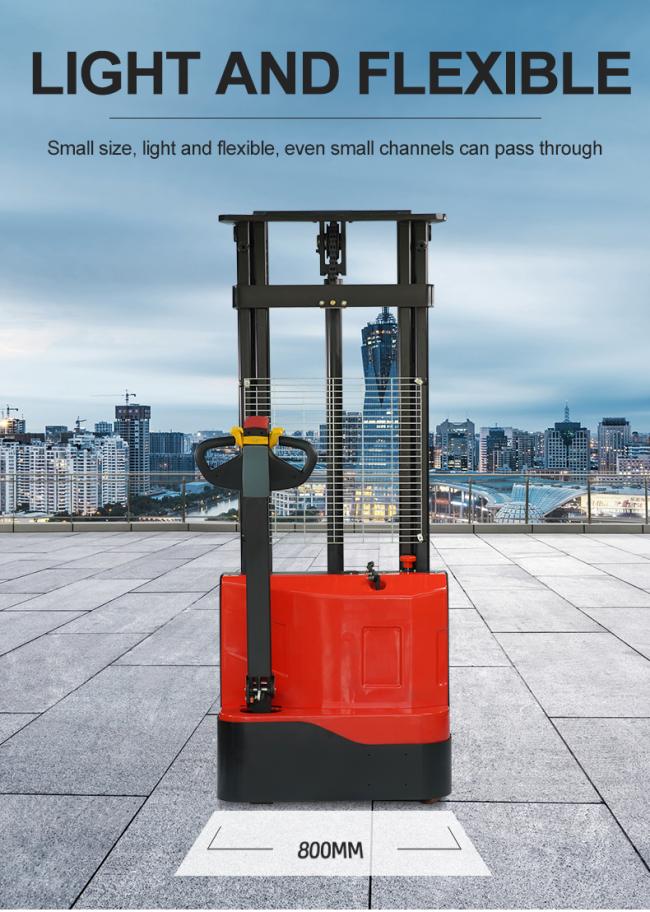

| Dimensions | Overall width of frame | B | mm | 800 | 800 |
| Wheelbase | Y | mm | 1215 | 1215 | |
| Fork length | mm | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 560/685 | 560/685 | |
| Fork inside width | B2 | mm | 240/365 | 240/365 | |
| Fork thickness | mm | 60 | 60 | ||
| Min frounf height | mm | 30 | 30 | ||
| Min intersecting aisle width 1000*1200 | mm | 2265 | 2265 | ||
| Fork lowered height | S | mm | 85 | 85 | |
| Minimum turning radius | Wa | mm | 1415 | 1415 | |
| Tire | Front wheel | mm | Ø80*70 | Ø80*70 | |
| Drive wheel | mm | 210*70 | 210*70 | ||
| Caster wheel | mm | 115*55 | 115*55 | ||
| Wheel material | polyurethane | ||||

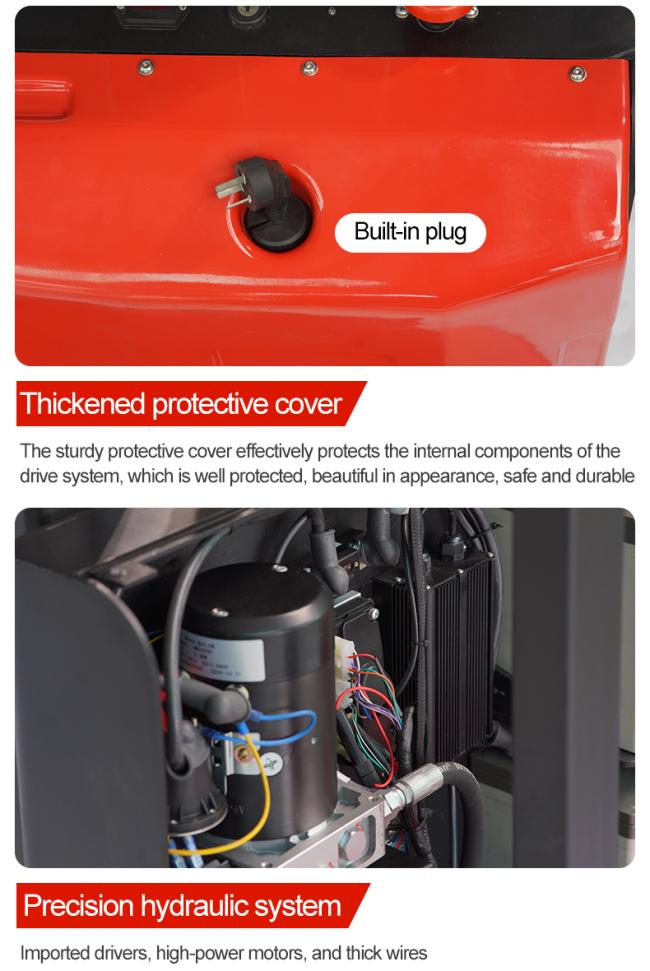

| Electrical components | Drive motor type | DC series motor | |||
| Rated output | kw | 0.75 | 0.75 | ||
| Hoist motor type | DC series motor | ||||
| Rated output | kw | 2.2 | 2.2 | ||

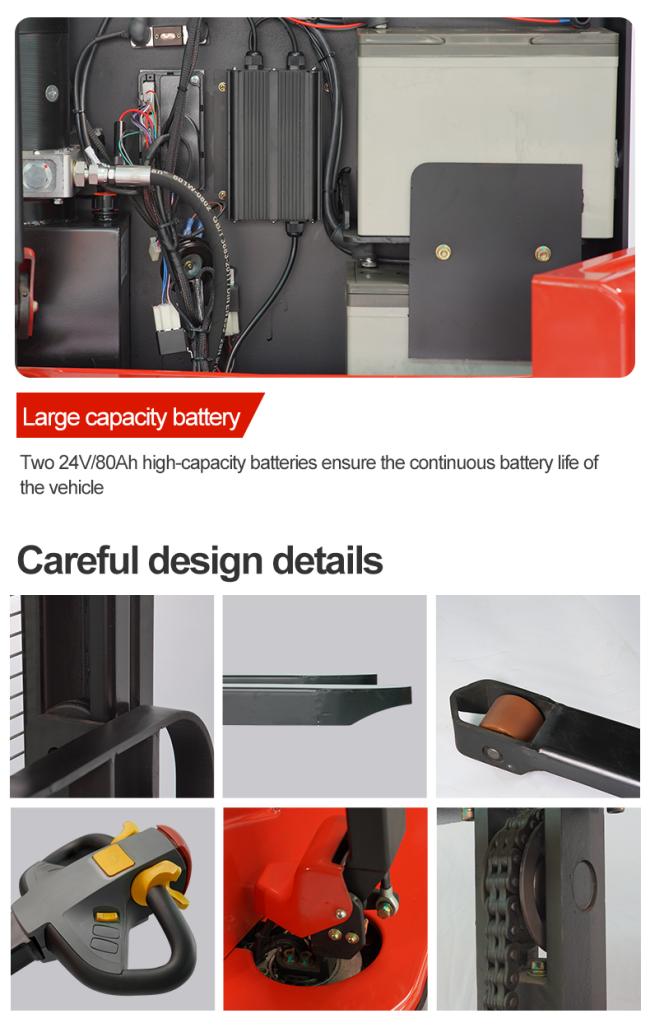

| battery | Voltag | V | 24 | 24 | |
| Capacity | AH | 100 | 100 | ||
| Weight | kg | 35*2 | 35*2 | ||
