Sinolift China NAG Heavy Duty Design Galvanized And Stainless Steel Hand Pallet Jack Or Truck
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 days
Brand:
Sinolift
Product Description

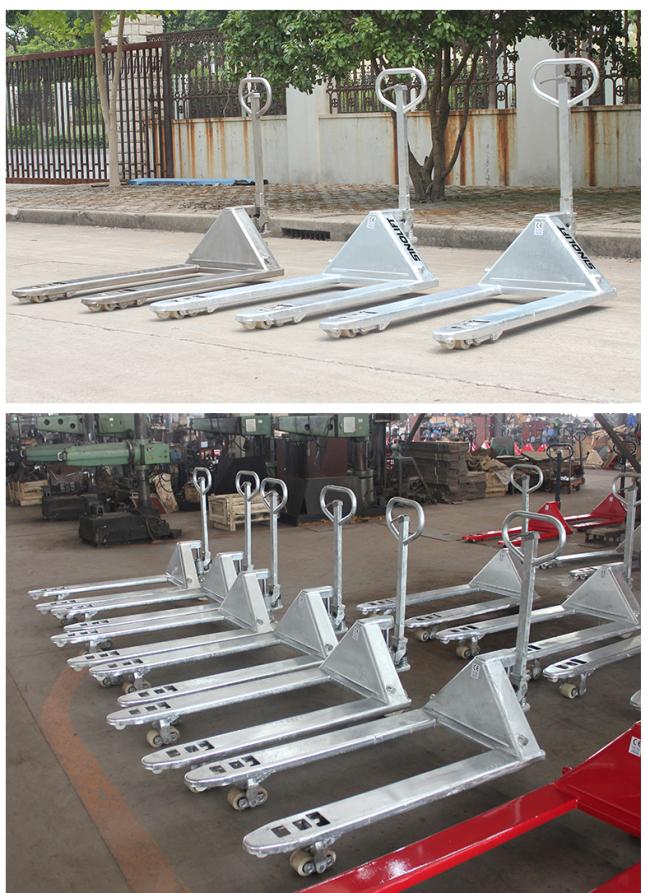

The galvanized and stainless steel hand pallet trucks are designed for excellent corrosion resistance, making them ideal for use in humid environments or areas where high hygiene standards are required.
· Sturdy pallet truck featuring a tray head and reinforced side sills.
· Hot-dip galvanized finish for enhanced long-term durability.
· Equipped with stainless steel bearings, axles, screws, and bolts.
| Model | NAG Series | |
| Rated Capacity | kg | 5000/2000/2500/3000/5000 |
| Width over forks | mm | 460/520/540/550/680/685 |
| Steering Wheel | mm | 180x62 NYLON or PU |
| Fork Length | mm | 810/980/1070/1150/1220 |
| Load Wheel | mm | Φ78*70(Tandem) |
| Max.Fork Height | mm | 200 |
| Min.Fork Height | mm | 80 |
| Overall Length | mm | 1500 |
| Fork Width | mm | 150 |
| Width inside forks | mm | 160,220,240,250 |
| Under Clearance | mm | 40 |
| Strokes | 50 | |
| Over Height | mm | 1200 |
| Steer Angle | 230deg | |
| Drive Unit Length | mm | 370 |
| Weight | kg | 78 |
