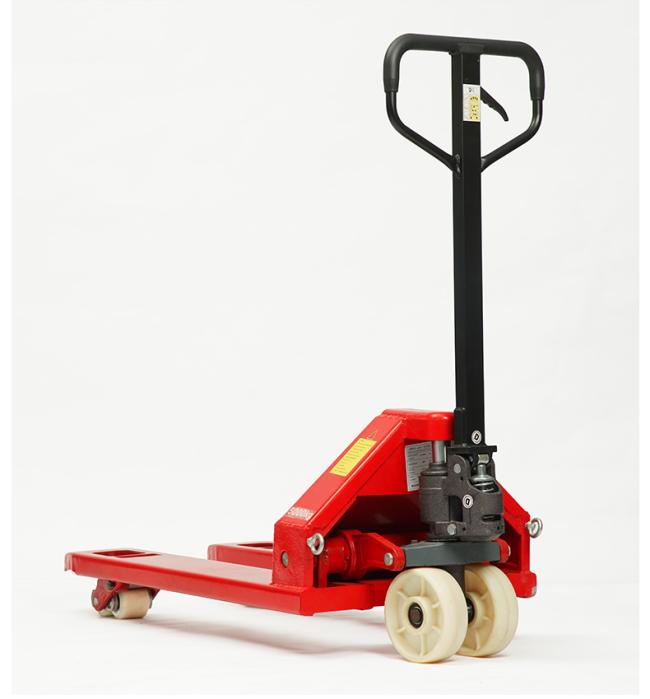

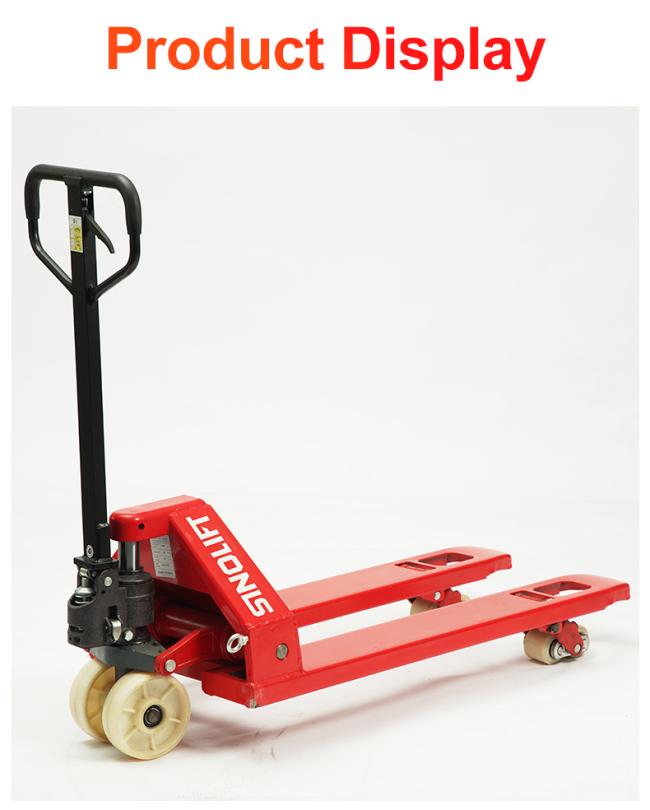

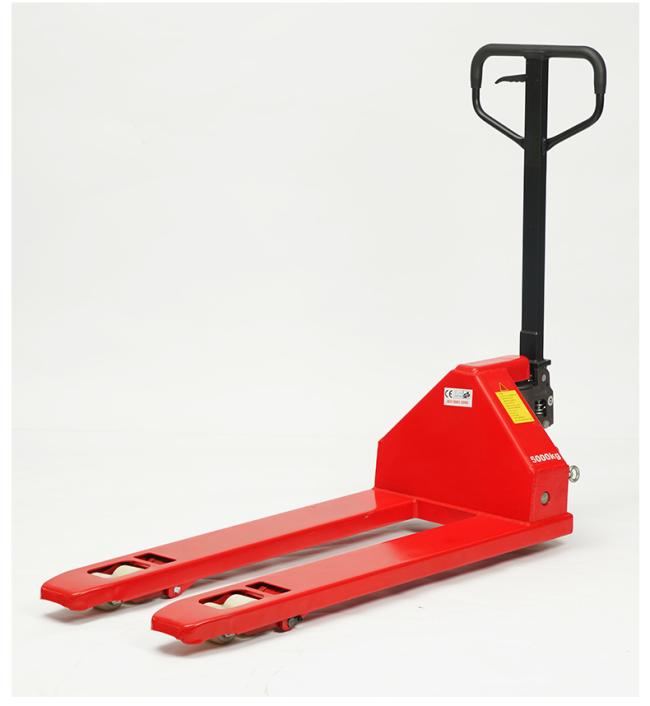

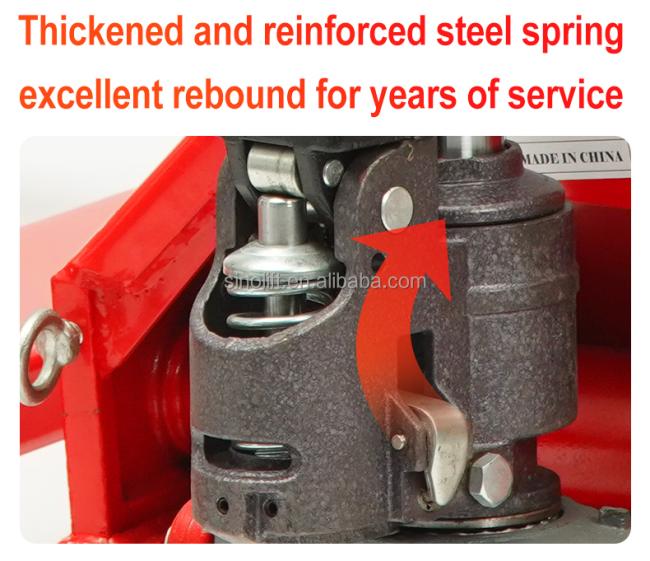

Sinolift China NAV50 Heavy Duty Design Hand Pallet Jack Or Truck With Thickened Steel Easy Handling/High-Quality Oil Pump

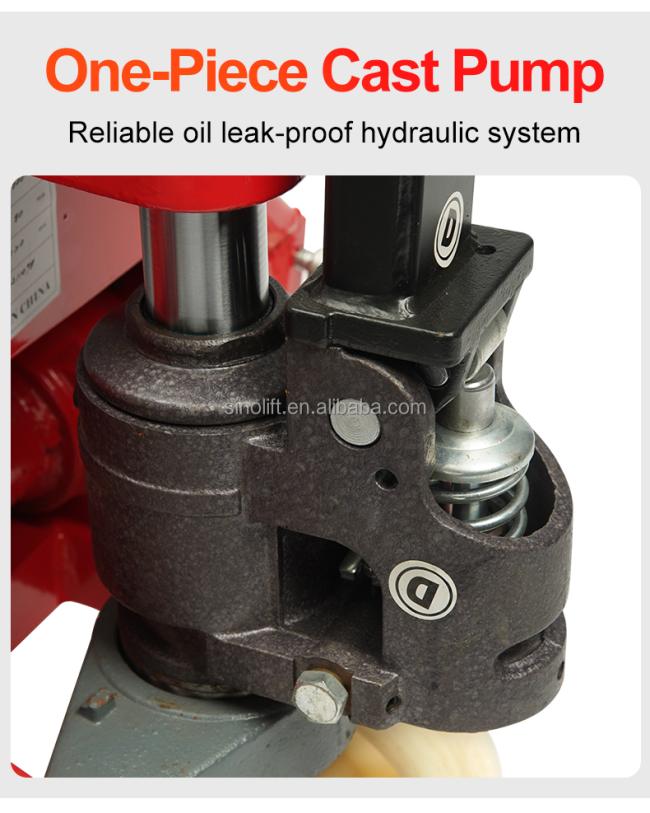

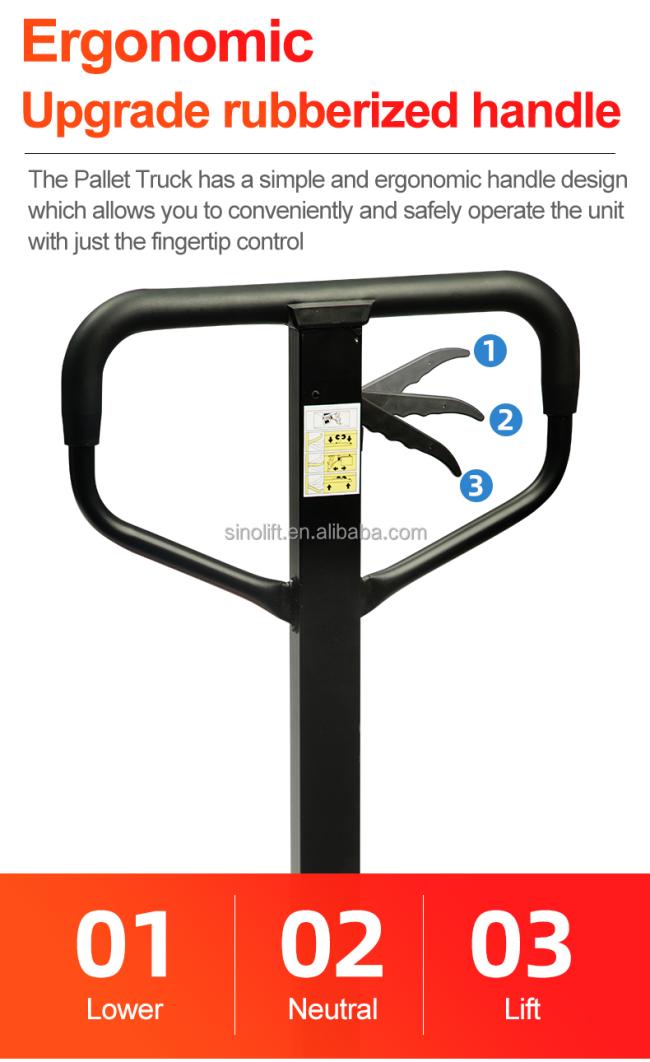

This pallet truck is our top-selling model, engineered for enduring, heavy-duty performance. Having sold thousands over the years, it features a robust construction, maintenance-free rollers, an ergonomic handle, and a reliable pump, making it a fantastic option. Additionally, it provides a variety of steer and load wheels to meet different requirements.
· This highly dependable pallet truck can be equipped with a choice of three brake types.

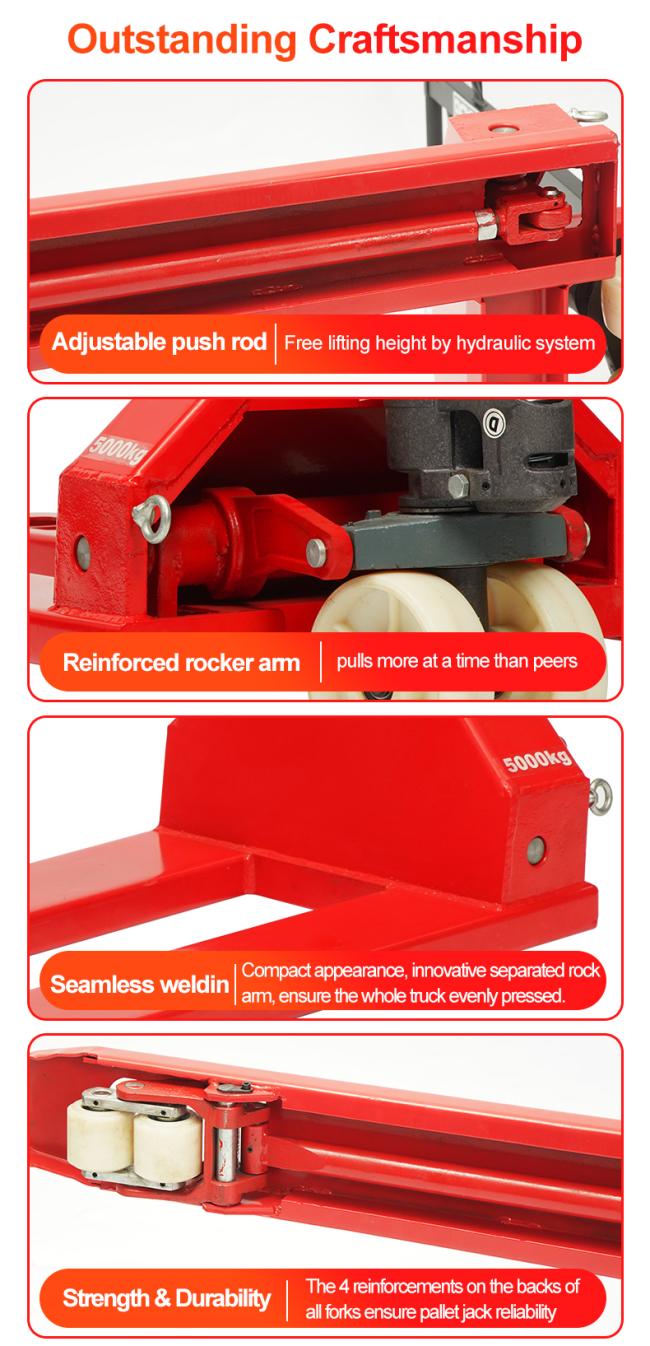

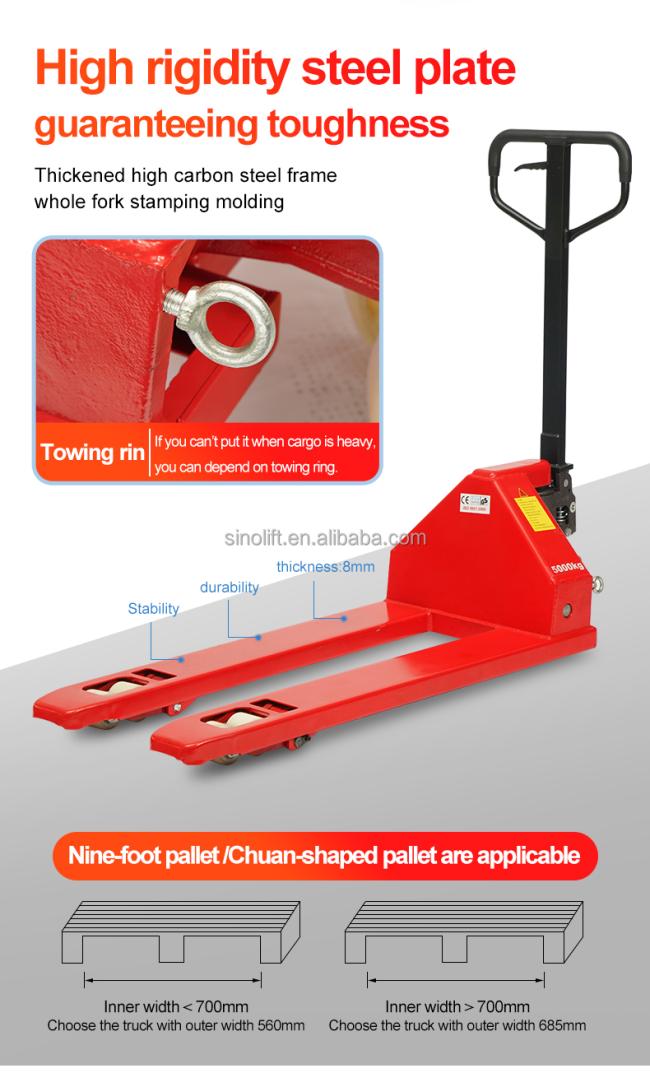

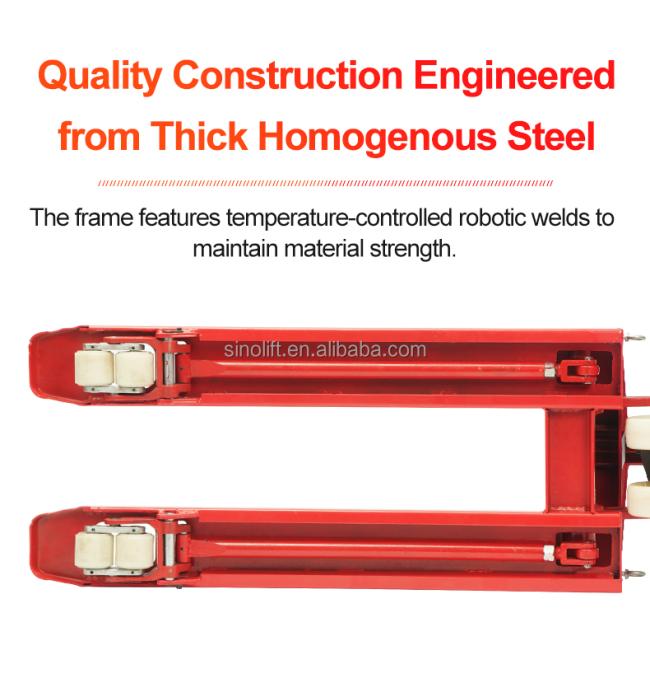

· The reinforced chassis, strengthened at the 'A' frame and along the legs, ensures durability and stability.
· The trucks carry the CE mark and comply with all current safety regulations applicable to hand pallet trucks.
| Model | NAV50-510 | NAV50-712 | NAV50-715 | NAV50-718 | NAV50-720 | |
| Load Capacity | kg | 5000 | 5000 | 5000 | 5000 | 5000 |
| Load Capacity | mm | 500 | 500 | 600 | 600 | 600 |
| Steering Wheel | mm | Φ180*65 | Φ180*65 | Φ180*65 | Φ180*65 | Φ180*65 |
| Load Wheel | mm | Φ78*70 | Φ78*70 | Φ78*70 | Φ78*70 | Φ78*70 |
| Max.Fork Height | mm | 200 | 200 | 200 | 200 | 200 |
| Min.Fork Height | mm | 85 | 85 | 85 | 85 | 85 |
| Overall Length | mm | 1534 | 1604 | 1884 | 2184 | 2384 |
| Fork Size | mm | 54/165/1070 | 54/165/1200 | 54/165/1500 | 54/165/1800 | 54/165/2000 |
| Width over forks | mm | 540 | 685 | 685 | 685 | 685 |
| Turning radius | mm | 1249 | 1319 | 1609 | 1919 | 2029 |
| Self Weight | kg | 110 | 123 | 148 | 159 | 167 |
